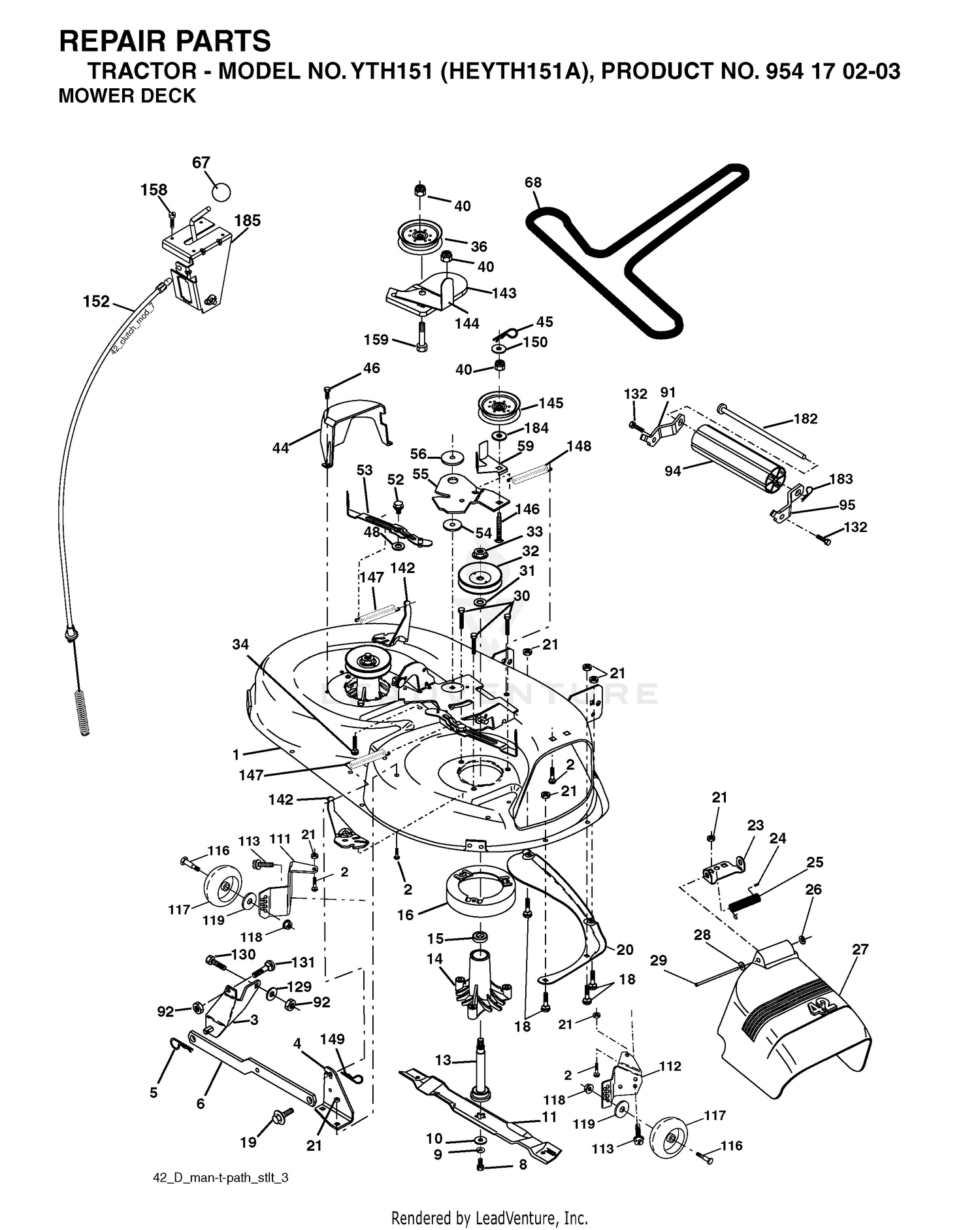

| Ref | Part Number | Description |
|---|
| 1 |
1-806800 |
PIN-COTTER Price: $1.35 |
| 1 |
532176027 |
DECK.SVC.42".BLACK This part replaces 532165892. Price: $329.99 |
| 2 |
13-2930 |
DISCONTINUED Price: Call Us |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
100-2400 |
WASHER Price: $2.69 |
| 4 |
532165460 |
BRACKET SWAY BAR 42" DECK Price: $11.99 |
| 5 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
107-3041 |
WASHER-FLAT Price: $0.54 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
119-6242 |
PIN-HINGE Price: $27.18 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
120-6141-01 |
BRACKET-BLOWER, RH Price: $84.52 |
| 12 |
120-6142-01 |
BRACKET-BLOWER, LH Price: $84.52 |
| 13 |
120-6170 |
HOPPER ASM Price: Call Us |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
120-6175 |
DOOR-HOPPER Price: $2,519.65 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
121-2654-01 |
SUPPORT-HOPPER Price: $86.76 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
321-8 |
SCREW-HH Price: $0.34 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
323-7 |
SCREW-HH Price: $0.65 |
| 18 |
325-6 |
SCREW-HH Price: $1.42 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
325-7 |
SCREW-HH Price: $1.53 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
2412-133 |
CLAMP-R Price: $3.19 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532177563. Price: $4.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK This part replaces 532171859. Price: $34.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 48 |
532133944 |
WASHER Price: $3.99 |
| 52 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 53 |
531168401 |
SERVICE KIT ARM BRAKE ASSY This part replaces 532184907. Price: $19.99 |
| 54 |
532178515 |
WASHER Price: $5.99 |
| 55 |
531166601 |
SERVICE KIT ARM ARM IDLER 42" This part replaces 532155046. Price: $14.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 68 |
532180215 |
NEEDS DESCRIPTION Price: Call Us |
| 91 |
531151201 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532180532. Price: $4.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531150601 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532180533. Price: $4.99 |
| 111 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532179292. Price: $32.99 |
| 112 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532179293. Price: $32.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
532165746 |
WHEEL.GAUGE.STANDARD Price: $12.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 129 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 130 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 131 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 142 |
529845801 |
SERVICE KIT ARM SPRING BRAKE M This part replaces 532165890. Price: $5.99 |
| 143 |
529844301 |
SERVICE KIT BRACKET This part replaces 532157109. Price: $7.99 |
| 144 |
532173441 |
KEEPER BELT 42" CLUTCH This part replaces 532158634. Price: $6.99 |
| 145 |
532173437 |
PULLEY.IDLER.FLAT.PLATED This part replaces 532165888. Price: $24.99 |
| 146 |
532173443 |
BOLT CARRIAGE IDLER This part replaces 532171977. Price: $4.99 |
| 147 |
532179748 |
SPRING Price: $4.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 151 |
532169670 |
BRACKET.CLUTCH.CABLE Price: $17.99 |
| 152 |
532181555 |
CABLE.CLUTCH.42" Price: $49.99 |
| 153 |
596140201 |
Washers This part replaces 532169674. Price: $2.99 |
| 154 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 155 |
532169671 |
SPRING RETENTION LEVER Price: $4.99 |
| 156 |
532169672 |
SPACER.CLUTCH.CABLE Price: $4.99 |
| 157 |
532169669 |
ROD CLUTCH CABLE 3/8" Price: $27.99 |
| 158 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 159 |
596987501 |
Bolts This part replaces 872140614. Price: $3.99 |
| 182 |
532179126 |
ROD ROLLER NOSE STANDARD Price: $7.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
