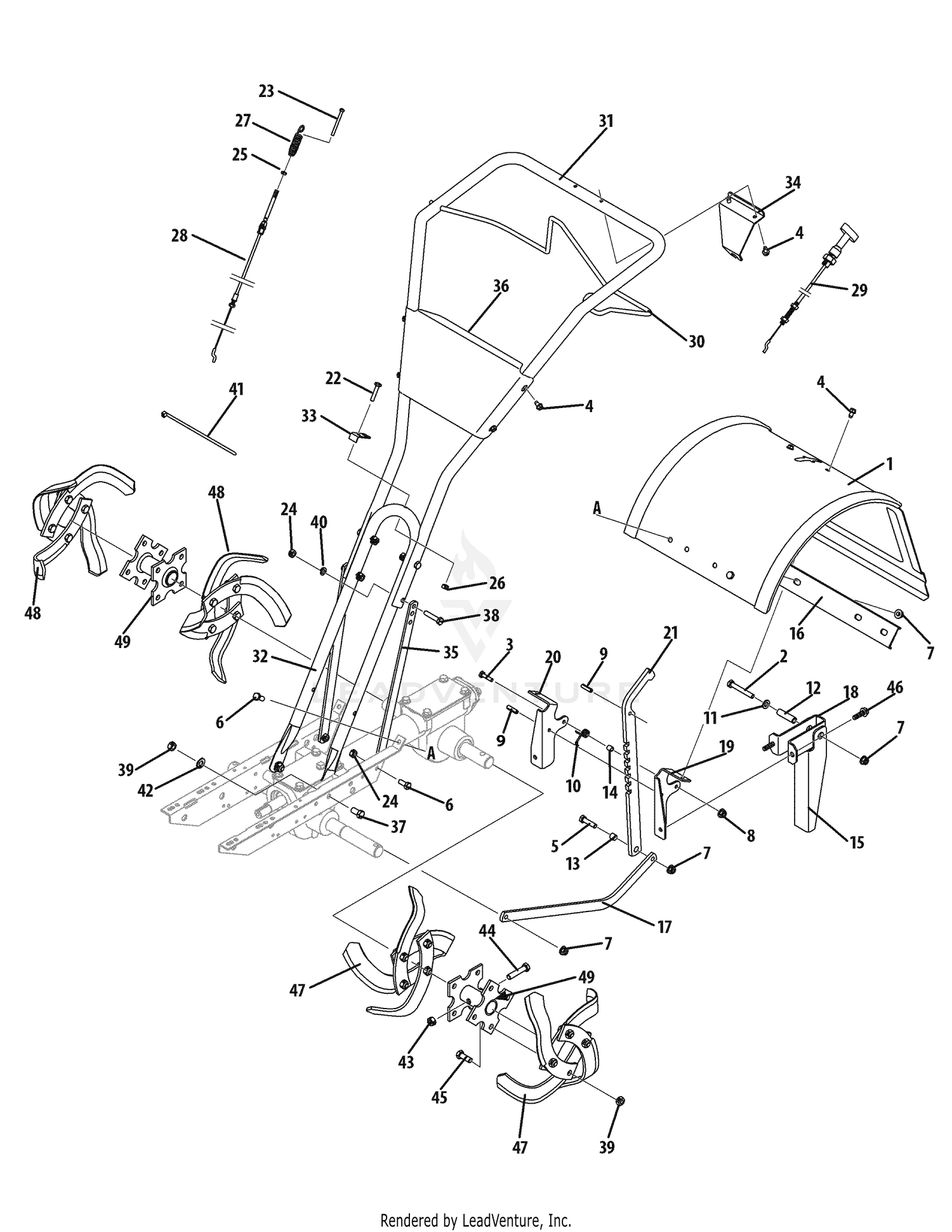

| Ref | Part Number | Description |
|---|
| 2 |
710-0395 |
Hex Screw, 5/16-18 x 2.25 Price: $4.08 |
| 3 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 4 |
710-0599 |
Self-Tapping Screw, 1/4-20 x 1/2 Price: $3.86 |
| 5 |
710-0874 |
Hex Head Screw, 5/16-18 x 1-1/4 Price: $6.01 |
| 6 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 7 |
712-04063 |
Nylon Hex Lock Nut, 5/16-18 Price: $3.56 |
| 8 |
712-04064 |
Nylon Hex Lock Nut, 1/4-20 Price: $3.64 |
| 9 |
715-0108 |
Spirol Pin Price: $4.38 |
| 10 |
732-04320 |
Depth Regulator Spring Price: $3.85 |
| 11 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 12 |
750-04149 |
SPLIT SPACER Not Available Price: |
| 13 |
750-04160 |
Bushing Price: $1.12 |
| 14 |
750-04556 |
Spacer Price: $6.01 |
| 15 |
786-04092 |
Reverse Stop Arm Price: $22.49 |
| 16 |
786-04098 |
Channel Support Bracket Price: $23.22 |
| 17 |
786-04104 |
Drag Bar Price: $29.23 |
| 18 |
786-04191-0637 |
HOOD STOP BRACKET Not Available This part replaces 786-04191. Price: |
| 19 |
786-04290 |
Hood Bracket, Left Hand Price: $18.93 |
| 20 |
786-04291 |
HOOD BRACKET (RH) Not Available Price: |
| 21 |
786-04292A-0638 |
Depth Adjuster Bar This part replaces 786-04292. Price: $58.80 |
| 22 |
710-0106 |
Hex Hd. Screw, 1/4-20 x 1-1/4 Price: $3.66 |
| 23 |
710-04163 |
SCREW #10-24 x 2 Not Available Price: |
| 24 |
712-3009 |
Hex Lock Nut, 5/16-18 Price: $5.99 |
| 25 |
712-0121 |
Hex Nut, #10-24 Price: $3.75 |
| 26 |
712-0291 |
Hex Lock Nut, 1/4-20 Price: $3.93 |
| 27 |
732-04185 |
Forward Clutch Spring Price: $6.21 |
| 28 |
946-04208 |
DRIVE CABLE This part replaces 746-04208. Price: $35.54 |
| 30 |
1916106001 |
FORWARD CLUTCH BAIL Not Available This part replaces 747-04210. Price: |
| 31 |
749-04084-0638 |
UPPER HANDLE Not Available This part replaces 749-04084. Price: |
| 32 |
749-04208 |
Lower Handlebar Price: $64.73 |
| 33 |
786-04106 |
CONDUIT MOUNT TAB: Not Available Price: |
| 35 |
786-04188-0638 |
Support Handle Bracket This part replaces 786-04188. Price: $15.43 |
| 36 |
786-04200-0638 |
Handle Panel This part replaces 786-04200. Price: $24.75 |
| 37 |
710-0216 |
Hex Screw, 3/8-16 x 3/4 Price: $3.93 |
| 38 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 39 |
712-3000 |
Hex Lock Nut, 3/8-16 Price: $3.90 |
| 40 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 41 |
725-0157 |
Cable Tie Price: $3.46 |
| 42 |
736-3050 |
Flat Washer, 3/8 Price: $3.90 |
| 43 |
712-04065 |
Flange Lock Nut, 3/8 -16 Price: $3.68 |
| 44 |
710-0347 |
Hex Hd. Screw, 3/8-16 x 1-3/4 Price: $4.39 |
| 45 |
710-0514 |
Hex Hd. Screw, 3/8-16 x 1 Price: $3.78 |
| 46 |
710-04048 |
Flange Screw, .312-18 x 1.00 Price: $4.19 |
