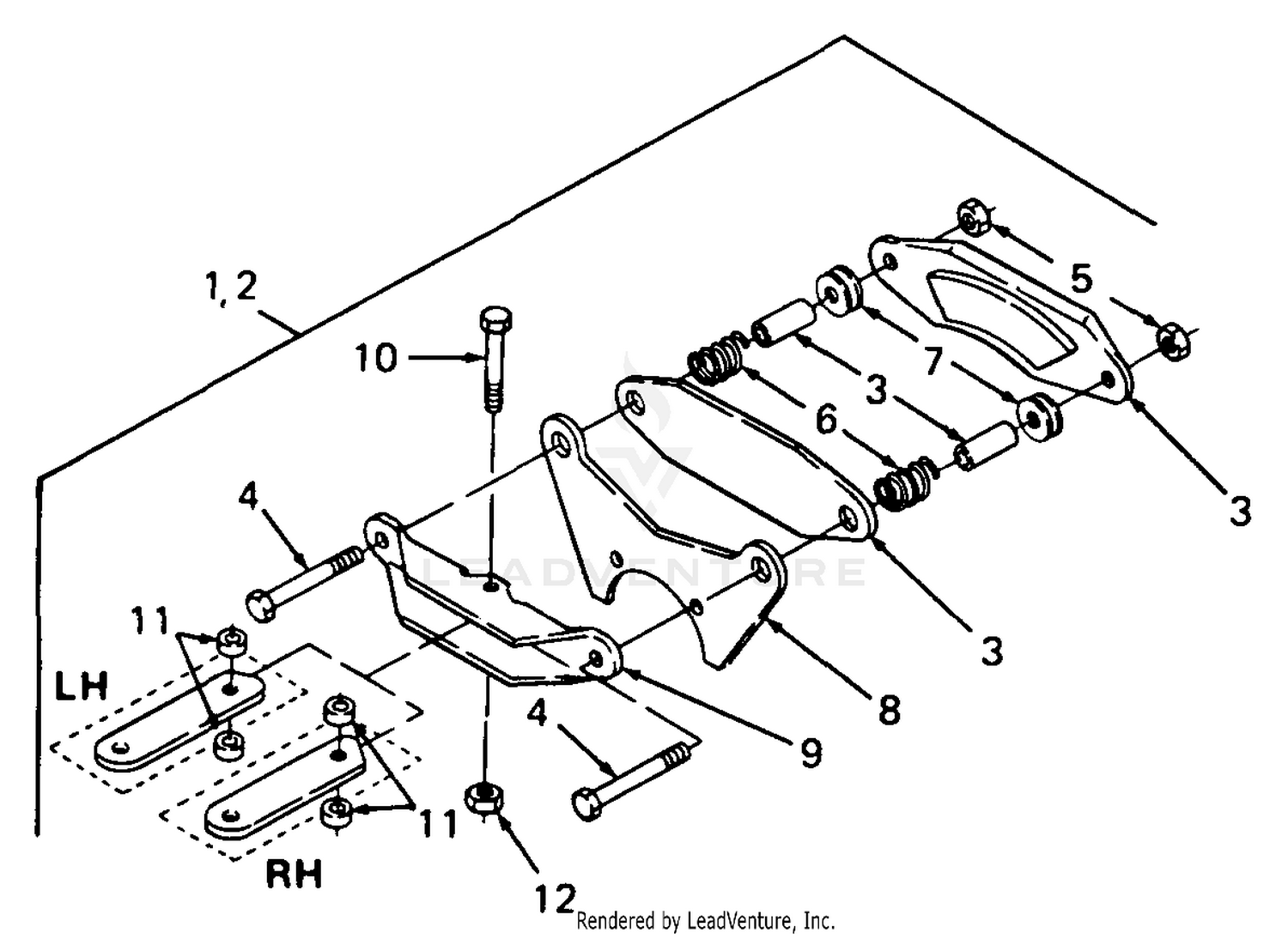

| Ref | Part Number | Description |
|---|
| 1 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 1 |
661-3001 |
BRAKE ASSEMBLY (RH) Not Available Price: |
| 2 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 2 |
661-3002 |
BRAKE ASSEMBLY (LH) Not Available Price: |
| 3 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 4 |
710-0369 |
Screw, Hex Cap, 3/8-24 x 2.50 Lg GR5 Price: $5.59 |
| 4 |
874930568 |
Bolt, Hex 5/16-18 x 4-1/4 Price: $5.99 |
| 5 |
532154734 |
SCREW, SHIFT LEVER Price: $2.66 |
| 5 |
712-3054 |
Nut, Hex Lock, 3/8-24 GR5 Price: $3.90 |
| 6 |
532110111 |
LEVER ASM CRT Price: $11.99 |
| 6 |
932-3042 |
Comp. Spring, .515 x .641 x .95 This part replaces 732-3042. Price: $4.29 |
| 7 |
736-0344 |
Washer, Flat, .390 x 1.0 x .030 Thk HDN Price: $4.13 |
| 7 |
872110404 |
BOLT Price: $7.99 |
| 8 |
532008700 |
PANEL.INDICATOR.SHIFT.BLACK Price: $3.99 |
| 8 |
703-1787 |
BRACKET-BRAKE MTG Not Available Price: |
| 9 |
817021008 |
SCREW This part replaces 532086777. Price: $3.99 |
| 10 |
532009484 |
CONDUIT.CLIP.PLATED Price: $4.99 |
| 10 |
710-3133 |
SHOULDER SCREW Not Available Price: |
| 11 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 11 |
750-3069 |
SPACER Not Available Price: |
| 12 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 13 |
823230506 |
SET SCREW Price: $2.99 |
| 14 |
532120938 |
SPACER Price: $2.70 |
| 15 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 16 |
532145102 |
SHEAVE, TRANSMISSION Price: $59.99 |
| 17 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 19 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 20 |
532110653 |
GUARD CRT Price: $3.57 |
| 21 |
532145216 |
SPACER, SPLIT Price: $2.99 |
| 22 |
532104214 |
NUT TI Price: $3.99 |
| 23 |
532005015 |
TIRE.16X4-8.CHEVRON.TILLER Price: $99.99 |
| 23 |
532065139 |
VALVE STEM LT This part replaces 532124718. Price: $5.99 |
| 23 |
532128952 |
RIM ASM.2.75 X 8.00.WHITE This part replaces 532124366. Price: $89.99 |
| 24 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 26 |
532125339 |
BELT GUARD Price: $19.39 |
| 27 |
591372401 |
BELT.V.DR.RT TILLER This part replaces 532132801. Price: $14.99 |
| 28 |
532104679 |
PULLEY-IDLER TI Price: $14.99 |
| 29 |
812000032 |
KLIP RING Price: $3.99 |
| 30 |
584289401 |
BRACKET.IDLER.ASM.SHORT This part replaces 532159229. Price: $12.99 |
| 31 |
532102384 |
BOLT.FIN.HEX.3/8-16UNC Price: $7.99 |
| 32 |
532102141 |
SHIFT ARM CRT Price: $6.99 |
| 33 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 34 |
532102383 |
COUNTERWEIGHT.LH.CRT Price: $84.99 |
| 35 |
874760532 |
Bolt, Hex 5/16-18 x 2 Price: $2.99 |
| 36 |
532102331 |
BRACKET LH CRT Price: $11.99 |
| 37 |
532130812 |
RP.ENGINE PULLEY Price: $19.99 |
| 38 |
532145822 |
BELT GUARD STUD Price: $4.99 |
| 39 |
532140062 |
CAP.PLUNGER.BLACK Price: $4.99 |
| 41 |
819111610 |
WASHER Price: $4.99 |
| 43 |
532069180 |
LOCKNUT Price: $2.99 |
