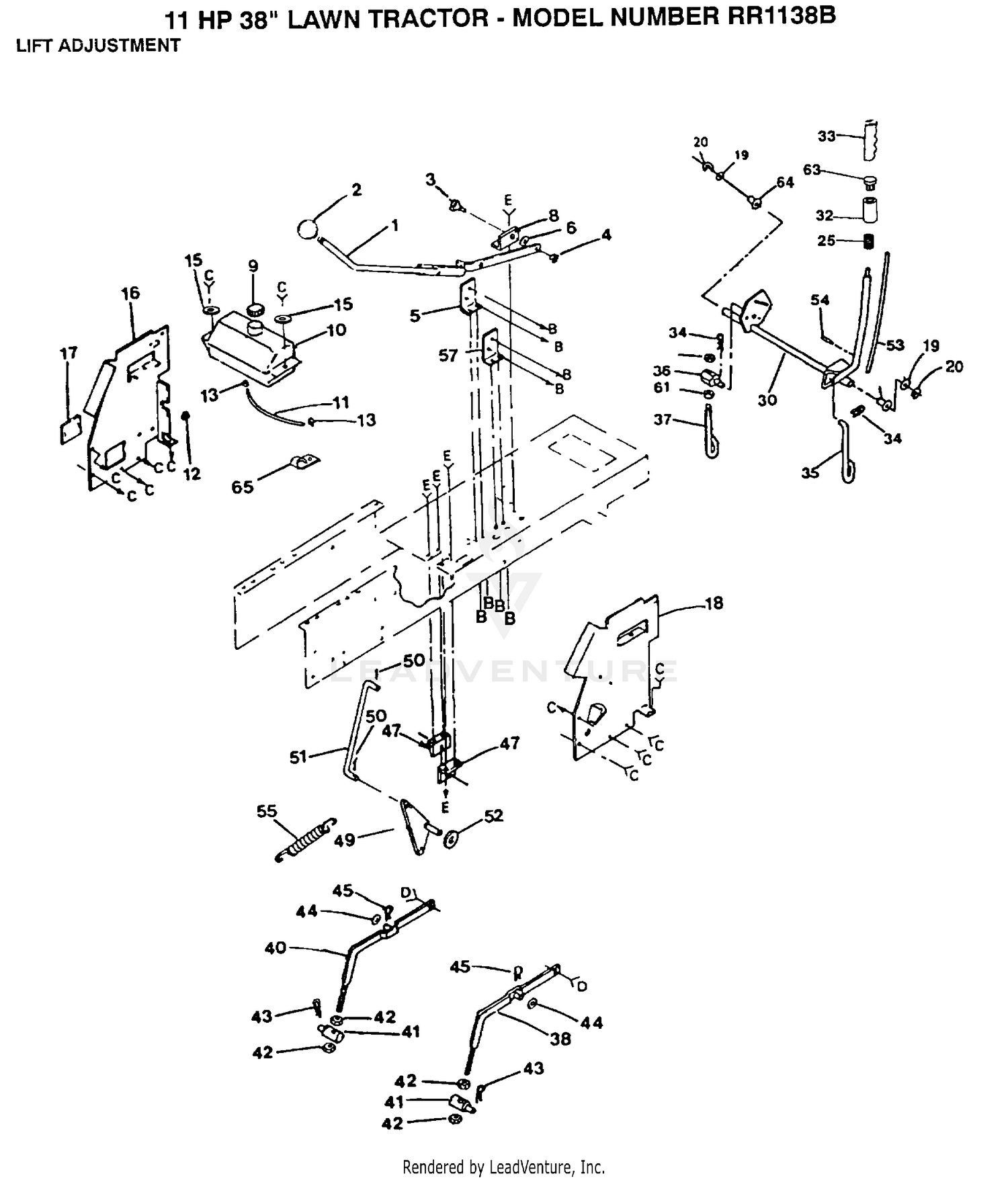

| Ref | Part Number | Description |
|---|
| 1 |
124429X |
SUB= 532124429 Price: Call Us |
| 1 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 2 |
104-3865-03 |
PANEL-FRONT, RH Price: $91.54 |
| 2 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 3 |
32148-7 |
NUT-CLINCH Price: $0.98 |
| 4 |
104-4063-03 |
FRONT PANEL ASM Price: $142.58 |
| 4 |
73680600 |
SUB= 73690600 Price: Call Us |
| 5 |
104-3932-03 |
PANEL-REAR, RIGHT Price: $105.20 |
| 6 |
19171516 |
WASHER T Price: Call Us |
| 6 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 7 |
106-8120 |
DECAL-DANGER, CE This part replaces 93-7273. Price: $9.83 |
| 7 |
17021008 |
SCREW Price: Call Us |
| 8 |
2412-133 |
CLAMP-R Price: $3.19 |
| 9 |
106-8119 |
DECAL-WARNING, CE This part replaces 93-7271. Price: $9.14 |
| 9 |
123549X |
SUB= 158990 Price: Call Us |
| 10 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 10 |
32128-44 |
NUT Price: $2.69 |
| 11 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 11 |
8548R |
FUEL LINE T Price: Call Us |
| 12 |
104-3916 |
SKIRT ASM Price: $359.25 |
| 12 |
9151R |
SNAP BUSHING T Price: Call Us |
| 13 |
123487X |
HOSE CLAMP Price: Call Us |
| 13 |
32128-33 |
NUT-HF Price: $0.25 |
| 14 |
17490612 |
SCREW Price: Call Us |
| 14 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 15 |
19131612 |
WASHER GT Price: Call Us |
| 15 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 16 |
122795X |
PANEL DASH LH Price: Call Us |
| 16 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 17 |
121794X |
COVER ACCESS Price: Call Us |
| 17 |
93-6868-03 |
STEP-FOOT Price: $438.49 |
| 18 |
124031X |
SUB= 155934X010 Price: Call Us |
| 18 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 19 |
19211416 |
WASHER Price: Call Us |
| 19 |
76-6471 |
STRIP-SEAL, FIREWALL Price: $14.64 |
| 20 |
12000002 |
SUB= 2225J Price: Call Us |
| 20 |
62-7170 |
SPACER-RUBBER Price: $28.36 |
| 21 |
104-4009-03 |
ANGLE-RIGHT Price: $44.29 |
| 22 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 23 |
93-6938-03 |
SHIELD-FOOTREST Price: $60.07 |
| 24 |
2412-74 |
R-CLAMP Price: $2.37 |
| 25 |
122512X |
SUB= 532122512 Price: Call Us |
| 25 |
93-6732-03 |
PANEL-REAR, LEFT Price: $99.92 |
| 26 |
104-4060 |
TRIM Price: $6.99 |
| 27 |
93-6908 |
SPACER-SPLIT Price: $5.37 |
| 28 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 29 |
321-9 |
SCREW-HH This part replaces 322-23. Price: $0.27 |
| 30 |
122507X |
SUB= 145117 Price: Call Us |
| 30 |
321-3 |
SCREW-HH Price: $0.28 |
| 31 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 32 |
104-4014 |
DECAL-SPORT, REELMASTER Price: $36.52 |
| 32 |
122364X |
SUB= 125925X Price: Call Us |
| 33 |
109413X |
GRIP Price: Call Us |
| 33 |
3234-21 |
SCREW-HHF Price: $2.19 |
| 34 |
237-37 |
BUMPER-RUBBER Price: $4.33 |
| 34 |
4939M |
SUB= 85902 Price: Call Us |
| 35 |
110029X |
LIFT LINK LT Price: Call Us |
| 36 |
110447X |
SUB= 132793 Price: Call Us |
| 37 |
110448X |
PIVOT PIN T Price: Call Us |
| 38 |
121598X |
RH SUSP ARM ASM Price: Call Us |
| 40 |
121599X |
LH SUSP ARM ASM Price: Call Us |
| 41 |
106308X |
SUB= 130171 Price: Call Us |
| 42 |
73220800 |
NUT Price: Call Us |
| 43 |
9135R |
SPRING H Price: Call Us |
| 44 |
19171516 |
WASHER T Price: Call Us |
| 45 |
4921H |
SPRING.RETAINER Price: Call Us |
| 48 |
74760612 |
SUB= 74780612 Price: Call Us |
| 50 |
76020412 |
COTTER PIN Price: Call Us |
| 51 |
124444X |
SUB= 532124444 Price: Call Us |
| 52 |
19131410 |
WASHER Price: Call Us |
| 53 |
122514X |
SUB= 136973 Price: Call Us |
| 54 |
105767X |
PIN-GROOVE LT Price: Call Us |
| 55 |
124446X |
SUB= 532124446 Price: Call Us |
| 57 |
108236X |
BRACKET LT Price: Call Us |
| 59 |
110739X |
WASHER T Price: Call Us |
| 60 |
73980600 |
NUT SPECIAL T Price: Call Us |
| 61 |
73360700 |
NUT Price: Call Us |
| 62 |
73710700 |
NUT LOCK YTH Price: Call Us |
| 63 |
124385X |
SUB= 125925X Price: Call Us |
| 64 |
120183X |
NYLON BEARING Price: Call Us |
