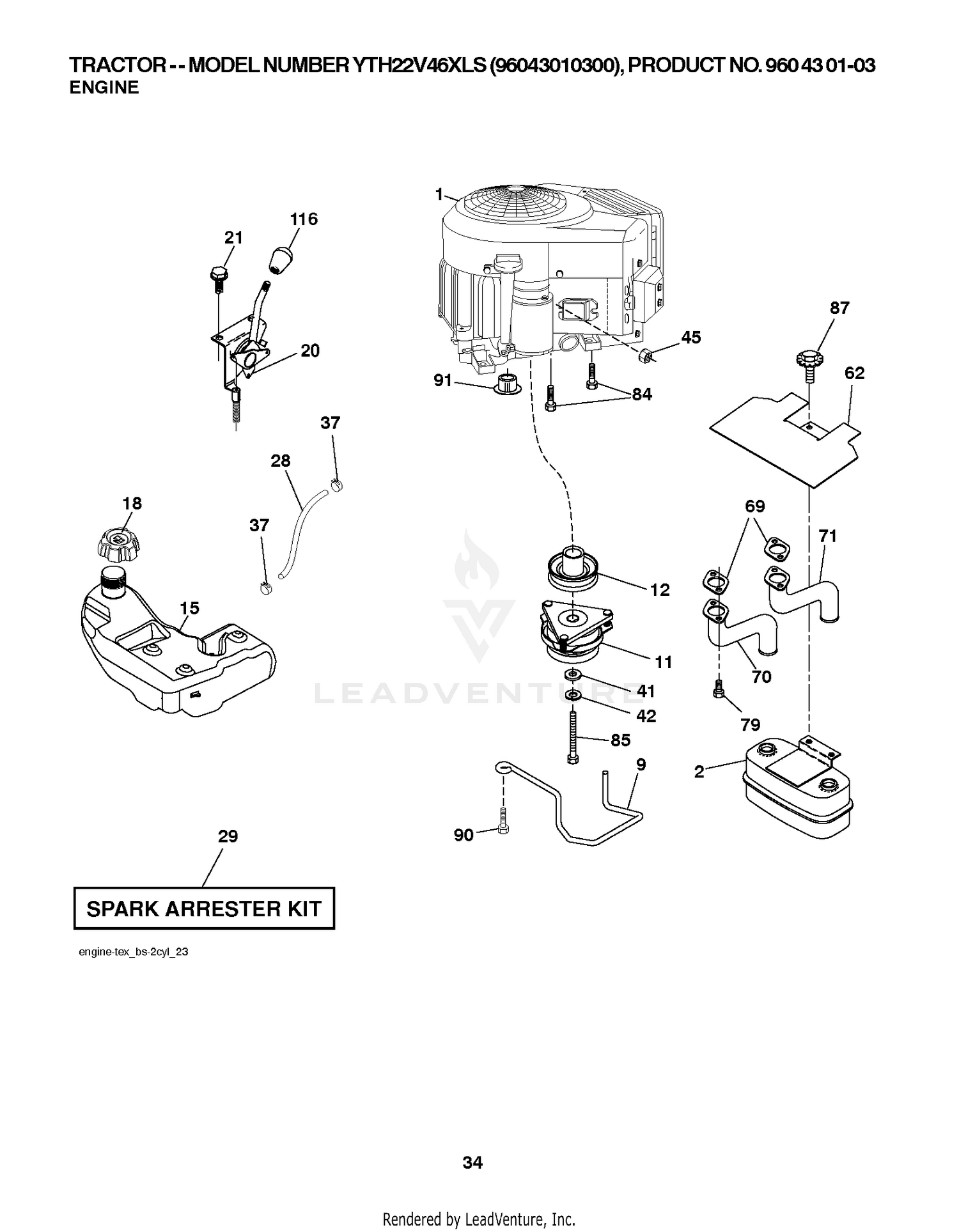

| Ref | Part Number | Description |
|---|
| 1 |
115-5304 |
CAP-FUEL This part replaces 93-7170. Price: $26.87 |
| 2 |
105-8266 |
TANK-FUEL This part replaces 92-7189. Price: $466.98 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 4 |
63-8410 |
WASHER Price: $1.76 |
| 5 |
2412-41 |
CLAMP-R Price: $4.82 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 7 |
3256-63 |
WASHER-FLAT Price: $0.25 |
| 8 |
83-2200 |
NUT Price: $9.81 |
| 9 |
33113-012 |
SCREW-HH This part replaces 48-7610. Price: $0.71 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
2412-94 |
CLAMP Price: $2.31 |
| 11 |
109-0275 |
HOSE-FUEL This part replaces 83-2041. Price: $12.99 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
94-2690 |
FILTER-FUEL Price: $4.69 |
| 14 |
109-0304 |
HOSE-FUEL This part replaces 83-2040. Price: $1.99 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 15 |
83-1390 |
VALVE-SHUT-OFF, FUEL Price: $55.01 |
| 16 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 20 |
586219601 |
CONTROL.THROTTLE/CHOKE.PRO.45 This part replaces 532424340. Price: $54.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
