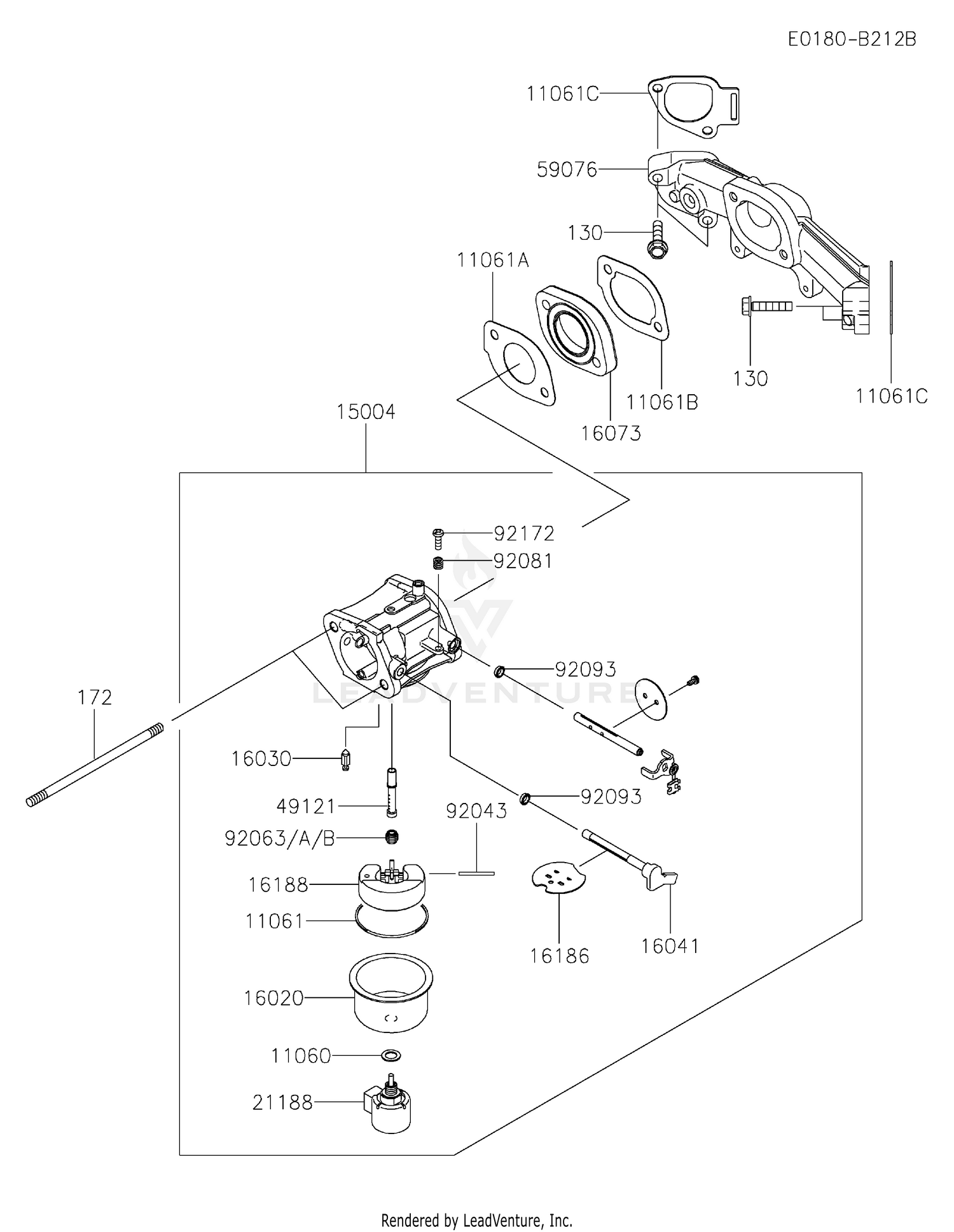

FR730V-KS05 CARBURETOR
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 130 | KM-130BA0630 | BOLT-FLANGED-6X30 Price: $1.60 |
| 11060 | KM-11060-2073 | GASKET Price: $2.18 |
| 11061 | KM-11061-1555 | CHAMBER GASKET Price: $2.61 |
| 11061A | KM-11061-7087 | GASKET-INSULATOR Price: $2.08 |
| 11061B | KM-11061-7088 | GASKET-INSULATOR/MANIFOLD Price: $2.08 |
| 11061C | KM-11061-7093 | INTAKE MANIFOLD GASKET Price: $1.96 |
| 15004 | KM-15004-1176 | CARBURETOR-ASSY Price: Call Us |
| 16020 | KM-16020-0009 | FLOAT CHAMBER Price: $28.67 |
| 16030 | KM-16030-0013 | FLOAT VALVE Price: $19.04 |
| 16041 | KM-16041-0049 | CARB CHOKE SHAFT Price: $14.61 |
| 16073 | KM-16073-0935 | INSULATOR Price: Call Us |
| 16186 | KM-16186-0004 | CHOKE VALVE ASM Price: $14.16 |
| 16188 | KM-16188-0166 | FLOAT Price: Call Us |
| 21188 | KM-21188-0026 | SOLENOID Price: $159.23 |
| 49121 | KM-49121-0021 | MAIN NOZZLE Price: $32.27 |
| 59076 | KM-59076-0009 | INTAKE MANIFOLD Price: $162.67 |
| 92043 | KM-92043-1896 | PIN Price: Call Us |
| 92063 | KM-92063-0732 | MAIN JET #120 Price: $11.12 |
| 92063A | KM-92063-0733 | MAIN JET #117 Price: $11.12 |
| 92063B | KM-92063-0734 | MAIN JET #123 Price: $11.12 |
| 92081 | KM-92081-2245 | SPRING Price: $2.29 |
| 92093 | KM-92093-0798 | SEAL Price: $4.18 |
| 92172 | KM-92172-1686 | SCREW Price: Call Us |
