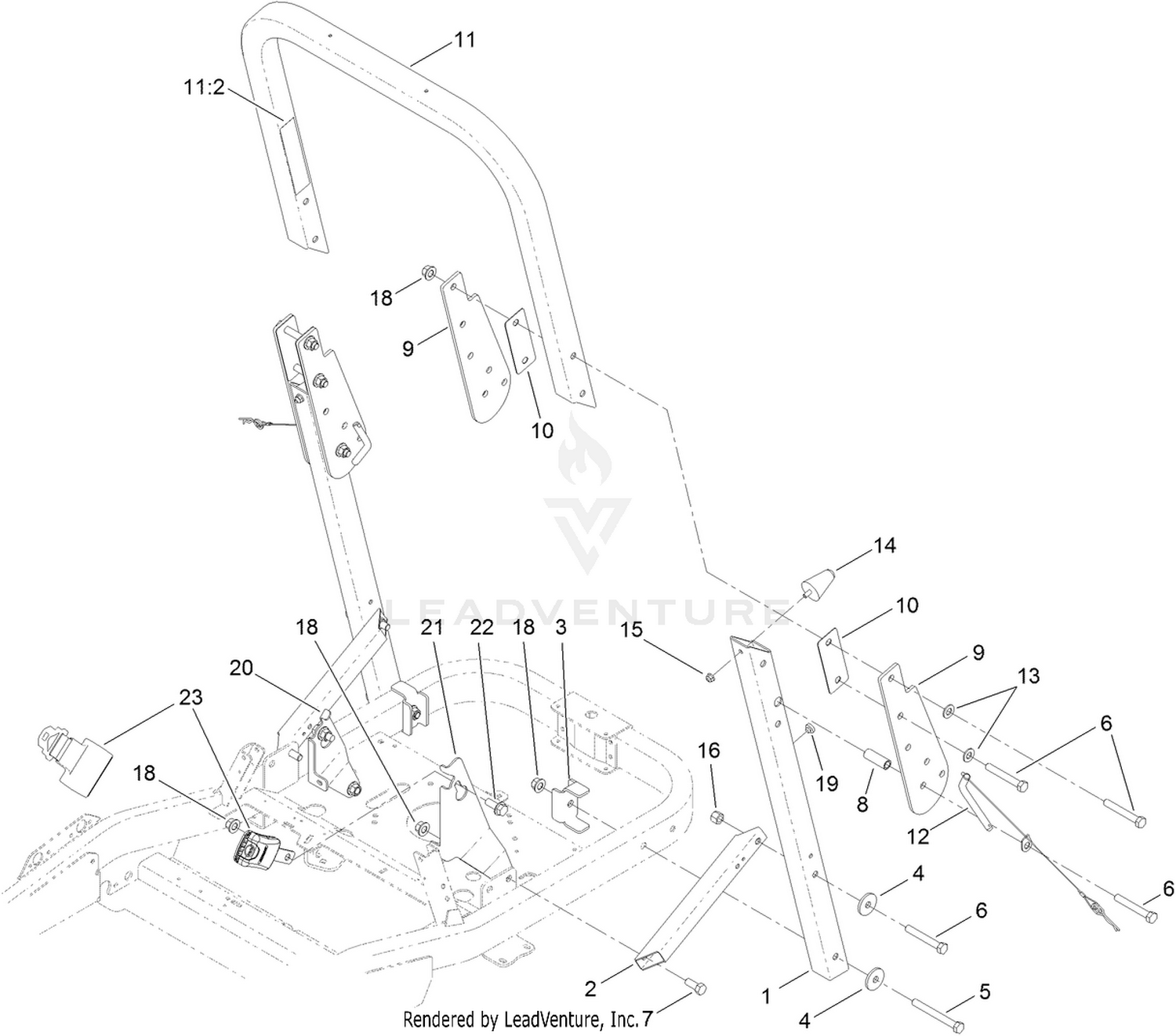

Roll-Over Protection System Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-2986-03 | TUBE-ROPS, LOWER Price: $79.12 |
| 2 | 115-4962-03 | TUBE-SUPPORT, ROPS Price: $29.94 |
| 3 | 115-4963-03 | BRACKET-REINFORCING Price: $12.94 |
| 4 | 84-1560 | WASHER-THRUST Price: $2.71 |
| 5 | 325-18 | SCREW-HH Price: $3.19 |
| 6 | 325-14 | SCREW-HH Price: $2.64 |
| 7 | 325-5 | SCREW-HH Price: $1.20 |
| 8 | 109-6653 | SPACER Price: $5.89 |
| 9 | 119-8911-03 | BRACKET-PIVOT, ROPS Price: $27.81 |
| 10 | 119-8926-03 | SPACER-ROPS Price: $3.02 |
| 11 | 119-8991 | UPPER ROPS ASM Price: $167.33 |
| 12 | 119-8970 | PIN-ROPS W/ LANYARD Price: $21.50 |
| 13 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 14 | 114-1925 | BUMPER-RUBBER Price: $24.99 |
| 15 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 16 | 119-8969 | NUT-HEX Price: $1.29 |
| 18 | 99-5107 | NUT-LOCK Price: $1.77 |
| 19 | 1-513658 | BUMPER Price: $6.09 |
| 20 | 115-5038-03 | BRACKET-BELT, SEAT Price: $19.77 |
| 21 | 115-5060-03 | BRACKET-BELT, SEAT Price: $24.10 |
| 22 | 3234-38 | SCREW-HHF Price: $3.33 |
