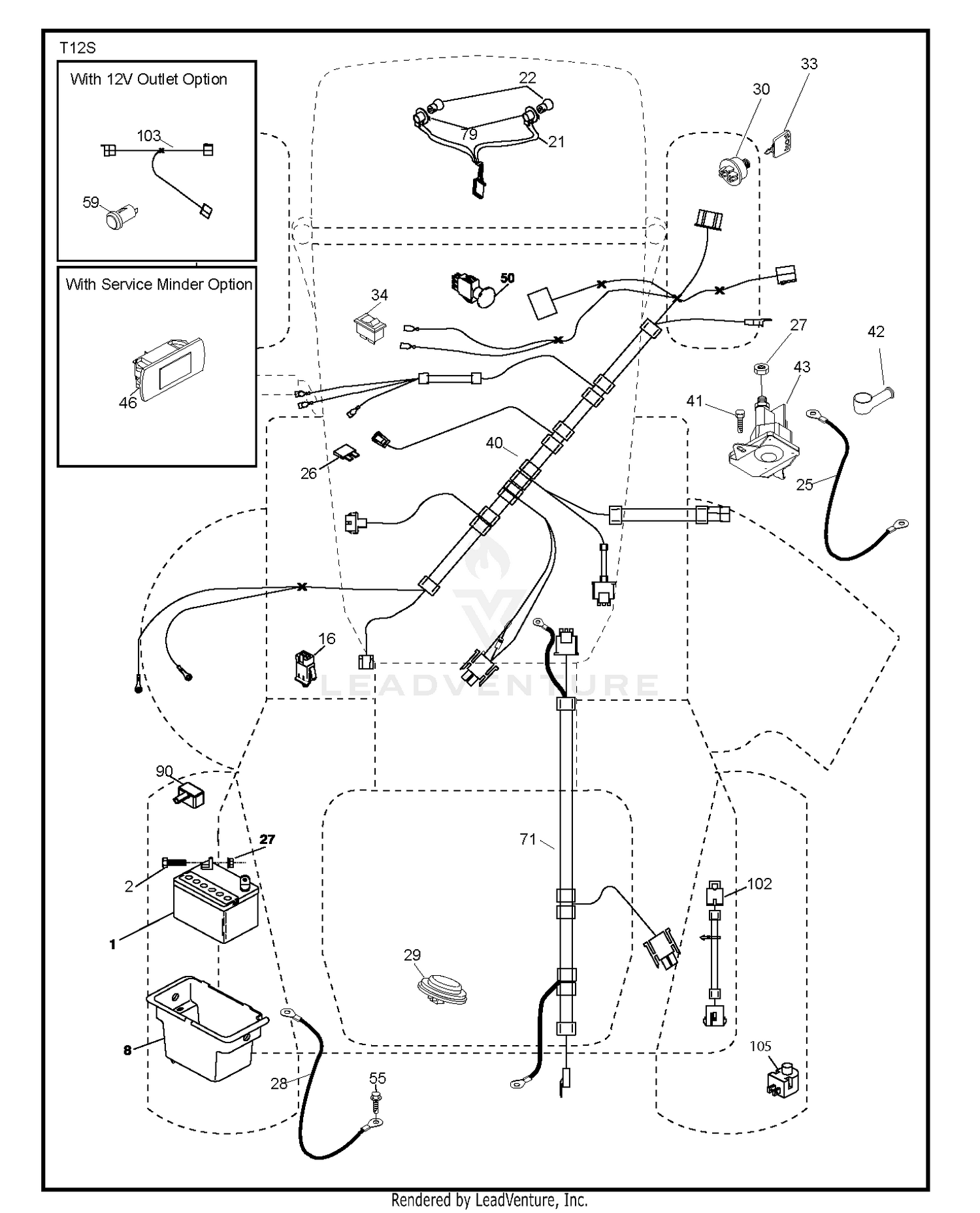

| Ref | Part Number | Description |
|---|
| 1 |
117-8460 |
RH TRAILING ARM ASM Price: $808.58 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
117-8504-03 |
CRANK-BELL, LIFTING RH Price: $74.36 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
3231-29 |
SCREW-CARR Price: $0.68 |
| 5 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 6 |
119-6190-03 |
BRACE-COVER, BELT Price: $30.67 |
| 7 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 8 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 9 |
3233-2 |
SCREW-CARR Price: $1.49 |
| 10 |
119-6188 |
TUBE-PIVOT Price: $4.23 |
| 11 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 14 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 25 |
532412894 |
CABLE.STARTER.6GA.BL/RED.14. Price: $12.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $17.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $32.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532400725. Price: $4.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
