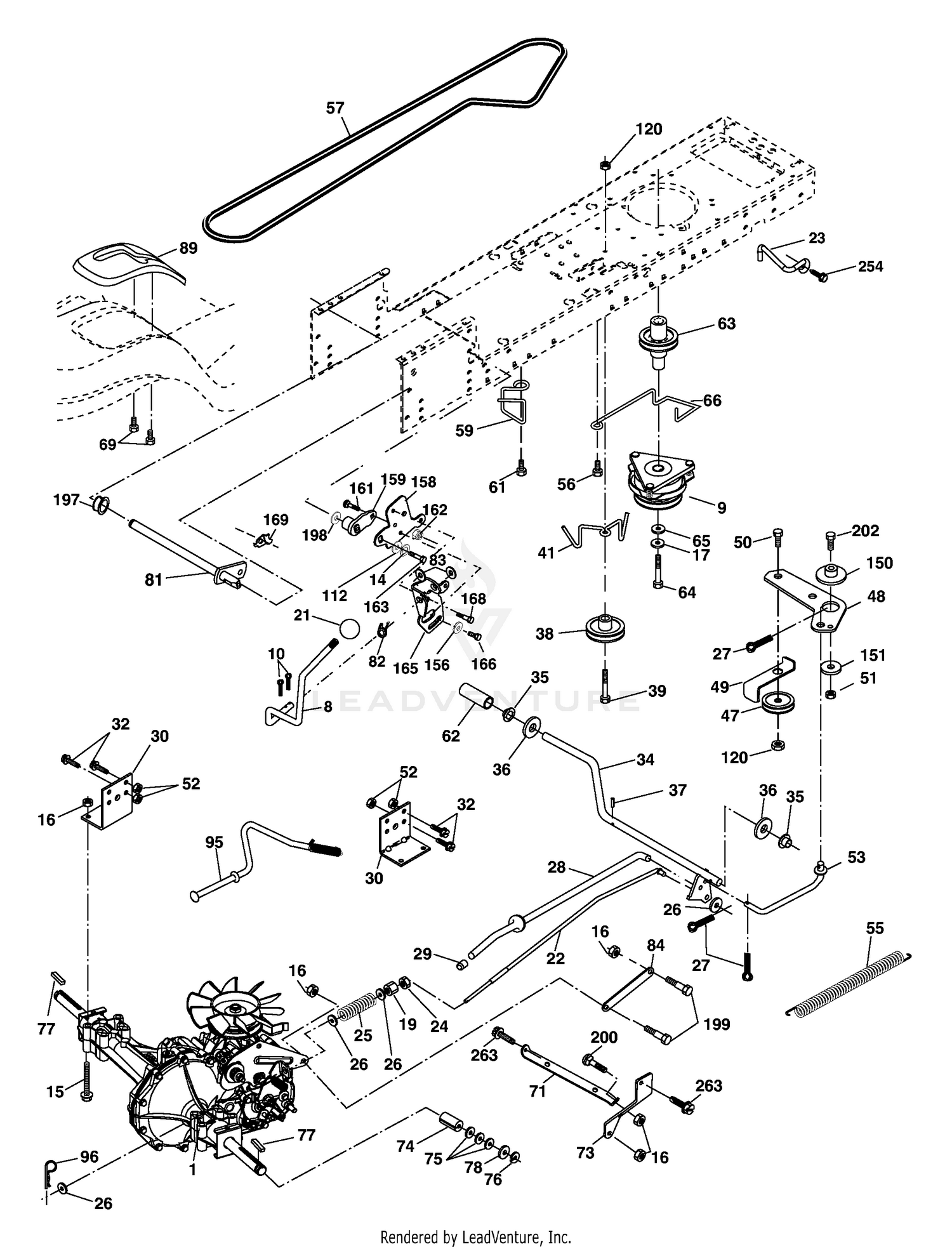

| Ref | Part Number | Description |
|---|
| 1 |
95-7541 |
PLATE-COVER Price: $89.04 |
| 2 |
106-1140 |
GASKET This part replaces 95-7540. Price: $17.66 |
| 3 |
33114-025 |
SCREW-HH Price: $0.70 |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 7 |
106-6774 |
JOINT-BALL This part replaces 92-5838-01. Price: $79.04 |
| 8 |
192502 |
Rod Shift Price: Call Us |
| 8 |
92-5836 |
WASHER Price: $5.34 |
| 9 |
100-3774 |
GEAR-DRIVEN, 10 PITCH Price: $241.72 |
| 9 |
180505 |
Clutch Ogura Price: Call Us |
| 10 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 CAD Price: Call Us |
| 11 |
71-4580 |
BEARING Price: $80.51 |
| 12 |
100-3775 |
GEAR-DRIVER, 10 PITCH Price: $171.88 |
| 13 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
237-166 |
O-RING Price: $10.46 |
| 15 |
74490544 |
Bolt, Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 15 |
92-7386 |
HYD MOTOR ASM Price: $2,754.42 |
| 16 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 16 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 unc Price: Call Us |
| 17 |
126197X |
Washer Price: Call Us |
| 17 |
325-4 |
SCREW-HH Price: $0.95 |
| 18 |
32151-96 |
RING-RETAINING Price: $0.54 |
| 19 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 19 |
73800600 |
Nut Lock Hex W/Wsh 3/8-16 unc Price: Call Us |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
92-5833 |
SPACER-JOINT, BALL Price: $20.71 |
| 22 |
169498 |
Rod, Brake Hydro Price: Call Us |
| 22 |
93-5268 |
NUT-LUG Price: $2.20 |
| 23 |
190736 |
Bracket Anti Rotation Price: Call Us |
| 23 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 24 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 24 |
73350600 |
Nut Price: Call Us |
| 25 |
100-3795 |
JOINT-BALL Price: $76.85 |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 26 |
100-3796 |
SPACER-JOINT, BALL Price: $13.33 |
| 26 |
19131316 |
Washer Price: Call Us |
| 27 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 28 |
98-3806 |
HYD CYLINDER ASM Price: $818.91 |
| 29 |
100-3770 |
PIN-AXLE, PIVOT Price: $146.29 |
| 29 |
71673 |
Cap, Parking Brake Price: Call Us |
| 30 |
100-3771 |
PIN-STOP Price: $47.62 |
| 30 |
169592 |
Bracket, Transaxle Price: Call Us |
| 31 |
110-4750 |
DRIVE AXLE ASM This part replaces 100-3784. Price: $8,909.28 |
| 32 |
32136-14 |
NUT-HST Price: $3.38 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc x 3/4 Price: Call Us |
| 33 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 35 |
94-9973 |
RING-RETAINING Price: $1.02 |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 37 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 38 |
179114 |
Pulley, Composite Price: Call Us |
| 39 |
72110622 |
Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 Price: Call Us |
| 41 |
175556 |
Keeper, Belt Idler Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Groove Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
140294 |
V-Belt, Ground Drive Price: Call Us |
| 59 |
169691 |
Keeper, Center Span Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
123533X |
Cover, Pedal Price: Call Us |
| 63 |
174607 |
Pulley, Engine Price: Call Us |
| 64 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 69 |
142432 |
Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc Price: Call Us |
| 71 |
169183 |
Strap Torque Lh Hydro Price: Call Us |
| 73 |
169182 |
Strap Torque Rh Hydro Price: Call Us |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 81 |
165596 |
Shaft Asm. Cross Hydro Price: Call Us |
| 82 |
165711 |
Spring Torsion T/A Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
169594 |
Link Transaxle Price: Call Us |
| 89 |
192387X428 |
Console, Shift Price: Call Us |
| 95 |
170201 |
Control Asm Bypass Hydro Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16 ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Lt Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8" ID Price: Call Us |
| 198 |
169593 |
Washer Nyl 7/8 ID x .105 Price: Call Us |
| 199 |
169612 |
Bolt Shoulder 5/16-18 unc Price: Call Us |
| 200 |
72140508 |
Bolt Rdhd Sqnk 5/16-18 unc x 1 Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 254 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
