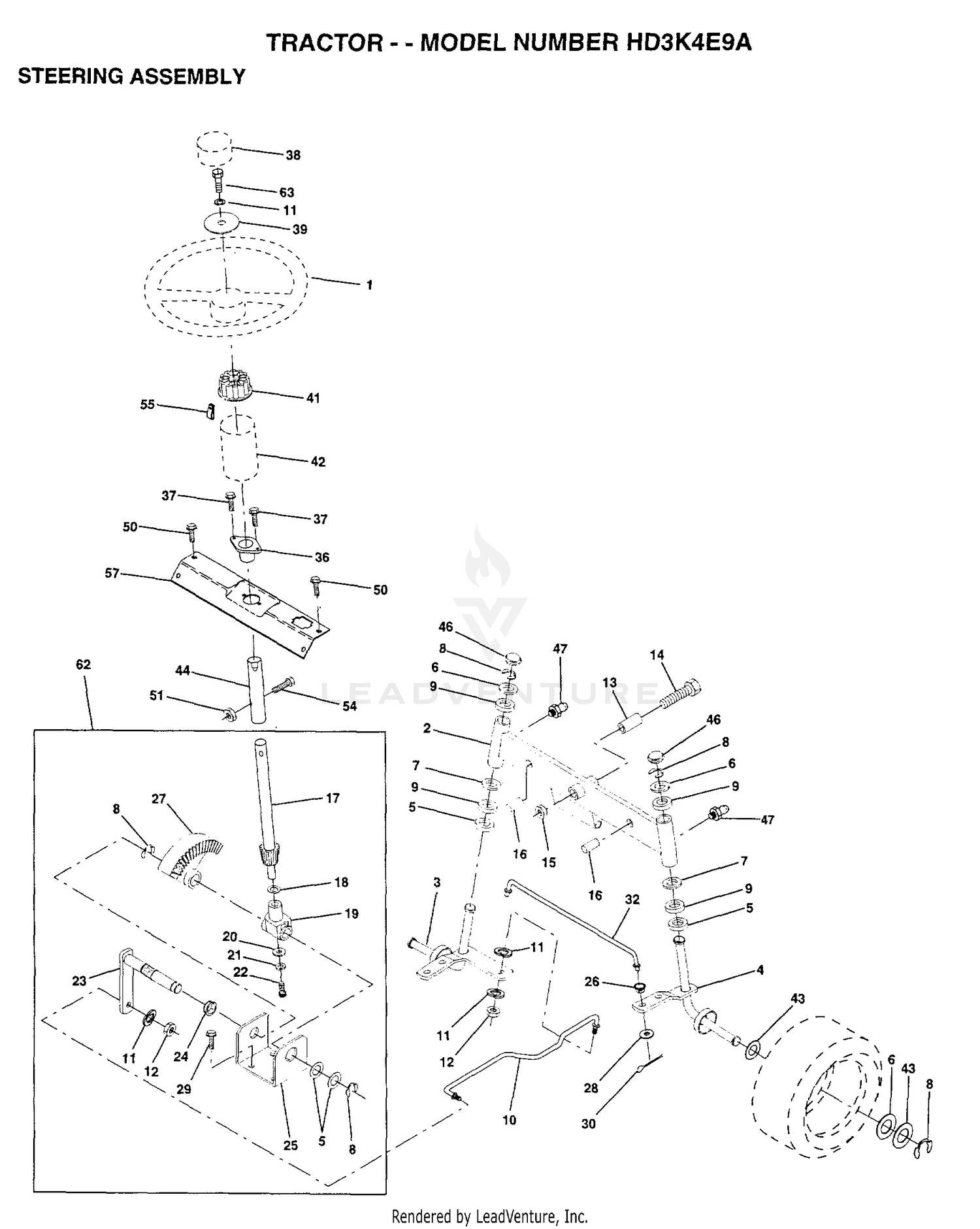

| Ref | Part Number | Description |
|---|
| 1 |
140044 |
WHEEL STR AYP BLK Price: Call Us |
| 1 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 2 |
142033 |
AXLE ASM FRONT Price: Call Us |
| 2 |
2412-133 |
CLAMP-R Price: $3.19 |
| 3 |
135227 |
SPINDLE LH Price: Call Us |
| 3 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 4 |
135228 |
SPINDLE RH Price: Call Us |
| 4 |
76-9460-03 |
DISCONTINUED Price: Call Us |
| 5 |
6266H |
WASHER .T Price: Call Us |
| 5 |
77-3780 |
PIN ASM-LYNCH Price: $15.06 |
| 6 |
121748X |
WASHER Price: Call Us |
| 6 |
3290-282 |
RIVET-BLIND Price: $0.28 |
| 7 |
19272016 |
WASHER Price: Call Us |
| 7 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 8 |
12000029 |
RING Price: Call Us |
| 8 |
76-9930 |
FOAM-CENTER Price: $7.40 |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
3366R |
COL. SRTG. BEAR. Price: Call Us |
| 10 |
130468 |
SUB= 532130468 Price: Call Us |
| 10 |
86-2860-03 |
COVER-BELT, UPPER Price: $16.75 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
82-4900 |
FOAM-SEAT, REAR Price: $71.75 |
| 12 |
73610600 |
SUB= 7810H Price: Call Us |
| 12 |
76-9440 |
ROD-PROP, SEAT Price: $65.18 |
| 13 |
110438X |
BEARING Price: Call Us |
| 14 |
74011056 |
BOLT HEX 5/8-11 Price: Call Us |
| 16 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 16 |
132624 |
AXLE PIN Price: Call Us |
| 17 |
140176 |
SHAFT ASM STEERIN Price: Call Us |
| 17 |
240-5 |
GROMMET Price: $13.66 |
| 18 |
321-5 |
SCREW-HH Price: $0.22 |
| 18 |
57079 |
THRUST WASHER Price: Call Us |
| 19 |
124035X |
SUPPORT.SHAFT Price: Call Us |
| 19 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 20 |
126684X |
SUB= 532126684 Price: Call Us |
| 20 |
32128-33 |
NUT-HF Price: $0.25 |
| 21 |
10040400 |
LOCKWASHER Price: Call Us |
| 21 |
70-1480 |
RELAY Price: $105.19 |
| 22 |
2412-74 |
R-CLAMP Price: $2.37 |
| 22 |
71100410 |
SCREW.SCKTHD.CAP Price: Call Us |
| 23 |
127501 |
SUB= 918127501 Price: Call Us |
| 23 |
37-2690 |
CAPACITOR Price: $155.98 |
| 24 |
109816X |
NYLINER T Price: Call Us |
| 25 |
237-136 |
GROMMET Price: $3.52 |
| 26 |
126847X |
BUSHING.DRAGLINK Price: Call Us |
| 26 |
76-9480 |
SLEEVE-PIVOT, SEAT Price: $4.64 |
| 27 |
136874 |
GEAR SECTOR Price: Call Us |
| 28 |
19131416 |
WASHER Price: Call Us |
| 28 |
325-9 |
SCREW-HH Price: $1.87 |
| 29 |
116749 |
HORN This part replaces 48-4590. Price: $130.99 |
| 29 |
17490612 |
SCREW Price: Call Us |
| 30 |
74-8910 |
DISCONTINUED Price: Call Us |
| 30 |
76020412 |
COTTER PIN Price: Call Us |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
130465 |
TIE ROD Price: Call Us |
| 36 |
102803X |
SUB= 918102803X Price: Call Us |
| 38 |
140045 |
CAP STEER AYP Price: Call Us |
| 39 |
19133808 |
WASHER T Price: Call Us |
| 41 |
100711L |
ADAPTER LT Price: Call Us |
| 42 |
140216 |
BOOT SHAFT STEER Price: Call Us |
| 43 |
121749X |
WASHER Price: Call Us |
| 44 |
153721 |
SHAFT EXT STEERIN Price: Call Us |
| 46 |
121232X |
CAP Price: Call Us |
| 47 |
6855M |
ZERK M Price: Call Us |
| 50 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 51 |
73800500 |
NUT Price: Call Us |
| 54 |
74780520 |
BOLT Price: Call Us |
| 55 |
140285 |
CLIP TINNERMAN Price: Call Us |
| 57 |
140172 |
SUPPORT SHAFT STR Price: Call Us |
| 62 |
149686 |
SUB= 918149686 Price: Call Us |
