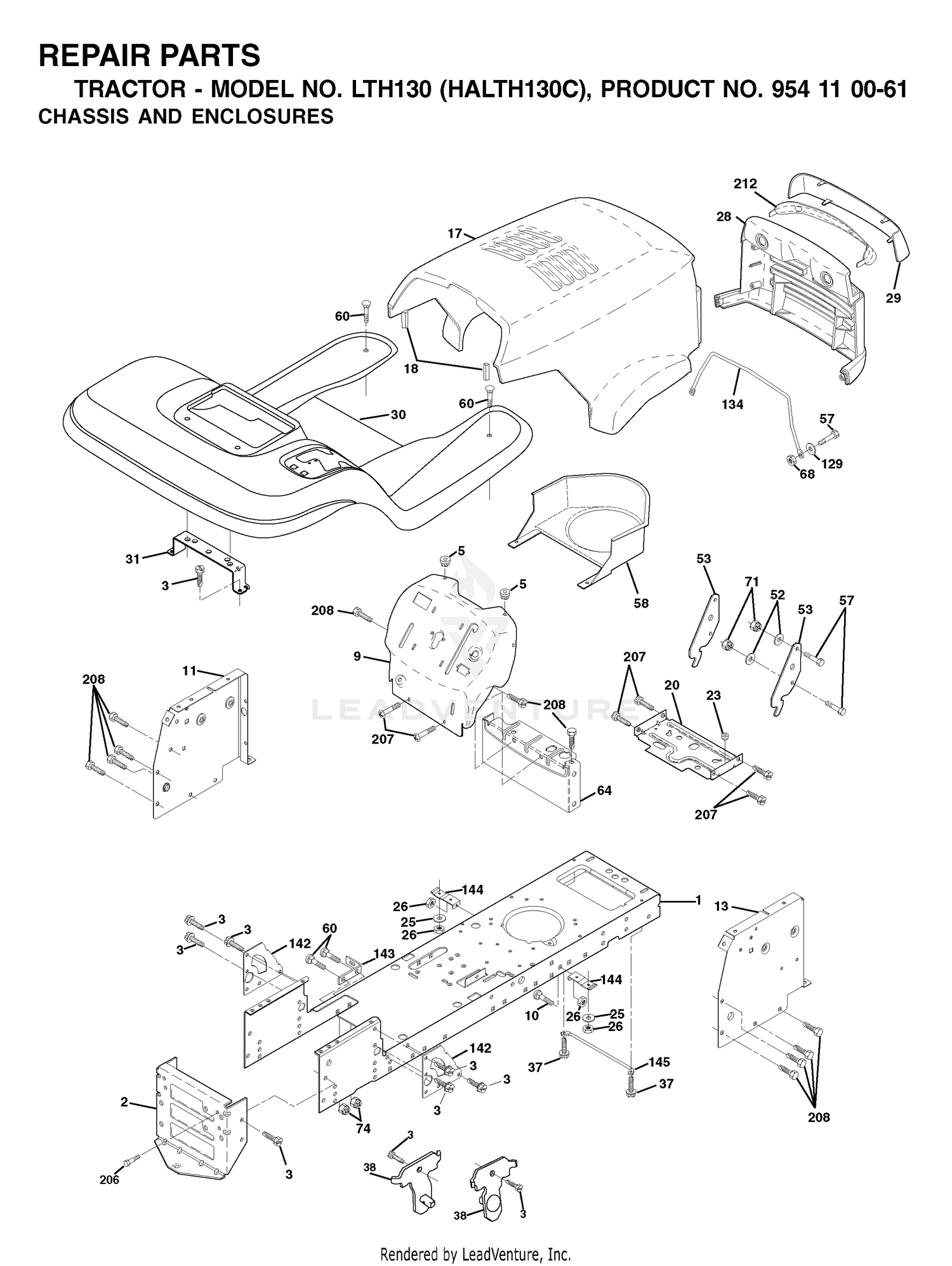

| Ref | Part Number | Description |
|---|
| 1 |
532169830 |
CHASSIS Price: $99.99 |
| 2 |
108-0686 |
SHIELD-RUBBER, TOP Price: $193.61 |
| 2 |
532176554 |
DRAWBAR, 12GA This part replaces 532169061. Price: $37.99 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
108-0760 |
COUPLING-JAW, STOCK Price: $136.91 |
| 7 |
105-9455 |
MOTOR Price: $989.33 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 9 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 9 |
532168336 |
DASH This part replaces 532171853. Price: $33.08 |
| 10 |
115-8975 |
BEARING-SELF-ALIGNING Price: $143.54 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
108-0668-03 |
PLATE-SKIRT, SIDE Price: $24.80 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
115-9093 |
SHIELD, RUBBER-SIDE Price: $11.92 |
| 13 |
532173025 |
PANEL DASH RH Price: $9.92 |
| 14 |
115-9092 |
SHIELD, RUBBER-FRONT Price: $52.00 |
| 15 |
108-0667-03 |
PLATE-SKIRT, FRONT Price: $103.97 |
| 16 |
117-8310 |
BRUSH ASM Price: $1,207.38 |
| 17 |
107-1439-03 |
PLATE-ANGLE Price: $23.40 |
| 17 |
532156051 |
HOOD - LT/YT This part replaces 532165378. Price: $549.99 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 21 |
107-1280-01 |
ANGLE-FRONT Price: $136.91 |
| 22 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 23 |
108-0781 |
COVER-COUPLER Price: $46.69 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 28 |
108-0844-03 |
PLATE-SHIELD, TOP Price: $53.86 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532165379. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA This part replaces 532165380. Price: $24.99 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532171854. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 68 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 134 |
532160219 |
ROD SUPPORT HOOD LT/PL HUS. Price: $7.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532165867. Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 212 |
532156195 |
INSERT LENS REFLECTOR Price: $6.99 |
