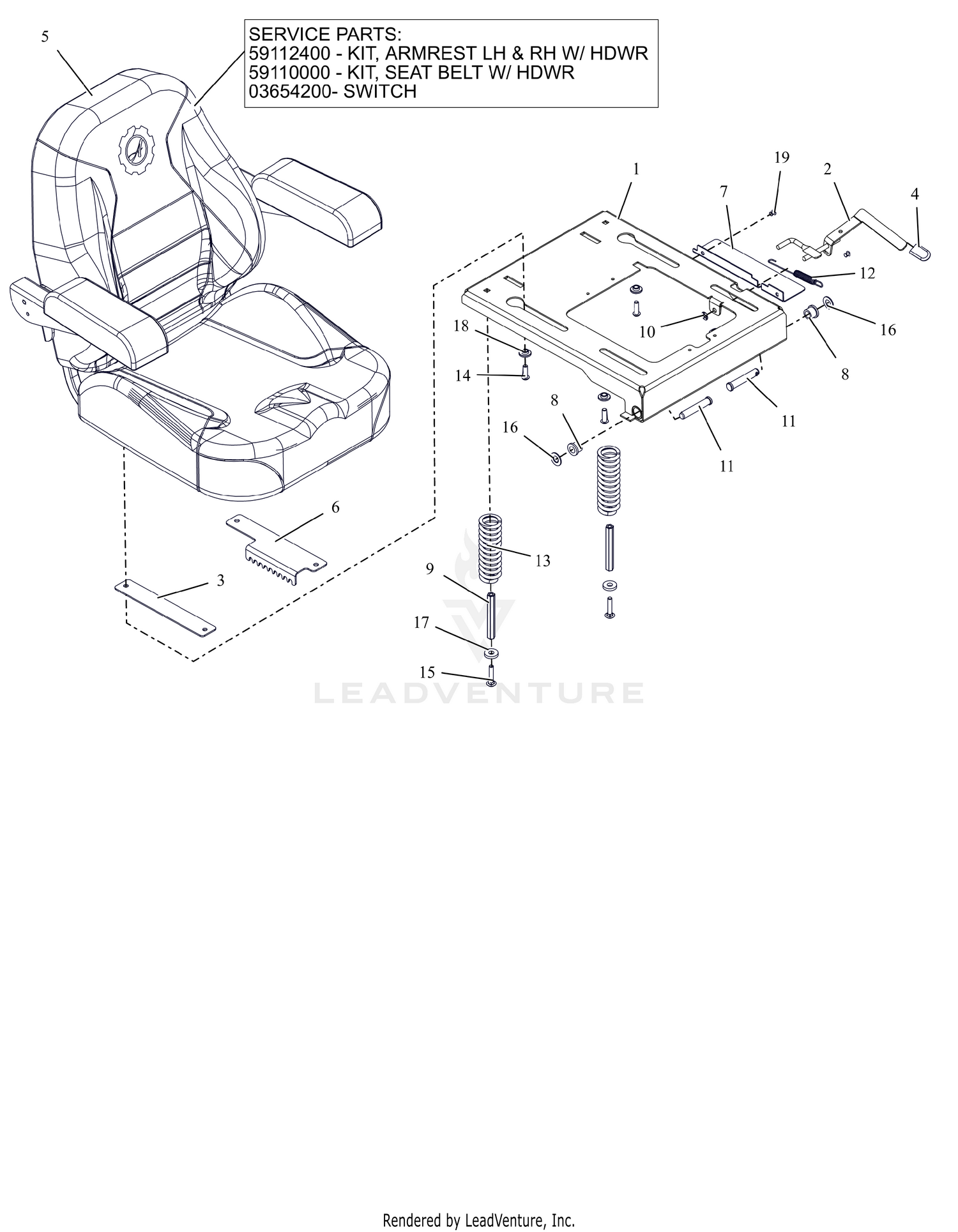

| Ref | Part Number | Description |
|---|
| 1 |
04995659 |
WLDMT, SEAT PLATE HD Price: $80.95 |
| 2 |
05015251 |
WLDMT, SEAT SLIDE LEVER Price: $19.45 |
| 3 |
04377051 |
PLATE, ADJUSTABLE SEAT SLIDE Price: $20.45 |
| 4 |
04396600 |
GRIP, SEAT LEVER, GREY Price: $2.45 |
| 5 |
05124700 |
SEAT, APEX Price: $438.95 |
| 6 |
05015151 |
PLATE, HD SEAT ADJUSTMENT Price: $15.45 |
| 7 |
05108459 |
GUARD, SEAT PLATE Price: $13.45 |
| 8 |
05500901 |
BSHG, FLG .516X.750X.625X.937 Price: $5.45 |
| 9 |
06500828 |
NUT, COUPLING 5/16X18 X 3.75 Price: $11.45 |
| 10 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 11 |
06800202 |
PIN-CLIC .50X2.70X2.31 -ZCC Price: $7.45 |
| 12 |
08300022 |
SG-TENS .06X.482X5.35 Price: $5.45 |
| 13 |
08300704 |
SPRING, COMPRESSION SEAT 224LB Price: $15.45 |
| 14 |
05901840 |
BLT,SHCS-BTN .31-18X1.00 ZCC Price: $2.45 |
| 15 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC Price: $1.45 |
| 16 |
06401115 |
WSHR, FLT .531X1.00X.063 ZCC Price: $0.45 |
| 17 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC Price: $2.45 |
| 18 |
05501127 |
BSHG-FLG .325X.499X.3X.875 Price: $0.95 |
