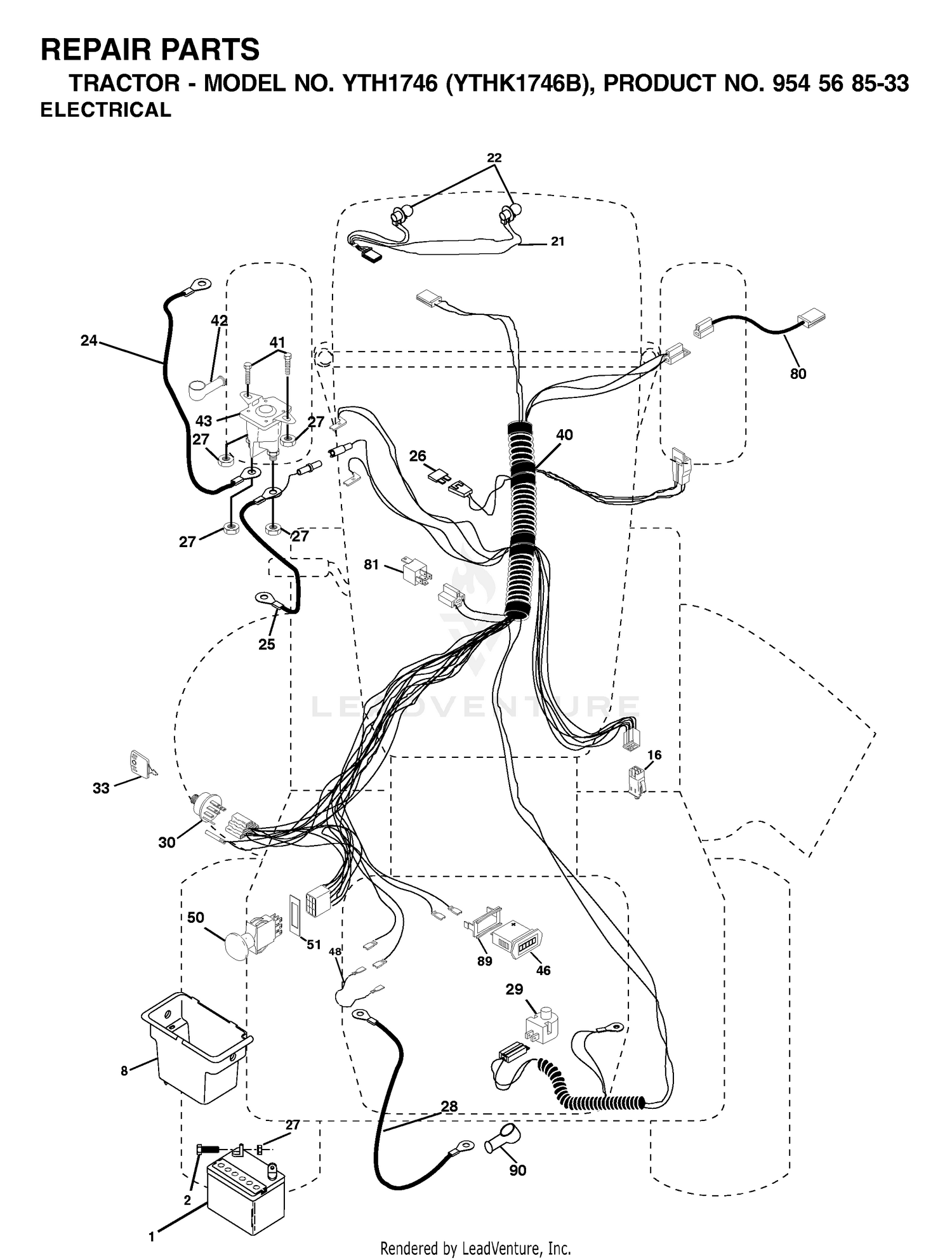

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 5 |
532401823 |
DASH.HUSQ.UPR.ELE.SVMD Price: $49.99 |
| 8 |
532176689 |
BOX.BATTERY.FENDER Price: $9.99 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532401824. Price: $149.99 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM This part replaces 532404821. Price: $129.99 |
| 21 |
532175685 |
HARNESS.ASM.LIGHT WSL Price: $15.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532160784 |
PLUNGER SWITCH (COLOR:OLIVE) Price: $17.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ This part replaces 532401825. Price: $219.99 |
| 40 |
532179724 |
HARNESS IGN. Price: $129.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
532140405 |
FRAME RETAINING RING Price: $3.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 80 |
532146685 |
HARNESS, CLUTCH Price: $11.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 99 |
532406642 |
ROD.BYPASS.HYDRO.0510/0610.GT Price: $14.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 150 |
532198514 |
AIR.DUCT.TEXGT.HUSQ.31 Price: $24.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532401826. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033001 |
KITS.WELD.CHASSIS.195477X431 This part replaces 532401559. Price: $249.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR This part replaces 532194787. Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532400299 |
RP CONSOLE.ASM.DECKLFT.W/ Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532198904. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 237 |
532403704 |
PLUG.MOUNT.CARGO.BLK Price: $3.99 |
