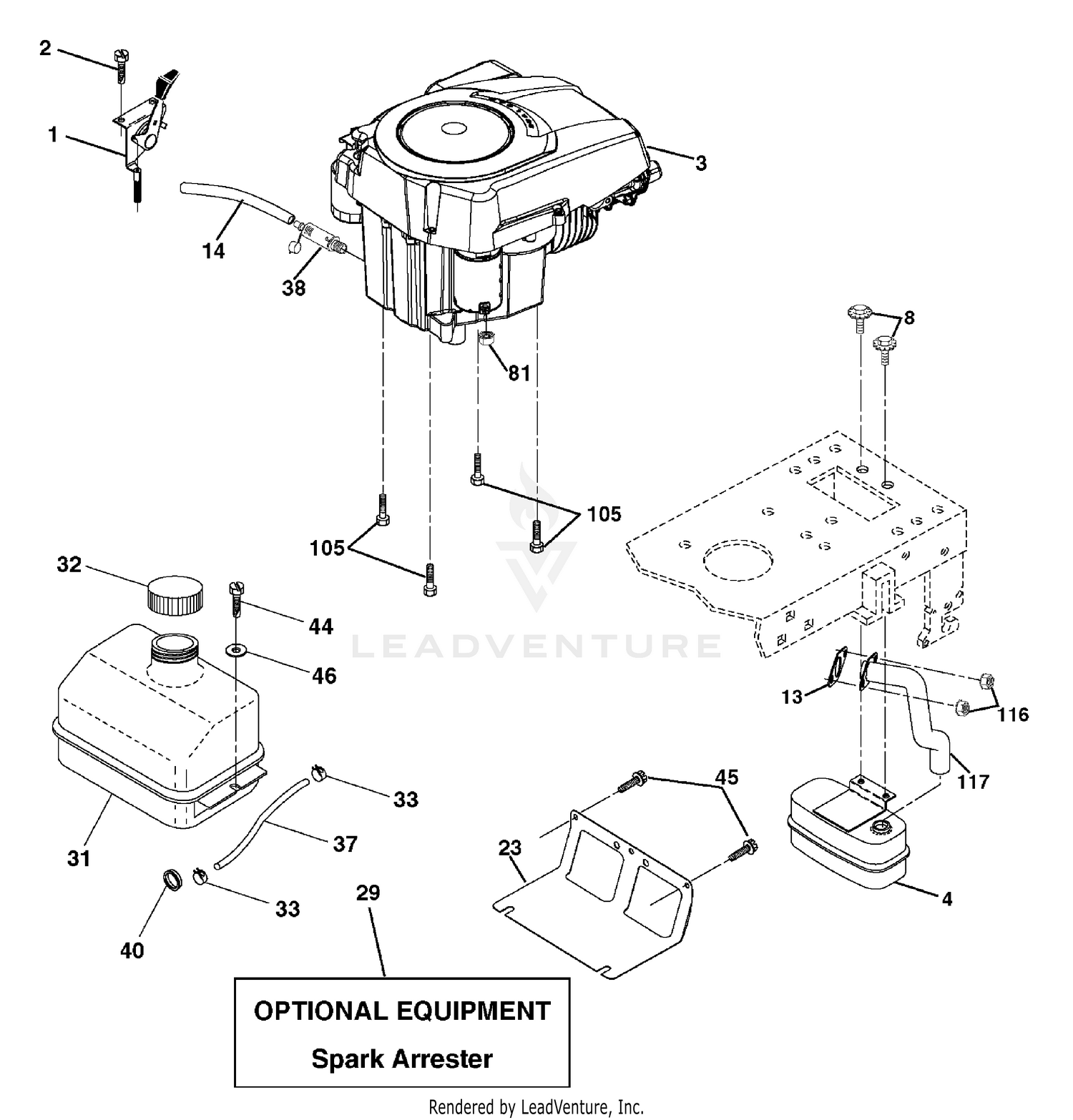

| Ref | Part Number | Description |
|---|
| 1 |
3217-7 |
NUT-HEX Price: $0.28 |
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
92-9701 |
SHAFT-CRUISE Price: $101.17 |
| 4 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 5 |
42-1720 |
CORE-FIELD, COIL Price: $387.41 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 7 |
3217-26 |
NUT-HEX Price: $0.25 |
| 8 |
3245-31 |
SCREW-HSH Price: $12.15 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
144-6182 |
PLATE-CLUTCH This part replaces 43-6110. Price: $25.59 |
| 10 |
43-6320 |
COLLAR Price: $24.71 |
| 11 |
69-9390 |
SHAFT-PEDAL Price: $71.62 |
| 12 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 14 |
69-9030 |
POST-DEVICE, NEUTRAL Price: $39.15 |
| 15 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 16 |
74-2700-03 |
CONTROL ROD ASM This part replaces 74-2700. Price: $132.44 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
3220-5 |
NUT-JAM Price: $0.65 |
| 20 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 21 |
3220-3 |
NUT-HJ Price: $0.28 |
| 23 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
69-7650 |
DISCONTINUED Price: Call Us |
| 25 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 26 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 27 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 28 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 30 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
