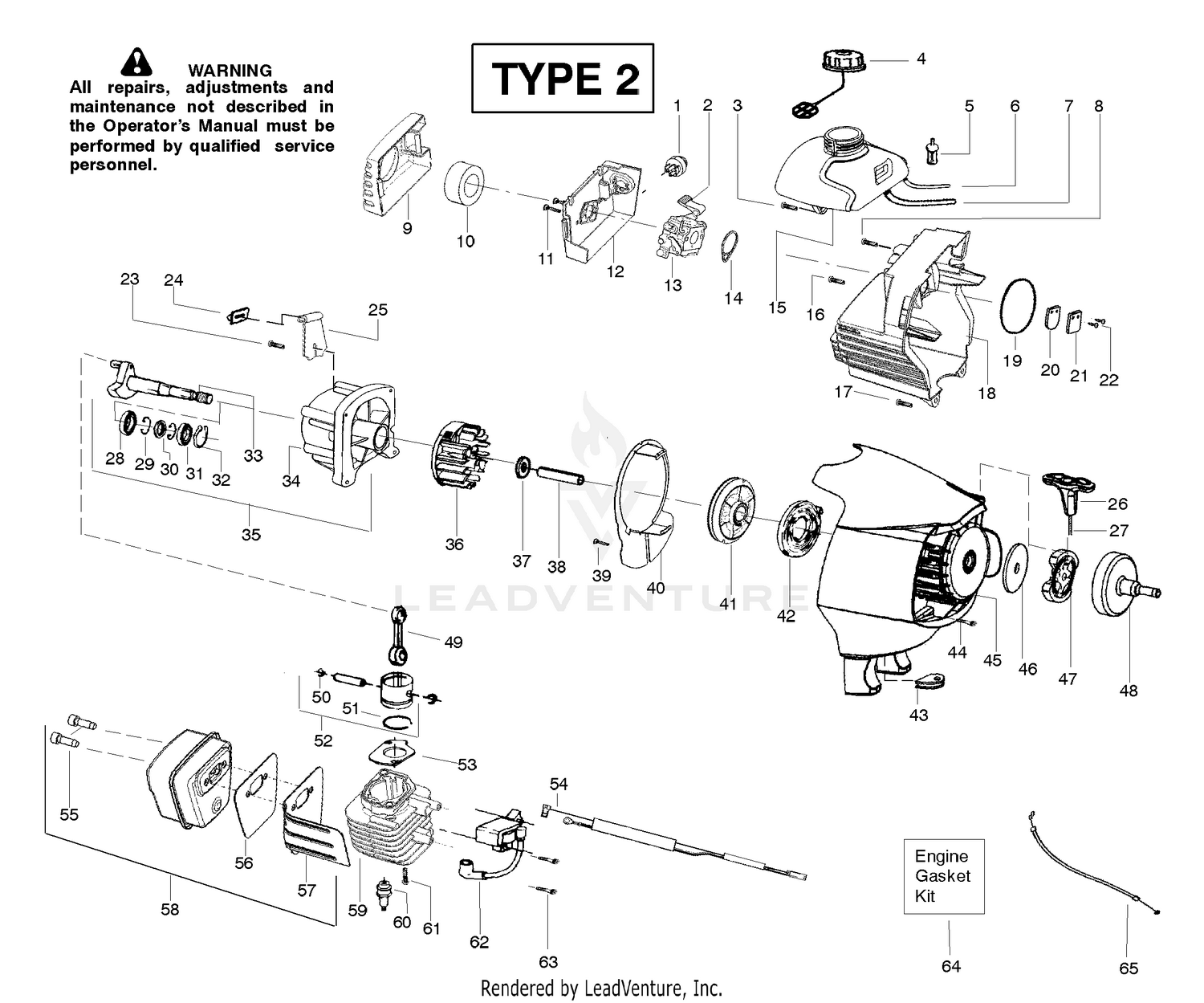

| Ref | Part Number | Description |
|---|
| 1 |
530047721 |
Bulb-Purge Price: $3.99 |
| 2 |
530071717 |
Kit-Choke Lever Price: $7.99 |
| 3 |
530015843 |
Screw-tank Price: $1.99 |
| 4 |
530057973 |
Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 5 |
530095646 |
Assy-Fuel pickup Price: $2.99 |
| 6 |
530069247 |
Kit-Fuel Line This part replaces 530071404. Price: $3.99 |
| 7 |
530069216 |
Kit-Fuel/Purge line Price: $3.99 |
| 8 |
530015775 |
Screw Price: $1.99 |
| 9 |
545000501 |
Cover-Air box Price: $3.99 |
| 10 |
545082301 |
Filter-Air Price: $2.99 |
| 11 |
530015849 |
Screw-Carb. Price: $1.99 |
| 12 |
545000601 |
Box-Air Price: $4.99 |
| 15 |
545075305 |
Assy-Fuel Tank This part replaces 545075304. Price: $11.99 |
| 16 |
530015771 |
Screw-Crankcase Price: $1.99 |
| 17 |
530015952 |
Screw-Shroud Price: $1.99 |
| 18 |
545000701 |
Assy-Rear Shroud Price: $17.99 |
| 20 |
530027593 |
Valve-Reed Price: $1.99 |
| 21 |
530029781 |
Stop-Reed Price: $1.99 |
| 22 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 23 |
530015875 |
Screw-Retainer Price: $1.99 |
| 24 |
530055492 |
Isolator-Tank Price: $1.99 |
| 25 |
530054941 |
Ret.-Tank Price: $1.99 |
| 26 |
530054834 |
Handle-Starter Price: $1.99 |
| 27 |
545050409 |
Kit-Rope Price: $4.99 |
| 28 |
545081601 |
Bearing-Inner Price: $7.99 |
| 29 |
530015787 |
Retainer Price: $1.99 |
| 30 |
530019158 |
Seal Price: $2.99 |
| 31 |
530032102 |
Bearing-Outer Price: $8.99 |
| 32 |
530015789 |
Ret.-Crankshaft Price: $2.99 |
| 33 |
530028807 |
Assy-Crankshaft Price: $19.99 |
| 36 |
530055524 |
Assy-Flywheel Price: $22.99 |
| 37 |
530016030 |
Washer Price: $1.99 |
| 38 |
530055620 |
Spacer Price: $4.99 |
| 39 |
530015775 |
Screw-Baffle Price: $1.99 |
| 40 |
545115201 |
Plate-Baffle Price: $2.99 |
| 41 |
545050408 |
Kit-Pulley Price: $14.99 |
| 42 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 43 |
530019182 |
Grommet Price: $1.99 |
| 44 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 45 |
530059254 |
Assy-Fan Housing Price: $17.99 |
| 46 |
530094189 |
Washer-Clutch Price: $2.99 |
| 47 |
530055122 |
Assy-Clutch Price: $8.99 |
| 48 |
530150247 |
Assy-Drum/Adapter Price: $17.99 |
| 49 |
530010960 |
Assy-Conn. Rod Price: $14.99 |
| 50 |
530015162 |
Ret.-Piston pin Price: $1.99 |
| 51 |
530012594 |
Ring-Piston Price: $3.99 |
| 54 |
530058846 |
Assy-Leadwire Price: $4.99 |
| 55 |
530016387 |
Bolt-Muffler 1/4"-20 Price: $1.99 |
| 57 |
545033201 |
Shield Price: $3.99 |
| 59 |
530012586 |
Cylinder Price: $17.99 |
| 61 |
530001624 |
Bolt-Cyl. 1/4"-20 Price: $1.99 |
| 62 |
545081826 |
Kit - Ignition Module This part replaces 530039234. Price: $32.99 |
| 63 |
530016357 |
Screw-Module Price: $1.99 |
| 133 |
4810806 |
Ring Set-.010 Price: Call Us |
| 133 |
4810807 |
Ring Set-.020 Price: Call Us |
| 133 |
4810808 |
Ring Set-.030 Price: Call Us |
| 133 |
48_108_05 |
Ring Set (Std. .003) Price: Call Us |
| 134 |
4806712 |
Rod-Conn. (Std.) Price: Call Us |
| 134 |
4806713 |
Rod-Conn. (.010 U.S.) Price: Call Us |
| 135 |
235004 |
Retainer Price: Call Us |
| 136 |
4807406 |
Piston-Assy. (Std.)(Includes Pin Retainers) Price: Call Us |
| 136 |
4807407 |
Piston-Assy. (.003)(Includes Pin Retainers) Price: Call Us |
| 136 |
4807408 |
Piston-Assy. (.010)(Includes Pin Retainers) Price: Call Us |
| 136 |
4807409 |
Piston-Assy. (.020)(Includes Pin Retainers) Price: Call Us |
