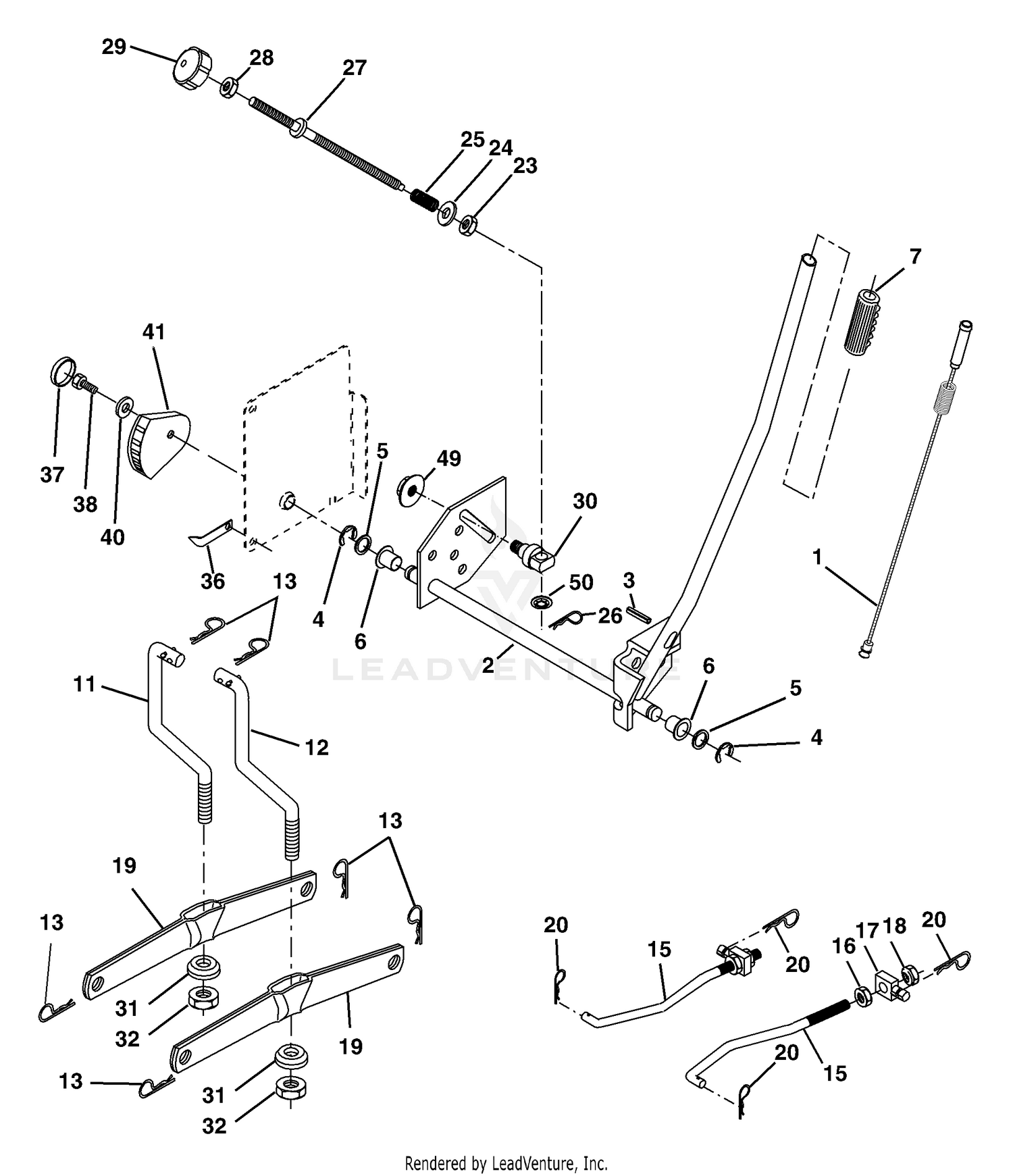

Mower Lift

Mower Lift

Parts (45)

RefPart NumberDescription
1 184432 Plunger Asm. Price: Call Us
1 94-3230 DISCONTINUED Price: Call Us
2 159476 Shaft Asm Lift Price: Call Us
2 76-5540 BUSHING-INJECTOR Price: $30.77
3 178981 Pin Groove Price: Call Us
3 76-5530 WASHER-TRAP, FLAME Price: $1.30
4 12000002 E Ring #5133-62 Price: Call Us
4 76-5550 FUEL INJECTOR GASKET This part replaces 94-3226. Price: $11.78
5 19211621 Washer 21/32 x 1 x 21 Ga. Price: Call Us
5 76-5520 DISCONTINUED Price: Call Us
6 120183X Bearing Nylon Price: Call Us
6 94-3232 WASHER-CALIBRATION (.79) Price: $8.60
6 94-3242 WASHER-CALIBRATION (1.30) Price: $7.57
7 175830 Grip Handle Price: Call Us
7 94-3228 SPRING Price: $54.06
8 94-3227 SPACER Price: $42.30
9 76-5600 DISCONTINUED Price: Call Us
10 74-8770 DISCONTINUED Price: Call Us
11 139865 Link Lift Lh Price: Call Us
11 94-3229 DISCONTINUED Price: Call Us
12 139866 Link Lift Rh Price: Call Us
12 74-8750 INJECTION TUBE SET Price: $278.99
13 4939M Retainer Spring Price: Call Us
15 173288 Link Front Price: Call Us
16 73350800 Nut Jam Hex 1/2-13 Unc Price: Call Us
17 175689 Trunnion Blk Zinc Price: Call Us
18 73800800 Nut Lock w/Wsh 1/2-13 Unc Price: Call Us
19 139868 Arm Suspension Rear Price: Call Us
20 163552 Retainer Spring Price: Call Us
23 110807X Nut Special Price: Call Us
24 19131016 Washer 13/32 x 5/8 x 16 Ga. Price: Call Us
25 2876H Spring Price: Call Us
26 169484 Retainer Clip Price: Call Us
27 126971X Rod Adj. Lift Price: Call Us
28 73350600 Nut Hex Jam 3/8-16 Unc Price: Call Us
29 138057 Knob Price: Call Us
30 150233 Trunnion Infin. Height Price: Call Us
31 169865 Bearing Pvt Lift Price: Call Us
32 73540600 Nut Crownlock 3/8-24 Price: Call Us
36 155097 Pointer Height Indicator Price: Call Us
37 123935X Plug Hole Price: Call Us
38 17060516 Screw 5/16-18 x 1 Price: Call Us
40 19112410 Washer 11/32 x 1-1/2 10 Ga. Price: Call Us
41 155098 Indicator Height Price: Call Us
49 145212 Nut Hex Flange Lock Price: Call Us
