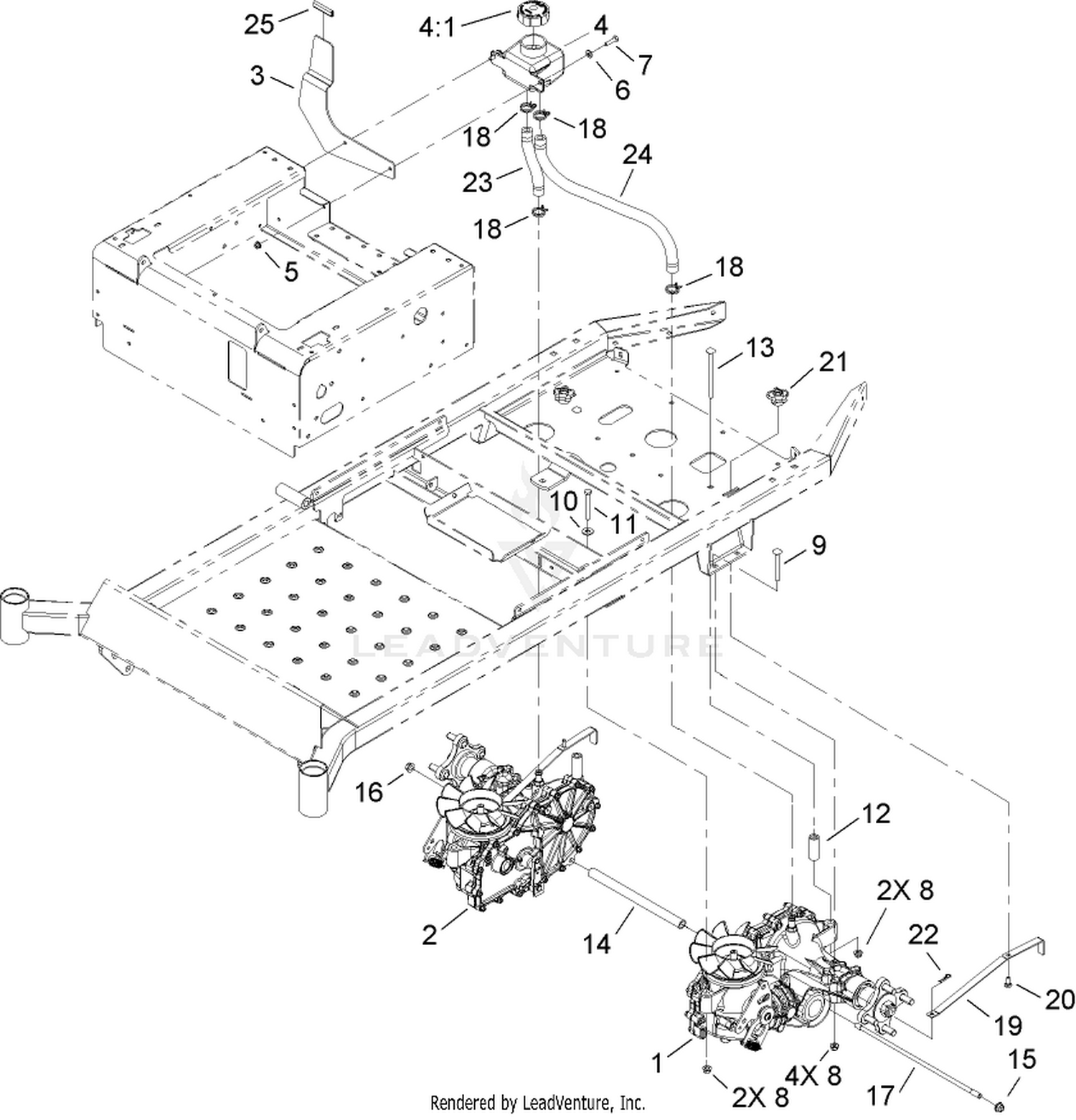

| Ref | Part Number | Description |
|---|
| 1 |
109-3372 |
TRANSMISSION-LH Price: $1,203.48 |
| 2 |
109-3371 |
TRANSMISSION-RH Price: $1,203.48 |
| 3 |
109-6570-03 |
BRACKET-FENDER SUPPORT Price: $30.78 |
| 4 |
109-2250 |
TANK-HYD Price: $42.48 |
| 5 |
104-7201 |
NUT-HF Price: $0.69 |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
321-6 |
SCREW-HH Price: $0.25 |
| 8 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 9 |
3230-9 |
SCREW-CARR Price: $0.68 |
| 10 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 11 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 12 |
109-3652 |
SPACER-HYDRO Price: $8.15 |
| 13 |
3230-30 |
SCREW-CARR Price: $10.99 |
| 14 |
109-3710 |
TUBE-SPACER Price: $14.63 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 17 |
109-3711 |
ROD-TENSION Price: $17.21 |
| 18 |
109-3322 |
CLAMP-HOSE Price: $0.78 |
| 19 |
109-5395 |
ARM-BYPASS, HYDRO Price: $6.58 |
| 20 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 21 |
108-6402 |
KNOB-HANDLE Price: $1.39 |
| 22 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 23 |
109-5577 |
HOSE-HYDRAULIC Price: $3.99 |
| 24 |
109-5578 |
HOSE-HYDRAULIC Price: $12.13 |
