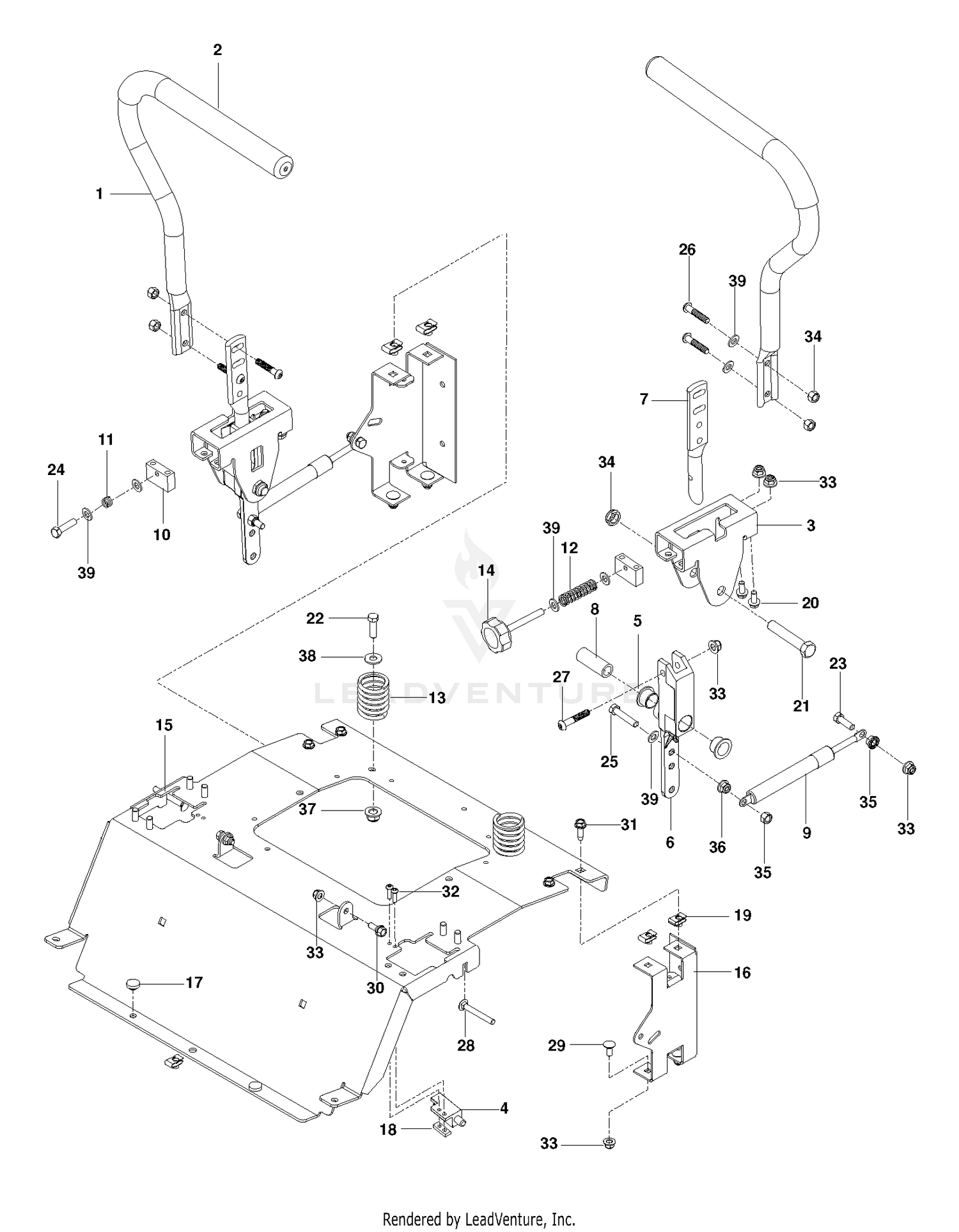

STEERING

STEERING

Parts (74)

RefPart NumberDescription
1 579036901 LEVER.STEERING.ASM.(W/GRIP) Price: $39.99
1 72-6970 DISCONTINUED Price: Call Us
2 110-3996 GAUGE-OIL LEVEL This part replaces 70-8880. Price: $108.61
2 598851704 TUBE RZ CONTROL LEVER LEFT MS This part replaces 525392901. Price: $44.99
3 56-0020 EXPANSION PLUG Price: $14.38
3 586737202 BRACKET.CONTROL.NARROWSLOT.BLK This part replaces 577251701. Price: $22.99
4 43-2710 O-RING Price: $6.47
4 539101080 SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99
5 539131518 BEARING, FLANGE Price: $9.99
5 72-6950 OIL LEVEL GUAGE RETAIN. Price: $33.80
6 576140301 LEVER CONTROL PIVOT Price: $19.99
6 72-6940 WATER DRAIN JOINT Price: $20.69
7 42-9560 DISCONTINUED Price: Call Us
7 577420002 Levers This part replaces 577420001. Price: $9.99
8 584927201 SPACER.PIVOT.CONTROL This part replaces 577252401. Price: $4.99
8 67-2390 PLUG Price: $5.06
9 539102720 DAMPENER Price: $39.99
9 72-6010 DISCONTINUED Price: Call Us
10 577251801 BLOCK.TRACKING Price: $9.99
10 67-2430 BRACKET Price: $156.42
11 539102845 SPRING Price: $2.99
11 67-2440 DISCONTINUED Price: Call Us
12 53-8150 PUMP-FUEL Price: $680.19
12 576850301 SPRING COMPRESSION 2.0 Price: $3.99
13 43-2570 GASKET-PUMP Price: $15.12
13 587613301 SPRING.COMPRESSION.SEAT.BLACK This part replaces 539110300. Price: $5.99
14 43-2550 FILTER-PUMP Price: $23.30
14 596400701 Knobs This part replaces 539131799. Price: $8.99
15 43-2560 GASKET-PUMP Price: $23.14
15 589761211 PLATE SEAT SUPPORT; RZ ORANGE This part replaces 577260503. Price: $109.99
16 43-2580 MAGNET-PUMP Price: $12.24
16 580308202 SUPPORT REAR SEAT BLACK This part replaces 574522702. Price: $19.99
17 539102587 GROMMET, BUMPER Price: $4.99
17 67-2330 BOLT Price: $2.25
18 539102678 TAPPED PLATE Price: $12.99
18 67-2270 CASE Price: $79.65
19 539104763 U-CLIP 5/16-18 NUT RETAINER Price: $4.99
19 67-2230 OIL SEAL Price: $83.03
20 525464701 HHFS 5/16-18 X 3/4 Price: $2.99
20 67-2280 GASKET Price: $8.62
21 596434301 Bolts This part replaces 874780844. Price: $2.99
21 67-2350 PLUG Price: $2.53
22 107-4803 CAP-SEALING This part replaces 42-7080. Price: $14.47
22 874760620 BOLT This part replaces 874780620. Price: $4.99
23 596580801 Bolts This part replaces 874780516. Price: $2.99
23 67-2380 BUSHING Price: $3.80
24 596582201 Bolts This part replaces 874780524. Price: $2.99
24 67-2360 DISCONTINUED Price: Call Us
25 874780528 SCREW Price: $4.99
26 578296402 SCREW BUTTONHEAD 5/16-18X1-1/2 Price: $3.99
26 67-4340 SCREEN ASSEMBLY Price: $60.41
27 42-9650 NUT-HEX, JAM Price: $0.70
27 576850402 SCREW 5/16-18 X 1 3/4 BTN-HD Price: $3.99
28 510422702 Screws This part replaces 510422701. Price: $1.99
28 67-2370 BUSHING Price: $4.65
29 595901601 GSPW Bolts This part replaces 872140506. Price: $2.99
29 67-2260 IDLER SHAFT Price: $45.97
30 42-7190 DISCONTINUED Price: Call Us
30 596240701 Bolts This part replaces 539110303. Price: $3.99
31 108-3841 FILTER-OIL This part replaces 67-4330. Price: $10.81
31 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99
32 574822701 SCR #10-24 X .75 SKT HD BLK Price: $2.99
32 72-6990 O-RING Price: $6.31
33 112-8436 DISCONTINUED This part replaces 72-6040. Price: Call Us
33 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
34 539108010 NUT 1/2-13 HEX JM NYL Price: $2.99
34 72-6030 DISCONTINUED Price: Call Us
35 596040501 Hardware This part replaces 873800500. Price: $2.99
35 72-6980 DISCONTINUED Price: Call Us
36 218-579 TERMINAL-SPADE, MALE Price: $1.95
36 596039201 GSPW Hardware This part replaces 539990585. Price: $2.99
37 521996502 GSPW Nuts This part replaces 521996501. Price: $2.99
37 70-8530 DISCONTINUED Price: Call Us
38 596433701 GSPW Washers This part replaces 819141614. Price: $2.99
