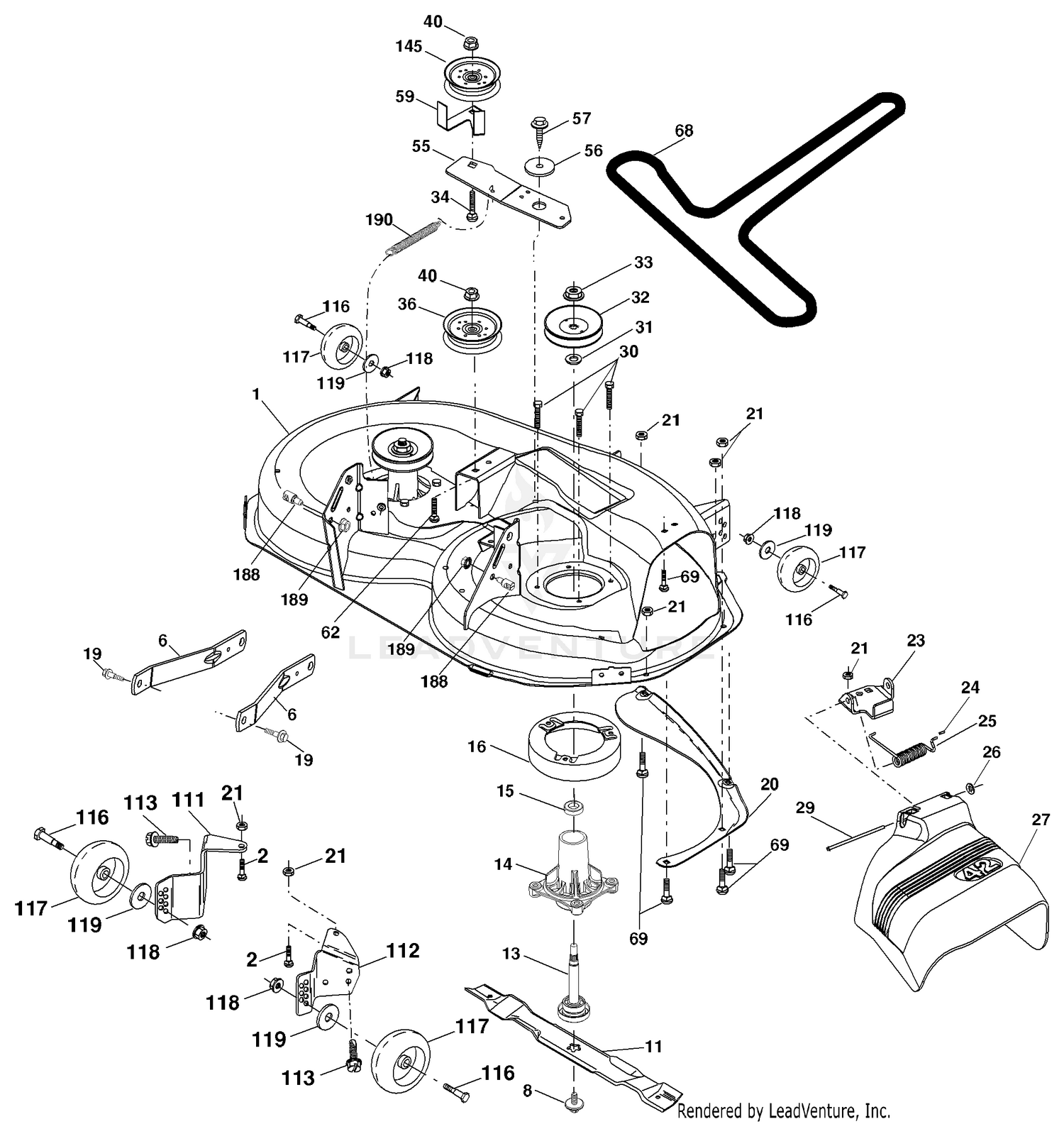

| Ref | Part Number | Description |
|---|
| 1 |
598602801 |
Decks This part replaces 532402999. Price: $349.99 |
| 1 |
66-0120 |
KNOB Price: $5.53 |
| 2 |
54-1451 |
CONTROL-CHOKE,THROTTLE Price: $63.22 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
33113-020 |
SCREW-HH Price: $0.26 |
| 4 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 6 |
113050 |
COVER-PTO SWITCH Price: $47.16 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 8 |
104-2541 |
SWITCH ASM This part replaces 88-9830. Price: $36.70 |
| 9 |
98-5320 |
DECAL - IGNITION Price: Call Us |
| 10 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 11 |
218-461 |
NUT-HH Price: $2.50 |
| 12 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 13 |
98-5319 |
DECAL - CONTROL PANEL Price: $45.51 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
98-5633 |
PLATE VALVE Price: Call Us |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
98-5346 |
DECAL - LIFT OPERATION Price: Call Us |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
116716 |
Switch-Clutch (Incl. Ref. #5, 18 19) Price: $55.58 |
| 18 |
218-498 |
NUT-LOCK This part replaces 105805. Price: $0.68 |
| 19 |
102950 |
TAB-WASHER Price: $1.63 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 20 |
98-5305 |
CONTROL ASM - THROTTLE Price: Call Us |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 111 |
531170801 |
SERVICE KIT BRKT.WHEEL.GAUGE B This part replaces 532404784. Price: $8.99 |
| 112 |
531170901 |
SERVICE KIT BRKT.WHEEL.GAUGE B This part replaces 532404785. Price: $8.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 118 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
