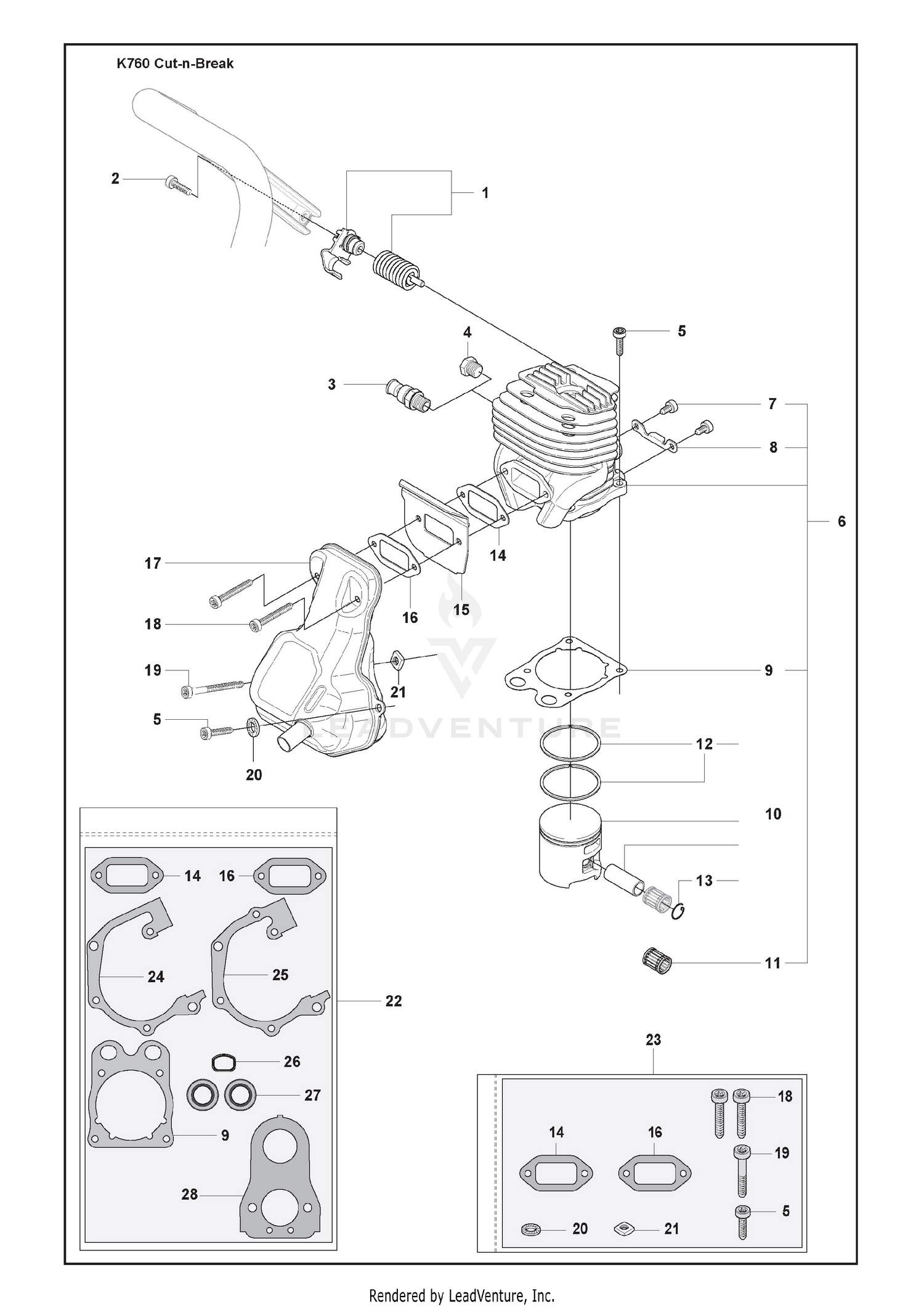

Cylinder Assy and Muffler and Muffler Mounting Kit and Gasket Kit
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505424501 | SPRING HOLDER Price: $32.99 |
| 1 | 59-7600 | PLUG Price: $28.97 |
| 2 | 544061201 | SCREW Price: $3.99 |
| 2 | 59-7610 | RING Price: $2.89 |
| 3 | 503715301 | DECOMPRESSION VALVE Price: $29.99 |
| 4 | 503552201 | CYLINDER PLUG Price: $6.99 |
| 5 | 503215325 | SCREW Price: $3.99 |
| 5 | 59-7640 | RING Price: $1.37 |
| 6 | 59-7650 | RING Price: $1.29 |
| 7 | 503215316 | SCREW Price: $3.99 |
| 7 | 60-5950 | WASHER Price: $11.55 |
| 8 | 506368801 | BRACKET Price: $3.99 |
| 9 | 506376701 | GASKET Price: $7.99 |
| 11 | 577572401 | NEEDLE BEARING PISTON PIN 12X1 This part replaces 503255601. Price: $11.99 |
| 12 | 522990101 | PISTON RING This part replaces 503289047. Price: $19.99 |
| 13 | 59-7720 | WASHER Price: $3.39 |
| 13 | 737431200 | WRIST PIN CLIP Price: $3.99 |
| 14 | 506412301 | GASKET Price: $4.99 |
| 14 | AU114313A1 | O-RING This part replaces 59-7780. Price: $2.40 |
| 15 | 58-6370 | WASHER Price: $40.36 |
| 15 | 588915101 | PLATE This part replaces 506375802. Price: $9.99 |
| 16 | 588932501 | GASKET K760 This part replaces 506376902. Price: $5.99 |
| 17 | 587668702 | MUFFLER KIT This part replaces 506364204. Price: $44.99 |
| 17 | 59-7750 | WASHER Price: $1.49 |
| 18 | 503215340 | SCREW Price: $3.99 |
| 18 | 59-7760 | WASHER Price: $1.51 |
| 19 | 503215356 | SCREW Price: $3.99 |
| 19 | 59-7770 | SPRING Price: $25.75 |
| 20 | 503230402 | DOUBLE WASHER Price: $5.99 |
| 21 | 503226504 | NUT Price: $4.99 |
| 24 | 506377002 | GASKET Price: $4.99 |
| 25 | 506377003 | GASKET Price: $4.99 |
| 26 | 544219302 | INSERT Price: $3.99 |
| 27 | 503260204 | SEALING RING Price: $11.99 |
