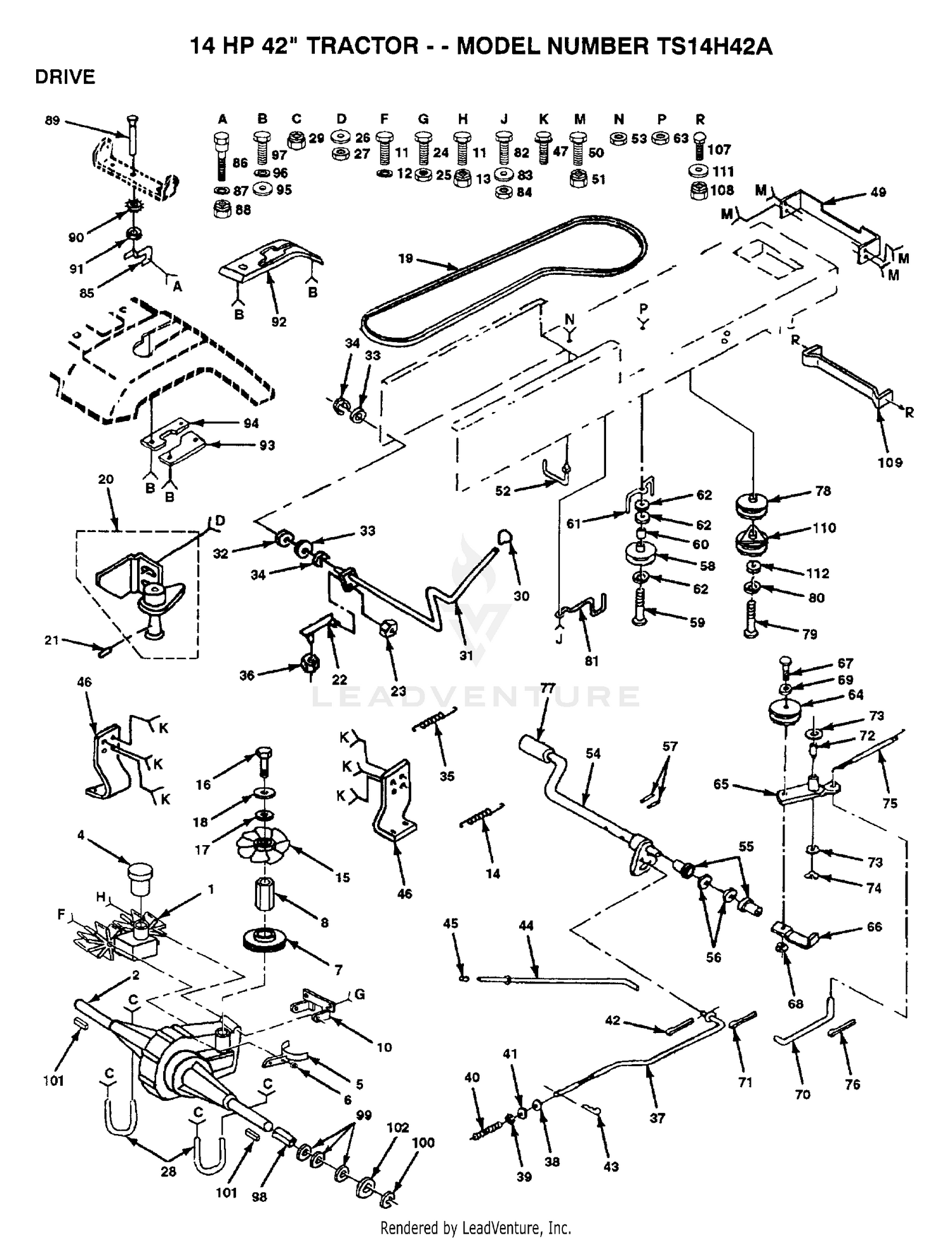

DRIVE

DRIVE

Parts (94)

RefPart NumberDescription
1 121430X PUMP.BDU-10S-114 Price: Call Us
2 121431X TRANSAXLE.AGRIFAB Price: Call Us
4 121323X PUMP.2003081. Price: Call Us
6 73680400 SUB= 73690400 Price: Call Us
8 121211X STANDOFF Price: Call Us
10 121188X BRACKET Price: Call Us
11 74780572 BOLT YT Price: Call Us
12 10040500 LOCKWASHER Price: Call Us
13 73680500 SUB= 73690500 Price: Call Us
14 110422X SUB= 146682 Price: Call Us
16 74780412 SUB= 74780414 Price: Call Us
17 19092016 WASHER Price: Call Us
18 10040400 LOCKWASHER Price: Call Us
19 137589 V-BELT Price: Call Us
020 98-9681 SPRING-GOVERNOR Price: $12.06
23 73040400 NUT WIZLOC T Price: Call Us
24 74760612 SUB= 74780612 Price: Call Us
25 73680600 SUB= 73690600 Price: Call Us
26 19131216 WASHER Price: Call Us
27 73680600 SUB= 73690600 Price: Call Us
28 121189X U BOLT Price: Call Us
29 73680600 SUB= 73690600 Price: Call Us
30 121466X KNOB Price: Call Us
34 12000003 RING T Price: Call Us
36 73040400 NUT WIZLOC T Price: Call Us
38 73800600 NUT Price: Call Us
39 73350600 NUT Price: Call Us
040 98-9692 ROLLER Price: $11.45
40 106888X SPRING ROD LT Price: Call Us
41 19131316 WASHER Price: Call Us
42 4921H SPRING.RETAINER Price: Call Us
43 4497H RETAINER M Price: Call Us
44 133261 BRAKE PARK ROD Price: Call Us
45 071673 CAP PARKING BRAKE Price: Call Us
47 17490616 SCREW GTV Price: Call Us
49 138307 BRKT.MOUNTING Price: Call Us
050 105-3743 LEVER-FORK Price: $20.27
50 72110606 BOLT Price: Call Us
51 73680600 SUB= 73690600 Price: Call Us
53 73680600 SUB= 73690600 Price: Call Us
54 122424X SUB= 149001 Price: Call Us
55 120183X NYLON BEARING Price: Call Us
56 19211616 WASHER LT Price: Call Us
57 1572H SUB= 2882J Price: Call Us
58 123674X PULLEY.IDLER.FLAT Price: Call Us
59 74760644 BOLT Price: Call Us
060 98-9566 SHAFT-LEVER, FORK Price: $23.27
60 4470J SPACER T Price: Call Us
61 109070X BELT KEEPER LT Price: Call Us
62 19131312 WASHER Price: Call Us
63 73680600 SUB= 73690600 Price: Call Us
64 127783 SUB= 139245 Price: Call Us
65 123789X ARM IDLER Price: Call Us
66 123205X RETAIN BELT Price: Call Us
67 74760624 SUB= 74930624 Price: Call Us
68 73680600 SUB= 73690600 Price: Call Us
69 19131316 WASHER Price: Call Us
070 98-9593 WASHER-PLAIN Price: $2.33
71 76020412 COTTER PIN Price: Call Us
73 110812X WASHER LT Price: Call Us
74 12000039 KLIP RING Price: Call Us
76 76020412 COTTER PIN Price: Call Us
77 8883R PEDAL COVER T Price: Call Us
78 136905 PULLEY ENGINE Price: Call Us
79 M010110110 SUB= M747810110 Price: Call Us
080 98-9570 BEARING-MINIATURIZE Price: $13.60
80 10040700 LOCKWASHER Price: Call Us
81 129921 KEEPER.BELT.ENG.L Price: Call Us
82 74760616 BOLT Price: Call Us
83 19131312 WASHER Price: Call Us
84 73680600 SUB= 73690600 Price: Call Us
86 7605J BOLT T Price: Call Us
87 110739X WASHER T Price: Call Us
88 73680400 SUB= 73690400 Price: Call Us
090 98-9369 CLIP-CIRCULAR, EXTERNAL Price: $0.70
90 11050600 LOCKWASHER Price: Call Us
91 73610600 SUB= 7810H Price: Call Us
95 19091216 WASHER PM Price: Call Us
96 10040400 LOCKWASHER Price: Call Us
97 74760408 SUB= 74230408 Price: Call Us
98 121199X SPACER SPLIT Price: Call Us
99 121749X WASHER Price: Call Us
100 12000001 E-RING LT Price: Call Us
100 130-8182 KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53
101 123583X SQUARE KEY Price: Call Us
102 121748X WASHER Price: Call Us
107 72140506 BOLT Price: Call Us
108 73680500 SUB= 73690500 Price: Call Us
109 137141 BRACKET.ASM.MTG Price: Call Us
110 137140 SUB= 142600 Price: Call Us
110 98-9682 GASKET Price: $0.95
111 19111012 WASHER T Price: Call Us
120 98-9351 BOLT Price: $0.98
130 98-9567 COLLAR Price: $3.78
