Home / OPE / Engines / 21549142 - Ariens 159cc Vert. ES / 915178 (000101 - 034999) ZT 42 Kohler / Engine, Exhaust, Belts And Idlers

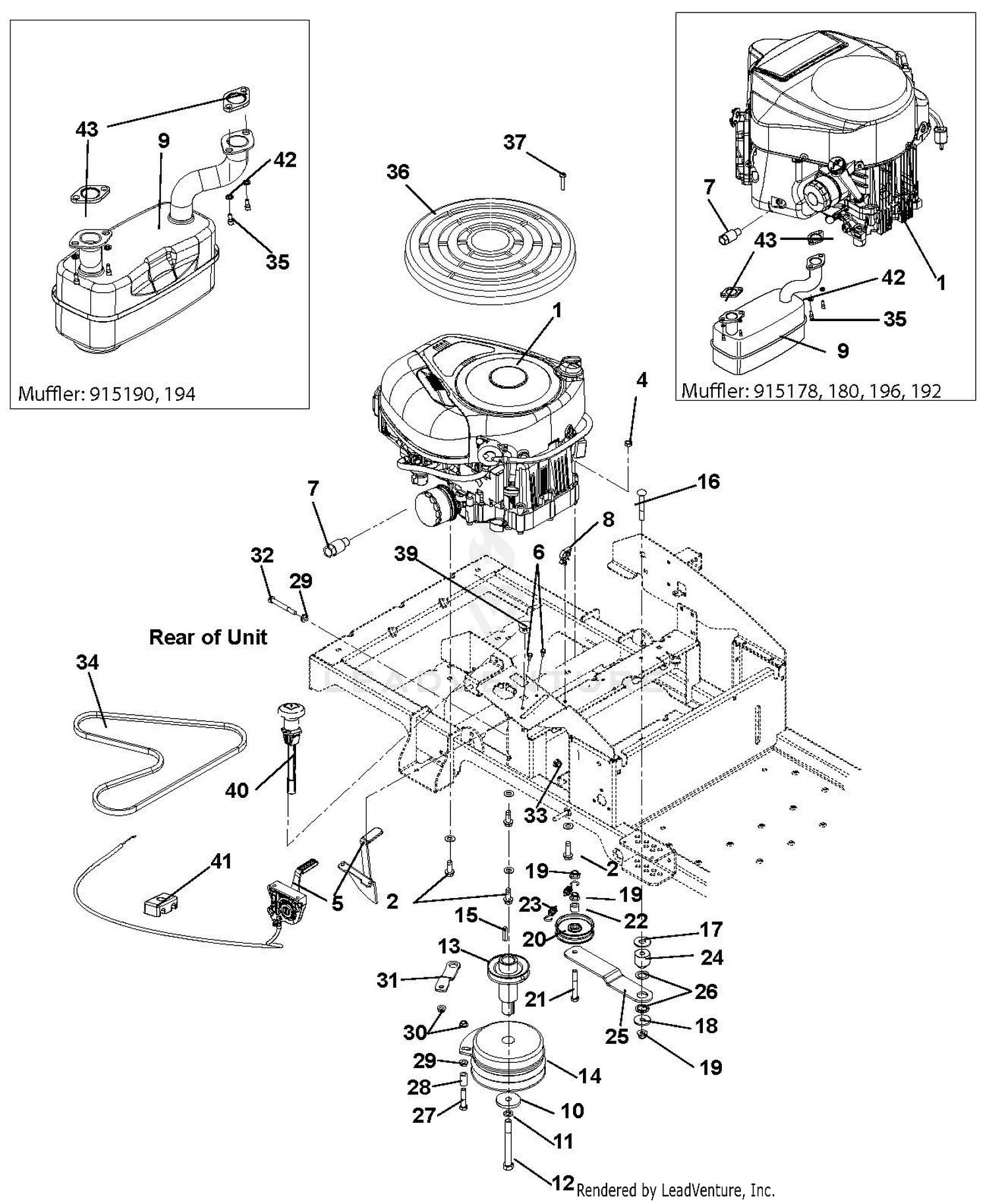

Engine, Exhaust, Belts And Idlers

Engine, Exhaust, Belts And Idlers

Parts (31)

RefPart NumberDescription
2 07400128 SCR,TAP .375-16X1.25HWH TR ZCC This part replaces 07414700. Price: $2.95
4 06500914 NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95
6 07400130 SCR,TAP #10-24X.50 HWH TR ZCC This part replaces 07415800. Price: $1.95
7 03943600 DRAIN, OIL Price: $13.95
10 06401111 WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95
11 06300121 WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45
12 05901821 BLT, HEX .44-20X4.50 G8 ZCC This part replaces 05966700. Price: $6.45
13 07338600 WLDMT, CRANKSHAFT EXTENSION Price: $76.45
14 03972700 CLUTCH, 105 FT*LB MONO POLE Price: $203.95
15 06603400 KEY-SQ .25 X 1.25 X .25 SAE Price: $3.45
16 06200316 BLT, RHSN .38-16X2.75 G5 ZCC This part replaces 06225400. Price: $3.95
17 06401012 WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45
18 06401121 WSHR,FLT .406X1.375X.135 ZCC This part replaces 06442400. Price: $5.45
19 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
20 07355900 PULLEY, IDLER 2.75" FLAT This part replaces 07300221. Price: $30.95
21 05901611 BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95
22 08553700 BSHG-SLV .391X.688X.52 PM Price: $5.45
23 08300512 SPRING, EXTENSION Price: $15.45
24 03961100 SPACER, GROUND DRIVE IDLER Price: $5.45
25 03961067 IDLER ARM, GROUND DRIVE Price: $18.10
26 03960700 BUSHING, IDLER ARM Price: $5.95
27 05901418 SCR-CAP .31-18X1 3/4 S/HD YWZC Price: $2.45
28 03980200 SPACER, RUBBER 5/16 IDX1.0 LG Price: $2.45
29 06500815 NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45
30 06500904 NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95
31 03956751 BRKT, CLUTCH STOP Price: $10.45
32 05901807 BLT, HEX .31-18X2.75 G5 ZCC This part replaces 05960600. Price: $2.45
33 06500809 NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45
34 07200010 V-BELT, HA-RAW EDGE Price: $32.95
35 05901827 BLT, SHCS .312-18X.75 ZCC This part replaces 05933100. Price: $2.45
42 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
