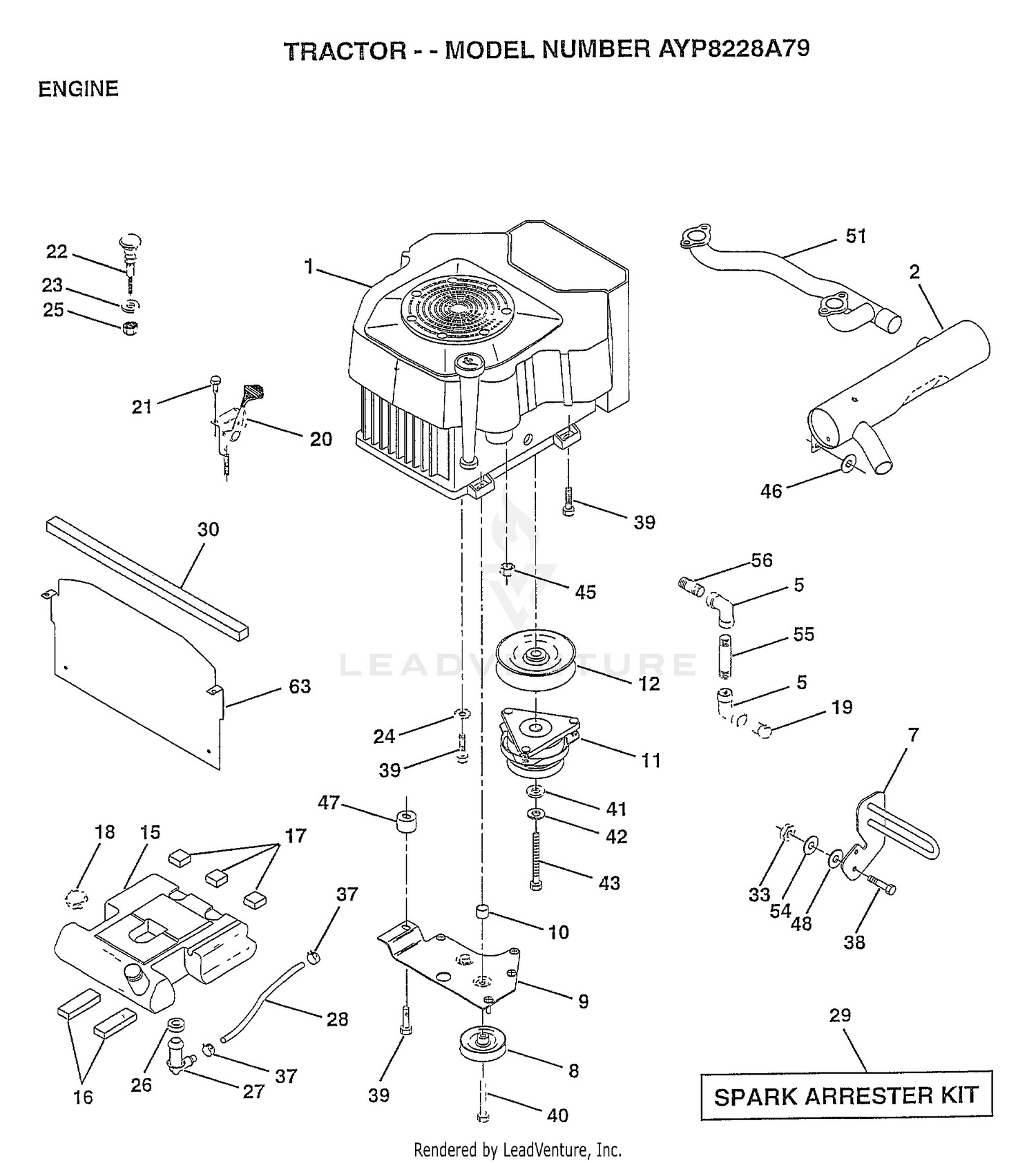

| Ref | Part Number | Description |
|---|
| 1 |
139-7798-03 |
PTO SHAFT This part replaces 92-8855-03. Price: $527.02 |
| 1 |
CV22SPS-67527 |
ENGINE Price: Call Us |
| 2 |
152947 |
MUFFLER ASM. Price: Call Us |
| 2 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 3 |
323-10 |
SCREW-HH Price: $0.89 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
13200300 |
ELBOW Price: Call Us |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
151396 |
GUARD.MUFFLER.ASM Price: Call Us |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
121361X |
SUB= 139123 Price: Call Us |
| 8 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 9 |
150828 |
KEEPER ASM BELT Price: Call Us |
| 9 |
63-6240 |
V-BELT Price: $54.64 |
| 10 |
105432X |
BUSHING. Price: Call Us |
| 10 |
323-18 |
SCREW-HH Price: $0.82 |
| 11 |
140923 |
SUB= 150283 Price: Call Us |
| 11 |
29-4730 |
WASHER-FLAT Price: $13.10 |
| 12 |
143996 |
PULLEY.ENG.CLUTCH Price: Call Us |
| 12 |
94-7422-03 |
PULLEY-PTO Price: $249.24 |
| 13 |
92-8751-03 |
PTO BEARING BRACKET ASM Price: $56.99 |
| 14 |
84-7580 |
PLATE-SUPPORT, BUSHING Price: $74.62 |
| 15 |
151346 |
TANK FUEL REAR Price: Call Us |
| 15 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 16 |
109227X |
PAD IDLER TI Price: Call Us |
| 16 |
92-8799 |
BEARING-FLANGE Price: $126.15 |
| 17 |
106082X |
PAD-SPACER LT Price: Call Us |
| 17 |
322-9 |
SCREW-HH Price: $3.09 |
| 18 |
140527 |
CAP ASM FUEL Price: Call Us |
| 18 |
322-14 |
SCREW-HH Price: $1.01 |
| 19 |
13290300 |
PLUG T Price: Call Us |
| 19 |
54-7950 |
PTO DRIVE SHAFT ASM Price: $809.32 |
| 20 |
132747 |
SUB= 532132748 Price: Call Us |
| 20 |
63-8410 |
WASHER Price: $1.76 |
| 21 |
17720410 |
SCREW LT Price: Call Us |
| 21 |
63-9750 |
MOUNT Price: $18.92 |
| 22 |
132781 |
CHOKE CONTROL Price: Call Us |
| 22 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 23 |
19131316 |
WASHER Price: Call Us |
| 23 |
3272-15 |
PIN-COTTER Price: $0.47 |
| 24 |
11050600 |
LOCKWASHER Price: Call Us |
| 24 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 25 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 26 |
3645J |
BUSHING OUTLET T Price: Call Us |
| 26 |
46-3380 |
BOLT-SHOULDER Price: $9.57 |
| 27 |
139277 |
STEM.TANK.FUEL Price: Call Us |
| 27 |
2412-102 |
CLAMP-R Price: $6.85 |
| 28 |
7834R |
SUB= 8542R Price: Call Us |
| 29 |
132920 |
SPARK ARREST KIT Price: Call Us |
| 30 |
105037X |
FOAM-STRIP LT Price: Call Us |
| 33 |
73800600 |
NUT Price: Call Us |
| 37 |
123487X |
HOSE CLAMP Price: Call Us |
| 39 |
17490636 |
SCREW.3/8-16X2.25 Price: Call Us |
| 40 |
17490664 |
SCREW.TT.3/8-16X4 Price: Call Us |
| 41 |
126197X |
WASHER Price: Call Us |
| 42 |
10040700 |
LOCKWASHER Price: Call Us |
| 43 |
150280 |
BOLT.7/16-20X4.25 Price: Call Us |
| 45 |
128861 |
NUT Price: Call Us |
| 46 |
19131616 |
WASHER HYT Price: Call Us |
| 47 |
142040 |
SPACER.ENGINE Price: Call Us |
| 48 |
19132007 |
WASHER T Price: Call Us |
| 51 |
152946 |
PIPE CROSSOVER Price: Call Us |
| 54 |
19131414 |
WASHER Price: Call Us |
| 55 |
13090336 |
SUB= 13280336 Price: Call Us |
| 56 |
13090308 |
NIPPLE.PIPE Price: Call Us |
