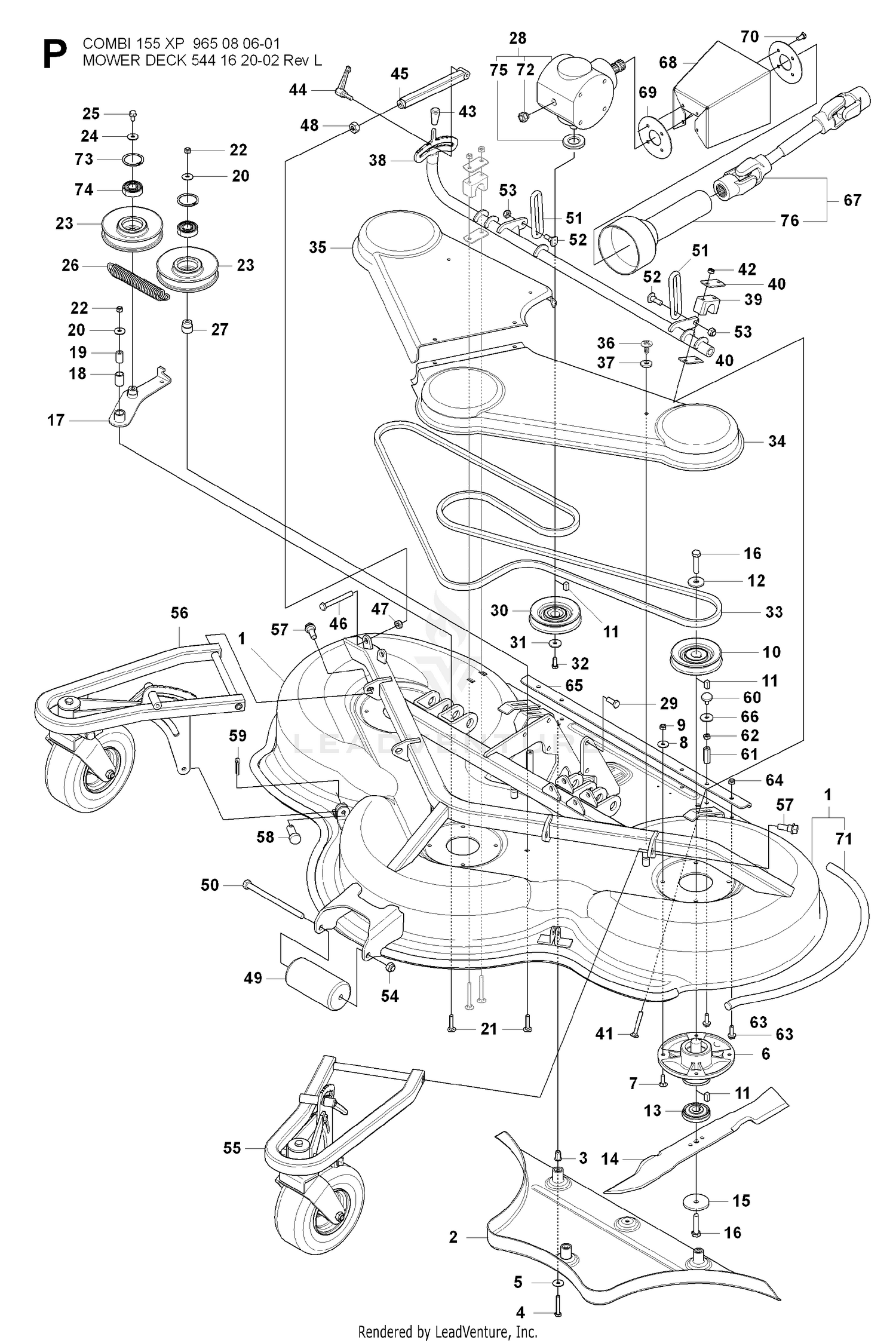

61"/155CM CUTTING DECK
Parts (96)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-3800 | CRANKSHAFT ASM Price: $2,012.61 |
| 1 | 544162901 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 125-6995 | PIN Price: $5.45 |
| 2 | 544166401 | PLUG ASSEMBLY Price: $649.99 |
| 3 | 506916203 | BLIND RIVET NUT Price: $7.99 |
| 4 | 125-6937 | GEAR Price: $205.45 |
| 4 | 725246151 | BOLT Price: $4.99 |
| 5 | 125-7185 | KEY Price: $2.16 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 535428602 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 125-7182 | PIN-SPRING Price: $3.77 |
| 7 | 535423801 | BOLT Price: $4.99 |
| 8 | 127-3801 | PULLEY-V Price: $271.03 |
| 8 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 9 | 125-7109 | WASHER Price: $19.67 |
| 9 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 10 | 125-6956 | BOLT Price: $40.22 |
| 10 | 544255601 | NEEDS DESCRIPTION Price: Call Us |
| 11 | 125-6951 | BOLT Price: $6.77 |
| 11 | 506533501 | KEY Price: $3.99 |
| 12 | 127-3802 | FLYWHEEL ASM Price: $1,789.63 |
| 12 | 535429201 | Price: Call Us |
| 13 | 535504201 | Price: Call Us |
| 14 | 125-6943 | GEAR Price: $137.73 |
| 14 | 586198910 | BLADE Price: $27.99 |
| 15 | 506792302 | WASHER Price: $12.99 |
| 16 | 127-4766 | PISTON ASM Price: $453.85 |
| 16 | 725254251 | Screw Price: $4.99 |
| 17 | 544175501 | BELT TENSIONER CUTTING DECK Price: $74.99 |
| 18 | 127-4751 | PISTON RING ASM Price: $117.24 |
| 18 | 506986103 | Price: $8.66 |
| 19 | 506992001 | BUSHING Price: $9.99 |
| 20 | 734116441 | SPACER Price: $3.99 |
| 21 | 727645951 | Screw Mvbf 8 X 40 Price: $2.28 |
| 22 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 23 | 544396501 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 125-7030 | PIN Price: $43.23 |
| 24 | 734116441 | SPACER Price: $3.99 |
| 25 | 125-7180 | RING Price: $2.39 |
| 25 | 725244961 | BOLT FLANGE - M8X16 Price: $7.99 |
| 26 | 125-7242 | CONNECTING ROD ASM Price: $467.89 |
| 26 | 544218105 | DRAW SPRING L=122 Price: $14.99 |
| 27 | 535484801 | BUSHING Price: $22.99 |
| 28 | 544183401 | BEVEL GEAR Price: $1,199.99 |
| 29 | 125-6955 | BOLT Price: $20.62 |
| 29 | 725249371 | Screw M10x25 Price: $1.82 |
| 30 | 125-7018 | PIN-CRANK Price: $20.94 |
| 30 | 544184001 | PULLEY SPB DP106 Price: $54.99 |
| 31 | 544221601 | NEEDS DESCRIPTION Price: Call Us |
| 32 | 125-6997 | PIN-PISTON Price: $21.73 |
| 33 | 125-7019 | PIN-CRANK (.25) Price: $20.96 |
| 33 | 589535001 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 544184701 | BELT COVER C155 L Price: $119.99 |
| 35 | 127-4767 | PISTON ASM (0.25 O S) Price: $552.83 |
| 35 | 544184801 | NEEDS DESCRIPTION Price: Call Us |
| 36 | 506982601 | SCREW Price: $5.99 |
| 37 | 506559701 | WASHER Price: $4.99 |
| 38 | 544175201 | CROSS BAR Price: $119.99 |
| 39 | 501976801 | BEARING COVER Price: $27.99 |
| 40 | 506813801 | PLATE Price: $5.99 |
| 41 | 535423802 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 43 | 535438201 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 544196801 | TURNING KNOB M 8 Price: $17.99 |
| 45 | 544201101 | PARALLEL ROD NOT IN USE Price: $59.99 |
| 46 | 725250971 | SCREW Price: $6.99 |
| 47 | 732212001 | NUT Price: $3.99 |
| 48 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 49 | 539002472 | ROLLER This part replaces 544185401. Price: $77.99 |
| 50 | 544221001 | Price: Call Us |
| 51 | 544185001 | LINK Price: $17.99 |
| 52 | 544214301 | SCREW LINK Price: $11.99 |
| 53 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 54 | 732252201 | Nut Price: $2.65 |
| 55 | 544173201 | WHEEL SUSPENSION LEFT Price: $699.99 |
| 56 | 544173202 | WHEEL SUSPENSION RIGHT Price: $699.99 |
| 57 | 506895801 | BOLT Price: $6.99 |
| 58 | 721845601 | Price: $16.32 |
| 59 | 721618301 | Split Pin Price: $1.99 |
| 60 | 501976601 | ANTIVIBRATION ELEMENT Price: $8.99 |
| 61 | 544317601 | NEEDS DESCRIPTION Price: Call Us |
| 62 | 731231801 | NUT Price: $3.99 |
| 63 | 506570104 | BOLT Price: $4.99 |
| 64 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 65 | 501976701 | REINFORCING PLATE DECK SHELL Price: $35.08 |
| 66 | 734116441 | SPACER Price: $3.99 |
| 67 | 525571201 | NEEDS DESCRIPTION Price: Call Us |
| 68 | 522750001 | NEEDS DESCRIPTION Price: Call Us |
| 69 | 522750101 | NEEDS DESCRIPTION Price: Call Us |
| 70 | 725244951 | BOLT - M8X16 This part replaces 725244971. Price: $2.99 |
| 71 | 522523601 | NEEDS DESCRIPTION Price: Call Us |
| 72 | 525249701 | NEEDS DESCRIPTION Price: Call Us |
| 73 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 74 | 738220419 | BALL-BEARING 6204-2RS Price: $14.99 |
| 75 | 525249801 | NEEDS DESCRIPTION Price: Call Us |
| 76 | 522750201 | NEEDS DESCRIPTION Price: Call Us |
