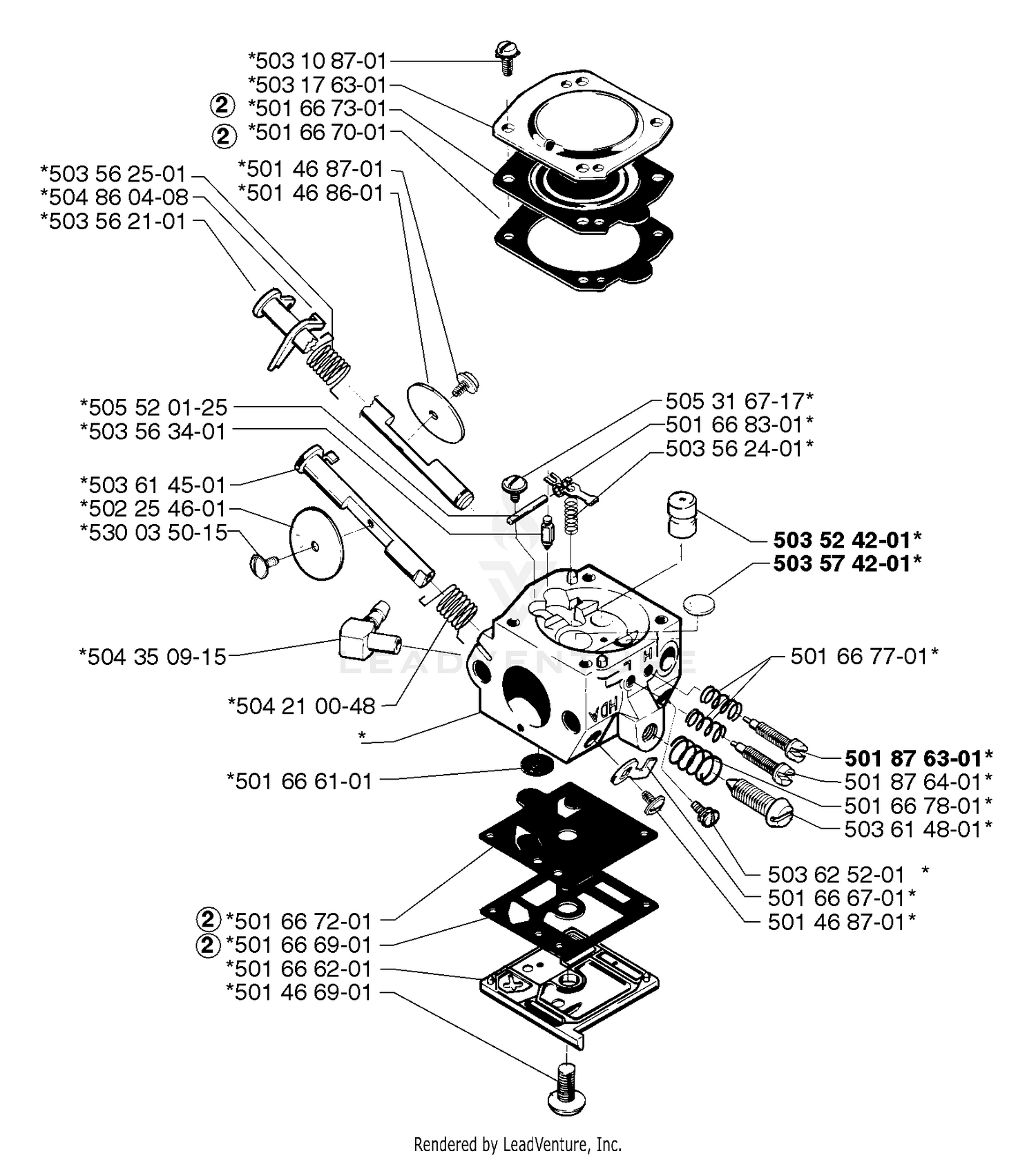

| Ref | Part Number | Description |
|---|
| 1 |
2412-133 |
CLAMP-R Price: $3.19 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
322-2 |
SCREW-HH Price: $0.69 |
| 4 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 5 |
85-9660-03 |
PLATE-ADJUSTMENT, SEAT This part replaces 85-9660. Price: $74.11 |
| 6 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 8 |
98-0977 |
DECAL-SERVICE Price: $53.97 |
| 11 |
98-0979 |
LYNCH PIN ASM Price: $20.82 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
51-0780 |
SLIDER-SEAT Price: $116.02 |
| 17 |
32141-36 |
SCREW-ADJUSTMENT, LEVEL Price: $12.75 |
| 18 |
3218-2 |
NUT-JAM Price: $0.25 |
| 19 |
51-0790 |
ADJUSTER-SEAT, LH Price: $127.92 |
| 20 |
63-8410 |
WASHER Price: $1.76 |
| 21 |
117-2453 |
SEAT KIT This part replaces 92-8976. Price: $303.45 |
| 25 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 501466901 |
501466901 |
SCREW Price: $7.99 |
| 501468601 |
507430749 |
SHUTTER-CHOKE This part replaces 501468601. Price: $2.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666701 |
501666701 |
THROTTLE STOP Price: $0.83 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667001 |
501667001 |
GASKET, METERING SIDE Price: $6.99 |
| 501667201 |
502254701 |
PUMP DIAPHRAGM This part replaces 501667201. Price: $19.99 |
| 501667301 |
501667301 |
METERING DIAPHRAGM Price: $64.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 501876301 |
501876301 |
NEEDLE HIGH SPEED Price: $2.99 |
| 501876401 |
501876401 |
NEEDLE IDLE Price: $2.41 |
| 502254601 |
502254601 |
THROTTLE FLAP Price: $2.54 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |
| 503524201 |
503524201 |
NOZZLE Price: $8.58 |
| 503562101 |
503562101 |
Choke Shaft Price: $3.68 |
| 503562401 |
503562401 |
SPRING Price: $6.99 |
| 503562501 |
537158101 |
SPRING This part replaces 503562501. Price: $9.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503574201 |
503574201 |
WELCH PLUG Price: $6.99 |
| 503614501 |
503614501 |
Price: $5.31 |
| 503614801 |
503614801 |
IDLE SPEED SCREW Price: $2.99 |
| 503625201 |
503625201 |
SCREW Price: $0.55 |
| 504210048 |
504210048 |
THROTTLE SPRING Price: $0.53 |
| 504350915 |
504350915 |
Nipple Price: $1.23 |
| 504860408 |
537158201 |
LEVER This part replaces 504860408. Price: $3.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
