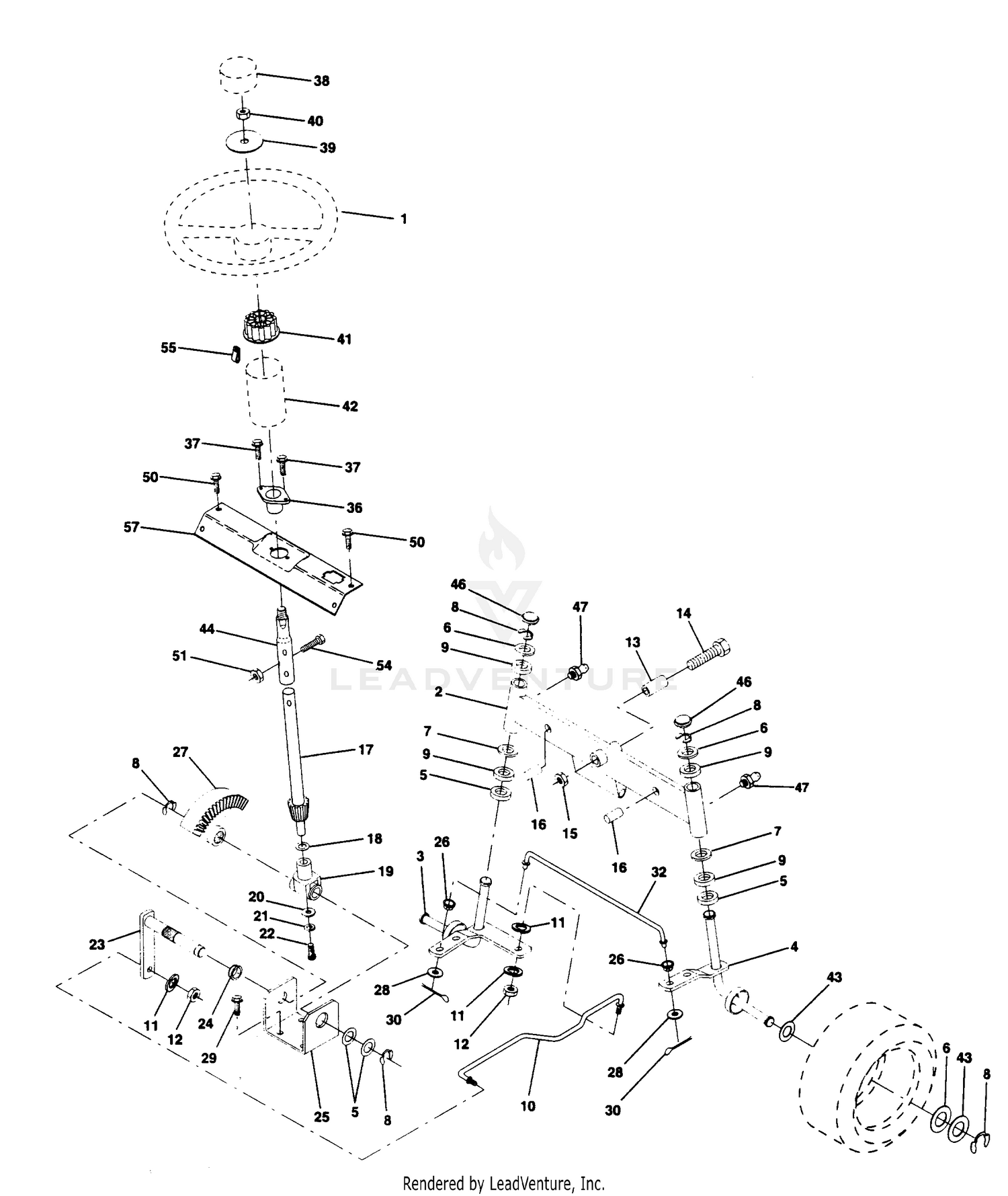

| Ref | Part Number | Description |
|---|
| 1 |
532150546 |
STEERING WHEEL KIT This part replaces 532121472. Price: $59.99 |
| 2 |
532142033 |
Axle Asm Fr LT W/gzks 38/42 (AYP part number) Price: $59.99 |
| 3 |
532135227 |
Spindle Asm LH (AYP part number) Price: $15.39 |
| 4 |
532135228 |
Spindle Asm RH Price: $12.97 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 6 |
532121748 |
Washer 25/32 X 1-5/8 X 16 Ga (AYP part number) Price: $1.99 |
| 7 |
819272016 |
Washer 27/32 X 1-1/4 X 16 Ga (AYP part number) Price: $2.99 |
| 8 |
812000029 |
Ring Klip #t5304-75 (AYP part number) Price: $1.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 10 |
532130468 |
Link Drag Sol Ball Jt 20 064 (AYP part number) Price: $49.99 |
| 11 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 12 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 13 |
532110438 |
Spacer Bearing Axle Front (AYP part number) Price: $5.99 |
| 14 |
874011056 |
Bolt Hex 5/8-11 Unc X 3-1/2 (AYP part number) Price: $4.99 |
| 15 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873901000. Price: $2.99 |
| 16 |
532132624 |
Pin Axle 5/8 X 1 55/1 54 Lg (AYP part number) Price: $2.42 |
| 17 |
532156546 |
SHAFT ASM STEERING This part replaces 532140176. Price: $29.99 |
| 18 |
532057079 |
Washer Thrust 515x 750x 033 (AYP part number) Price: $2.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $6.99 |
| 20 |
819091016 |
WASHER This part replaces 532126684. Price: $2.99 |
| 21 |
810040400 |
Washer Lock Hvy Helical 1/4 (AYP part number) Price: $3.99 |
| 22 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $2.99 |
| 23 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532127501. Price: $27.99 |
| 24 |
532109816 |
Nyliner Snap In (AYP part number) Price: $2.99 |
| 25 |
532124036 |
Bracket Steering (AYP part number) Price: $4.99 |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) This part replaces 543126847. Price: $2.99 |
| 27 |
532136874 |
Gear Sector (AYP part number) Price: $49.99 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 30 |
876020412 |
Pin Cotter 1/8 X 3/4 Cad (AYP part number) Price: $3.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $12.99 |
| 36 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $3.99 |
| 37 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 38 |
532150546 |
STEERING WHEEL KIT This part replaces 532126805. Price: $59.99 |
| 39 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $3.99 |
| 40 |
532124701 |
Nut Lock Center 3/8-24unf (AYP part number) Price: $5.99 |
| 41 |
532104820 |
Adaptor Wheel Strg 640/ 635id (AYP part number) Price: $9.99 |
| 42 |
532140216 |
Boot Steering Shaft (AYP part number) Price: $2.38 |
| 43 |
532121749 |
Washer 25/32 X 1 1/4 X 16 Ga (AYP part number) Price: $1.99 |
| 44 |
532140171 |
Shaft Extention Steering (AYP part number) Price: $19.99 |
| 46 |
532121232 |
Cap Spindle Fr Top Blk (AYP part number) Price: $1.99 |
| 47 |
532124836 |
Fitting Grease (AYP part number) Price: $5.99 |
| 50 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 51 |
873800500 |
Nut Lock Hex w/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 54 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD This part replaces 874780520. Price: $2.99 |
| 55 |
532140285 |
Clip Tinnerman (AYP part number) Price: $2.99 |
