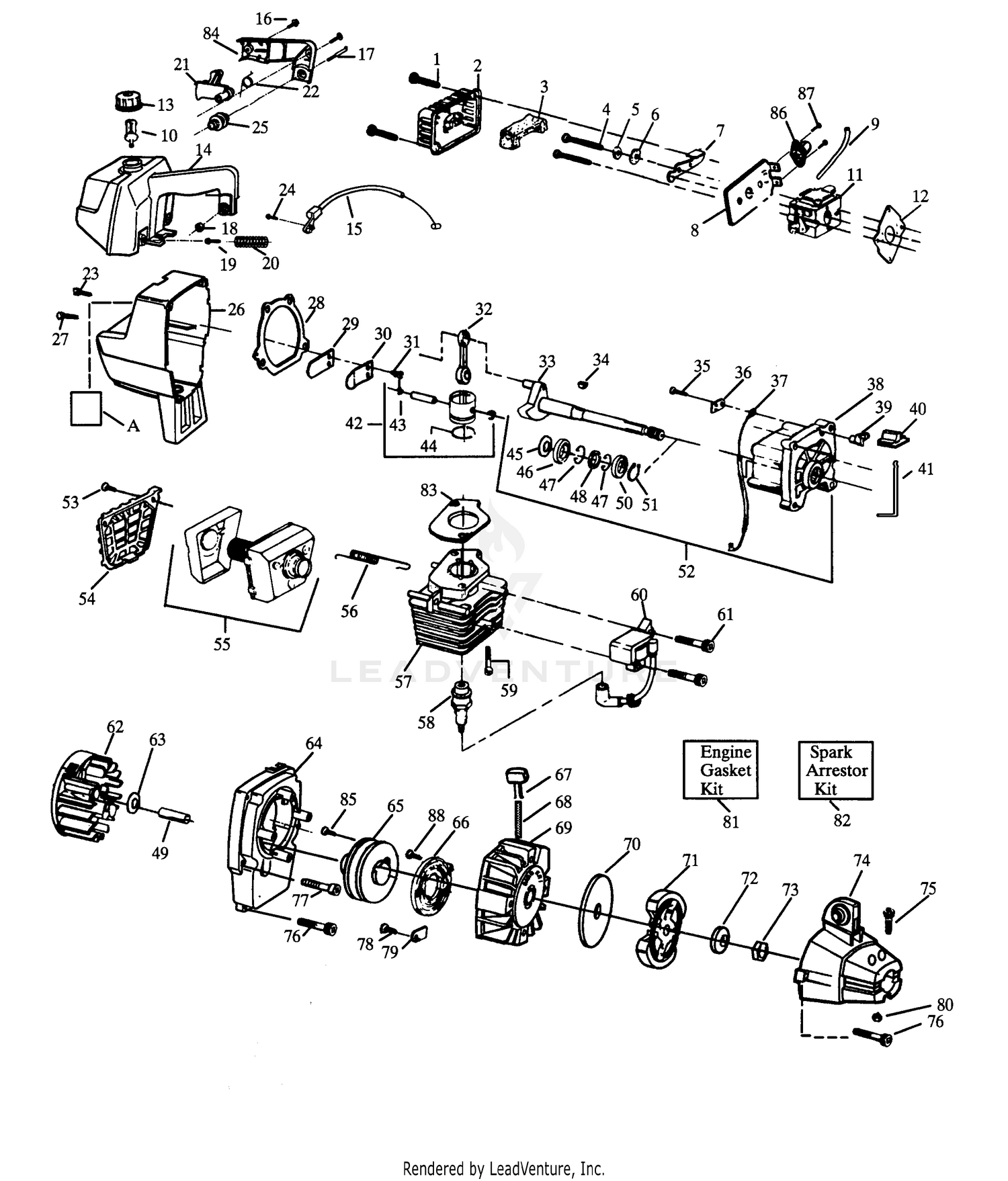

| Ref | Part Number | Description |
|---|
| 0 |
530014055 |
Carton Contents Bag, MODEL GTI 18 Price: $3.33 |
| 0 |
530014057 |
Carton Contents Bag, MODELS GTI 18K (Type 1 & 2)& GTI 18KT Type 2 Price: $3.33 |
| 0 |
530014845 |
Carton Contents Bag, MODEL GTI 18T Price: $3.33 |
| A |
530027970 |
MODELS GTI 18 & GTI 18T Type 1 Price: $1.99 |
| A |
530037742 |
MODEL GTI 18KT Type 2 (Not a serviceable part) Price: $3.33 |
| A |
530038843 |
MODEL GTI 18KT Type 3 Decal (Not a serviceable part) Price: $1.99 |
| 1 |
112-1705 |
ROLLER-WIEHLE, PLASTIC Price: $276.69 |
| 1 |
530015773 |
Screw Price: $1.99 |
| 2 |
112-1707 |
SHAFT-ROLLER, WIEHLE Price: $73.35 |
| 2 |
530027529 |
Air Filter Cover Price: $3.42 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
530027530 |
Air Filter Price: $1.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
530015849 |
Screw Price: $1.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
530015852 |
Spacer Price: $1.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING This part replaces 114-3745. Price: $24.46 |
| 6 |
530015254 |
Wave Washer Price: $1.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
530038103 |
Choke Shutter Price: $1.99 |
| 8 |
530027527 |
MODELS GTI 18,GTI 18T,GTI 18KT Price: $2.99 |
| 8 |
530037930 |
MODELS GTI 18KT Type 3 Price: $2.99 |
| 9 |
530069247 |
Fuel Line Price: $3.99 |
| 9 |
530069571 |
MODEL GTI 18KT Type 2 & 3 Price: $2.99 |
| 10 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 11 |
530069651 |
MODELS GTI 18 & GTI 18T Type 2 & 3 Price: $18.32 |
| 11 |
545081825 |
KIT CARBURETOR ASSY This part replaces 530035259. Price: $49.99 |
| 12 |
530019156 |
Carburetor Gasket Price: $3.99 |
| 13 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 14 |
530029552 |
MODELS GTI 18 & GTI 18K Type 1 Price: $23.40 |
| 14 |
530047102 |
MODELS GTI 18 & GTI 18K Type 2 & 3 Price: $10.20 |
| 15 |
530037499 |
Throttle Cable Ass'y. Price: $3.99 |
| 16 |
530015805 |
Screw Price: $1.99 |
| 17 |
530015809 |
Screw Price: $0.99 |
| 18 |
530015807 |
Nut Price: $1.99 |
| 19 |
530015713 |
Screw Price: $1.99 |
| 20 |
530027926 |
Rear Isolator Spring Price: $1.99 |
| 21 |
530027924 |
Throttle Trigger Price: $0.99 |
| 22 |
530027925 |
Throttle Spring Price: $1.99 |
| 23 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 24 |
530015775 |
Screw Price: $1.99 |
| 25 |
530024256 |
Isolator Price: $3.99 |
| 26 |
530027923 |
Shroud Price: $8.24 |
| 27 |
530015771 |
Screw Price: $1.99 |
| 28 |
530019154 |
Gasket Price: $1.99 |
| 29 |
530027593 |
Reed Price: $1.99 |
| 30 |
530027594 |
Reed Stop Price: $1.99 |
| 31 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 32 |
530010960 |
Connecting Rod Ass'y. Price: $14.99 |
| 33 |
530010934 |
Crankshaft Ass'y. See Service Ref. 1 Price: $24.99 |
| 34 |
530015126 |
Flywheel Key Price: $1.99 |
| 35 |
530015780 |
Screw Price: $1.99 |
| 36 |
530027546 |
Switch Insulator Price: $2.99 |
| 37 |
530027547 |
Lead Wire Price: $1.99 |
| 39 |
530027545 |
Switch Ramp Price: $1.99 |
| 40 |
530038309 |
Switch Button Price: $1.99 |
| 41 |
530027959 |
Switch Spring Price: $1.99 |
| 43 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 44 |
530025875 |
Piston Ring Price: $4.99 |
| 46 |
530032103 |
Inner Bearing Price: Call Us |
| 47 |
530015787 |
Retaining Ring Price: $1.99 |
| 48 |
530019158 |
Crankshaft Seal Price: $2.99 |
| 49 |
530027511 |
Spacer Price: $4.99 |
| 50 |
530032102 |
Outer Bearing Price: $8.99 |
| 51 |
530015789 |
Crankshaft Retaining Ring Price: $2.99 |
| 53 |
530015717 |
Screw Price: $1.99 |
| 54 |
530027781 |
Muffler Guard Price: $1.99 |
| 55 |
530069310 |
Muffler Kit This part replaces 530069257. Price: $9.99 |
| 56 |
530036409 |
Muffler Spring Price: $1.99 |
| 57 |
530030077 |
MODELS GTI 18, GTI 18T, GTI 18K (CJ-14) Price: $2.27 |
| 57 |
530069626 |
Cylinder Price: $1.92 |
| 58 |
530030075 |
MODEL GTI 18T Type 3 (RCJ-8Y) Price: Call Us |
| 59 |
530015239 |
Screw Price: $1.99 |
| 60 |
530039134 |
Ignition Module Kit Price: $44.99 |
| 61 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 62 |
530039189 |
Flywheel Ass'y. Price: $22.99 |
| 63 |
530016030 |
Washer This part replaces 530347987. Price: $1.99 |
| 64 |
530027948 |
Fan Housing Price: $12.99 |
| 66 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 67 |
530027569 |
Starter Handle Price: $1.99 |
| 68 |
530069232 |
Rope Kit Price: $3.99 |
| 69 |
530014009 |
Pulley Housing Ass'y. Price: $5.84 |
| 70 |
530094189 |
Clutch Washer Price: $2.99 |
| 71 |
530069254 |
Clutch Ass'y. Kit Price: $8.99 |
| 72 |
530015796 |
Washer Price: $1.99 |
| 73 |
530001733 |
Nut Price: $2.99 |
| 74 |
530014010 |
Clutch Housing Price: $22.99 |
| 75 |
530015767 |
Screw Price: $1.99 |
| 76 |
530015770 |
Screw Price: Call Us |
| 77 |
530015769 |
Screw Price: $1.99 |
| 78 |
530015496 |
Screw Price: $1.99 |
| 79 |
530027523 |
Pulley Retainer Price: $2.99 |
| 80 |
530015768 |
Locknut Price: $1.99 |
| 81 |
530069276 |
Engine Gasket Kit (inc. 12,28,83) Price: $4.99 |
| 82 |
952701612 |
Spark Arrestor Kit Price: Call Us |
| 83 |
530019267 |
GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 84 |
530027917 |
Handle Cover Price: $22.99 |
| 85 |
530016080 |
Screw-Rope Retaining Price: $1.99 |
| 86 |
530038874 |
MODEL GTI 18T & GTI 18KT Type 2 & 3 Price: $5.99 |
| 87 |
530016091 |
MODELS GTI 18T & GTI 18KT Type 2 & 3 Price: $1.99 |
| 88 |
530015882 |
Screw-Starter Spring Type 3 Price: $1.99 |
