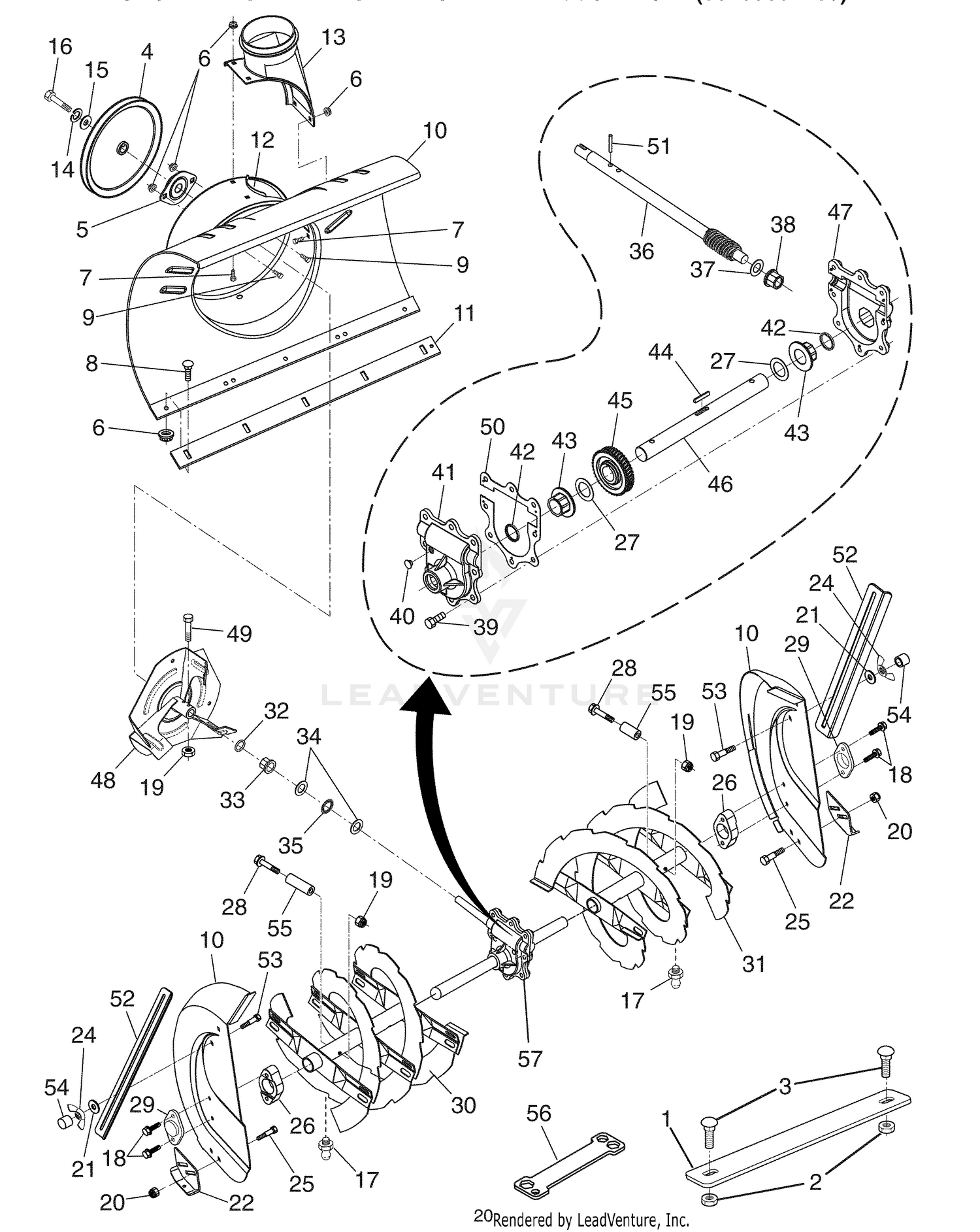

| Ref | Part Number | Description |
|---|
| 1 |
532182516 |
WEIGHT AUGER HOUSING 30 Price: $59.99 |
| 1 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 2 |
114-4680 |
TANK ASM This part replaces 93-2225. Price: $402.21 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 3 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 3 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 4 |
63-8410 |
WASHER Price: $1.76 |
| 5 |
110-4104 |
HOSE-FUEL This part replaces 93-2260. Price: $8.95 |
| 5 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 6 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 9 |
56-2520 |
FITTING-SHUT OFF, FUEL Price: $31.19 |
| 9 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 10 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 10 |
581708369 |
KIT.AUGER.HOUSING.404930X668 This part replaces 532407721. Price: $279.99 |
| 11 |
112-0212 |
FITTING-FUEL This part replaces 93-2299. Price: $46.70 |
| 11 |
532435830 |
BAR.SCRAPER.30.BLACK This part replaces 532407645. Price: $17.99 |
| 12 |
109-0309 |
HOSE-FUEL This part replaces 93-2230. Price: $18.99 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 13 |
94-1364-03 |
PLATE ASM This part replaces 94-1364. Price: $155.56 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 15 |
33114-016 |
SCREW-HH Price: $0.27 |
| 15 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 16 |
33115-025 |
SCREW-HH Price: $0.61 |
| 16 |
874940516 |
CAPSCREW.HX.HD.5/16-18X1.00.NY Price: $3.99 |
| 17 |
108-3283 |
HOSE-FUEL This part replaces 94-1348. Price: $4.60 |
| 17 |
532405637 |
GREASE FITTING Price: $3.99 |
| 18 |
110-7504 |
HOSE-FUEL This part replaces 94-4353. Price: $4.42 |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 19 |
93-2048 |
CAP-TANK, OVERFLOW Price: $39.28 |
| 20 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 21 |
532401347 |
WASHER.12021.438X.75X.06.PLS Price: $2.99 |
| 21 |
93-2049 |
TANK-OVERFLOW Price: $89.55 |
| 22 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 22 |
532407834 |
SKID PLATE Price: $17.99 |
| 23 |
93-2298 |
HOSE-FUEL Price: $10.13 |
| 24 |
532128638 |
NUT WING PM Price: $3.99 |
| 24 |
56-2230 |
HOSE-FUEL Price: $3.66 |
| 25 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 26 |
532188170 |
BEARING RETAINER, PLASTIC Price: $7.99 |
| 27 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 28 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 532198636. Price: $1.00 |
| 29 |
532187925 |
BEARING.BALL.AUGER.SHAFT Price: $54.99 |
| 30 |
532435545 |
AUGER.WELDMENT.RH.30.BB This part replaces 532407722. Price: $139.99 |
| 31 |
532435544 |
KIT.AUGER.30.LH.BB This part replaces 532407723. Price: $139.99 |
| 32 |
532407768 |
O-RING Price: $3.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $7.99 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
532407757 |
SHAFT, IMPELLER Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $22.99 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $4.99 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW This part replaces 532407760. Price: $3.99 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW This part replaces 532407761. Price: $22.99 |
| 42 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $4.99 |
| 43 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $29.99 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 45 |
598831601 |
Service Kit This part replaces 532407763. Price: $199.99 |
| 46 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $59.99 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) Price: $22.99 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX This part replaces 532407766. Price: $7.99 |
| 51 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 52 |
532435832 |
BAR.DRIFT.CUTTER.BLACK This part replaces 532184747. Price: $19.99 |
| 53 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 54 |
532198709 |
STOP.11261.PLASTIC.30X50L.RED Price: $5.99 |
| 55 |
532198638 |
SPACER.3943.SLEEVE.250X.47 Price: $5.99 |
| 56 |
532429112 |
WRENCH.SNOWTHROWER.ZINC.YZ This part replaces 532180684. Price: $3.99 |
