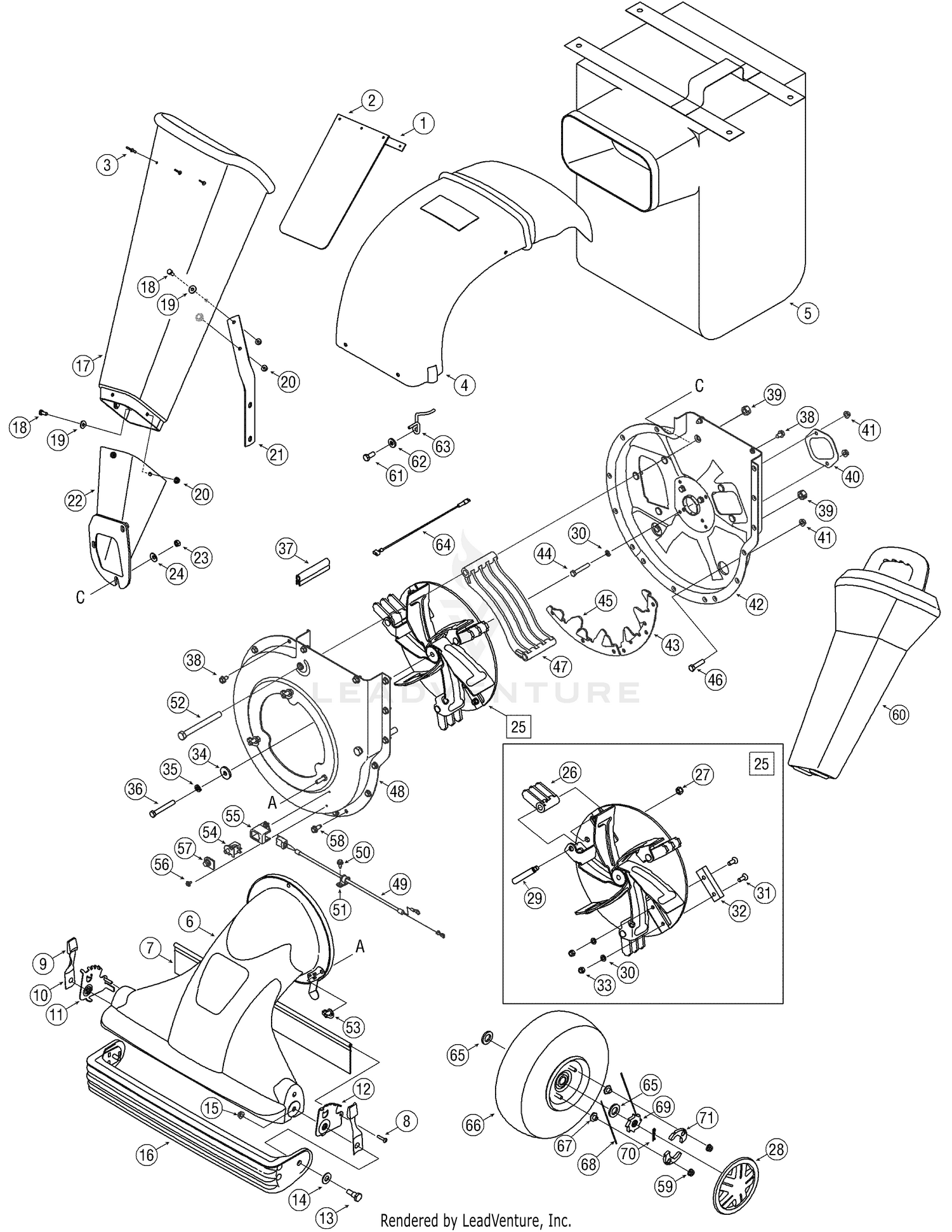

| Ref | Part Number | Description |
|---|
| 1 |
781-0633 |
Chute Flap Strip Price: $9.09 |
| 2 |
735-0249A |
CHUTE FLAP This part replaces 735-0249. Price: $21.78 |
| 3 |
728-0175 |
Pop Rivet Price: $4.04 |
| 4 |
731-1838A |
Discharge Chute Price: $170.15 |
| 5 |
964-04001 |
Bag This part replaces 764-04001. Price: $192.57 |
| 6 |
631-0086 |
NOZZLE ASSEMBLY (W/O LOGO BLACK) Not Available Price: |
| 7 |
731-1831 |
Nozzle Flap Price: $17.65 |
| 8 |
710-0969 |
Screw Price: $3.90 |
| 9 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 10 |
732-0754 |
Spring Lever Price: $8.58 |
| 11 |
781-0702-0637 |
Index Bracket RH This part replaces 781-0702. Price: $21.61 |
| 12 |
781-0703-0637 |
Index Bracket LH This part replaces 781-0703. Price: $21.14 |
| 13 |
738-0913 |
Shoulder Screw Price: $11.10 |
| 14 |
736-3084 |
Flat Washer.510 x 1.12 x.060 Price: $4.39 |
| 15 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 16 |
631-0049 |
DOOR ASSEMBLY (BLACK) Not Available Price: |
| 17 |
731-1574A |
Chipper Chute Price: $178.09 |
| 18 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 19 |
736-0173 |
Flat Washer.28 ID x.74 OD Price: $3.76 |
| 20 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 21 |
781-0780-0637 |
CHUTE BRACKET Not Available This part replaces 781-0780. Price: |
| 22 |
681-0068A |
CHIPPER CHUTE ASSEMBLY Not Available Price: |
| 23 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 24 |
736-0242 |
Belleville Washer,.340ID x.872OD Price: $3.75 |
| 25 |
981-04091 |
Impeller Assembly: Complete This part replaces 681-04091. Price: $468.75 |
| 26 |
719-04308 |
Flail Blade Price: $16.36 |
| 27 |
712-0266A |
Jam Lock Nut, 3/8-16 Price: $3.43 |
| 28 |
734-1984 |
Hub Cap Price: $24.61 |
| 29 |
738-04286A |
SHOULDER PIN This part replaces 738-04286. Price: $4.38 |
| 30 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 31 |
710-1054 |
Cap Screw 5/16-24 x 1.0 Price: $3.71 |
| 32 |
942-0544B |
CHIPPER BLADE This part replaces 742-0544A. Price: $78.87 |
| 33 |
712-0411 |
Hex Lock Nut 5/16-24 Price: $3.71 |
| 34 |
736-0247 |
Flat Washer.406 x 1/1/4 Price: $8.82 |
| 35 |
736-0217 |
Lock Washer 3/8 Price: $3.86 |
| 36 |
710-1273 |
Hex Cap Screw 3/8-24 x 2.75 Price: $6.92 |
| 37 |
723-0438 |
Rubber Seal Price: $9.00 |
| 38 |
710-0604A |
Hex Washer Screw 5/16-18 Price: $3.96 |
| 39 |
912-0384 |
Hex Lock Nut, 1/2-13 This part replaces 712-0384. Price: $6.07 |
| 40 |
781-0627 |
CHIPPER BLADE COVER Not Available Price: |
| 41 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 42 |
681-0098 |
FLAIL HOUSING ASSEMBLY (INNER) Not Available Price: |
| 43 |
781-0599-0637 |
Upper Shredder Blade This part replaces 781-0599. Price: $29.08 |
| 44 |
710-0772 |
Hex Cap Screw 5/16-18 x 2 Price: $3.93 |
| 45 |
781-0653-0637 |
Flail Housing Blade This part replaces 781-0653. Price: $61.31 |
| 46 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 47 |
719-0326 |
Discharge Screen Price: $89.52 |
| 48 |
681-0060 |
OUTER FLAIL HOUSING ASSEMBLY Not Available Price: |
| 49 |
929-0241A |
Wire Harness This part replaces 629-0241A. Price: $53.96 |
| 50 |
710-0896 |
TT Screw 1/4-14 x 0.625" Price: $3.86 |
| 51 |
726-0272 |
Clamp Price: $6.24 |
| 52 |
710-0382 |
Hex Cap Screw 1/2-13 x 5.0 Price: $10.57 |
| 53 |
712-0421 |
Knob 5/16-18 Price: $5.99 |
| 54 |
925-3166 |
Switch This part replaces 725-3166. Price: $15.61 |
| 55 |
931-1613 |
Safety Switch Mounting Cover This part replaces 731-1613. Price: $9.16 |
| 56 |
710-1268 |
Hex Washer Screw Price: $3.90 |
| 57 |
925-1700 |
Switch Cover This part replaces 725-1700. Price: $10.40 |
| 58 |
710-1260A |
LD Screw 5/16-18 x 0.75" Price: $3.34 |
| 59 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 61 |
710-0157 |
Hex Cap Screw 5/16-24 x.75 Price: $3.90 |
| 62 |
936-3008 |
Flat Washer, .344 x .750 x .120 This part replaces 736-3008. Price: $6.24 |
| 63 |
747-0929A |
BELT KEEPER Not Available Price: |
| 64 |
629-0923 |
Adapter Harness Assembly Price: $17.79 |
| 65 |
736-0366 |
Flat Washer 5/8 ID x 1.0 OD Price: $3.82 |
| 66 |
634-0244 |
Wheel Complete 10 x 4 x 4 Price: $121.25 |
| 67 |
712-0456 |
Hex Nut 1/4-20 Price: $9.61 |
| 68 |
10622B |
Plastic Spring Ratchet Not Available Price: |
| 69 |
748-0405 |
Wheel Ratchet 1.62 OD x.5 serr Price: $9.86 |
| 70 |
714-0104 |
Cotter Pin Price: $3.90 |
| 71 |
748-0381 |
Pawl RH.345 ID Price: $11.07 |
| 71 |
948-0188B |
PAWL - (LH) Not Available This part replaces 748-0188B. Price: |
