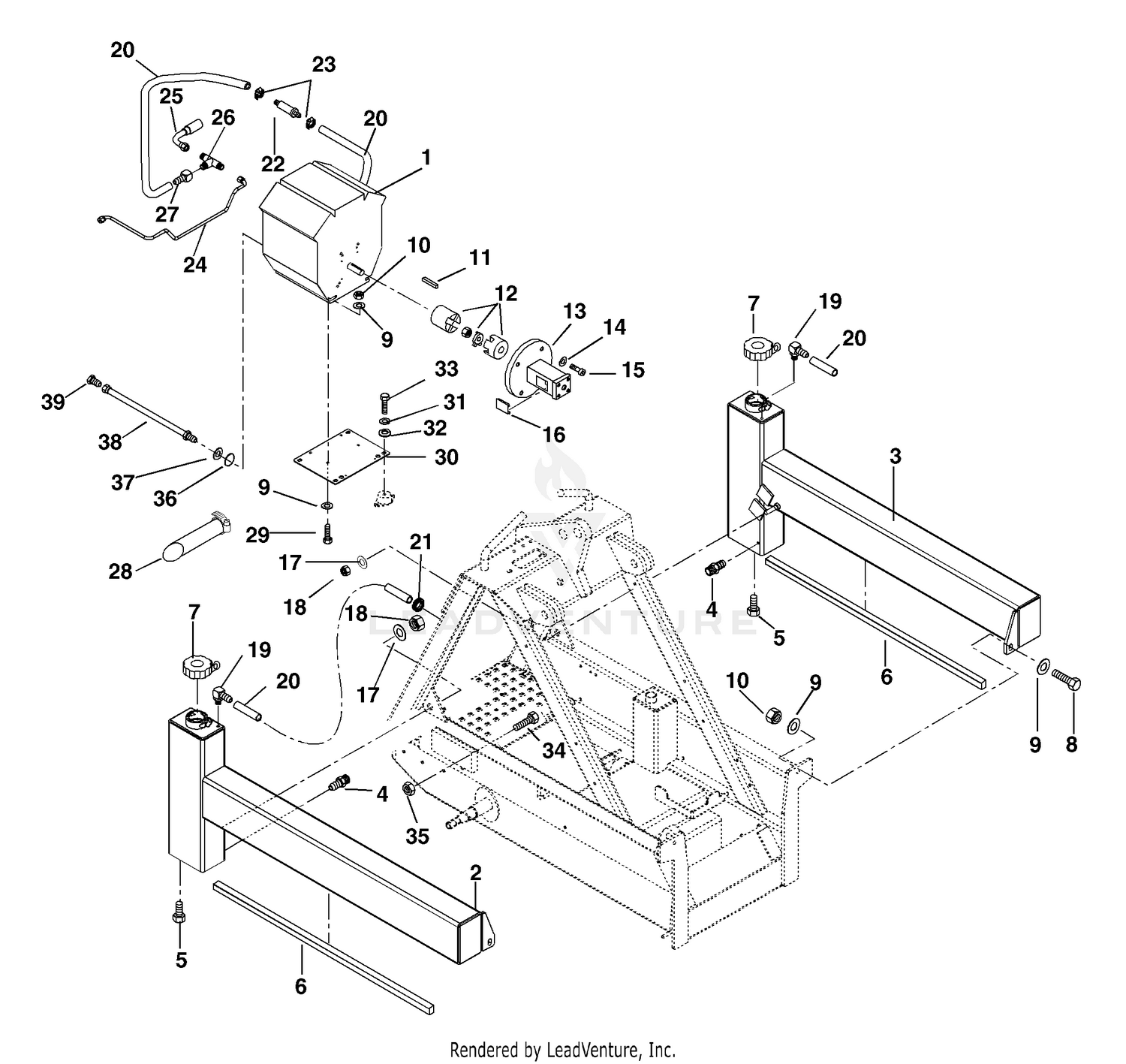

| Ref | Part Number | Description |
|---|
| 1 |
08261700 |
ENGINE, HONDA 20 HP GAS Price: Call Us |
| 2 |
05042450 |
TANK, FUEL GAS RH Price: $317.35 |
| 3 |
05042550 |
TANK, FUEL GAS LH Price: $294.35 |
| 4 |
07059400 |
ADPT, CONN .56-18MX.12-27M Price: $2.95 |
| 5 |
07057700 |
PLUG, DRAIN Price: $2.95 |
| 6 |
02072000 |
GASKET 3/4 X 1/4 IN 00916400 This part replaces 00916400. Price: $1.55 |
| 7 |
05042800 |
CAP, FUEL LOCKING Price: $52.80 |
| 8 |
05955200 |
BLT M10 X 1.5X40 YWZC Price: $1.30 |
| 9 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 11 |
06603400 |
KEY-SQ .25 X 1.25 X .25 SAE Price: $3.45 |
| 12 |
05034700 |
COUPLING Price: $140.65 |
| 13 |
05034600 |
BELL, HOUSING Price: $151.45 |
| 14 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 15 |
05901633 |
BLT,HEX .44-14X1.50 G5 ZCC This part replaces 05962800. Price: $2.95 |
| 16 |
05045800 |
COVER, ACCESS Price: $9.30 |
| 17 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 19 |
07057500 |
FTG,BARB EL .12-27MX.25ID HOSE Price: $4.95 |
| 21 |
07506400 |
GROMMET .50IDX.812OD Price: $5.45 |
| 22 |
08811700 |
FILTER,FUEL This part replaces 040742. Price: $9.45 |
| 23 |
06924300 |
HOSE CLAMP This part replaces 032045. Price: $6.95 |
| 24 |
05044000 |
TUBE, FUEL LINE - LONG Price: $61.75 |
| 25 |
05044100 |
TUBE, FUEL LINE - SHORT Price: $35.85 |
| 26 |
07021500 |
ADPT-TEE .56-18 Price: $27.45 |
| 27 |
07057200 |
FTG-HOSE .375-M6 JIC30682-6-4B Price: $4.95 |
| 28 |
05041600 |
EXTENSION, EXHAUST Price: $87.20 |
| 30 |
05034950 |
MOUNT, ENGINE PLATE Price: Call Us |
| 31 |
06300115 |
WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95 |
| 32 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 33 |
05975000 |
BLT-HEX .50-20X1.00 GR5 YWZC Price: $3.45 |
| 36 |
07060300 |
O-RING Price: $0.75 |
| 37 |
07060400 |
RING, RETAINING M14 Price: $2.95 |
| 38 |
05043900 |
HOSE, ENG OIL DRAIN Price: $54.20 |
| 05031800 |
FILTER, |
ENG. OIL HONDA SKIDSTR Price: $39.35 05031800 |
| 05047900 |
FILTER, |
AIR HONDA Price: $78.45 05047900 |
| 05048000 |
FILTER, |
AIR PRECLEANER HONDA Price: $17.30 05048000 |
| 05048100 |
PLUG, |
SPARK HONDA Price: $39.80 05048100 |
| 05048200 |
FILTER, |
FUEL HONDA Price: $38.70 05048200 |
| 05048300 |
CLIP, |
FUEL FILTER HONDA Price: Call Us 05048300 |
| 05048500 |
WRENCH, |
OIL FILTER HONDA Price: Call Us 05048500 |
