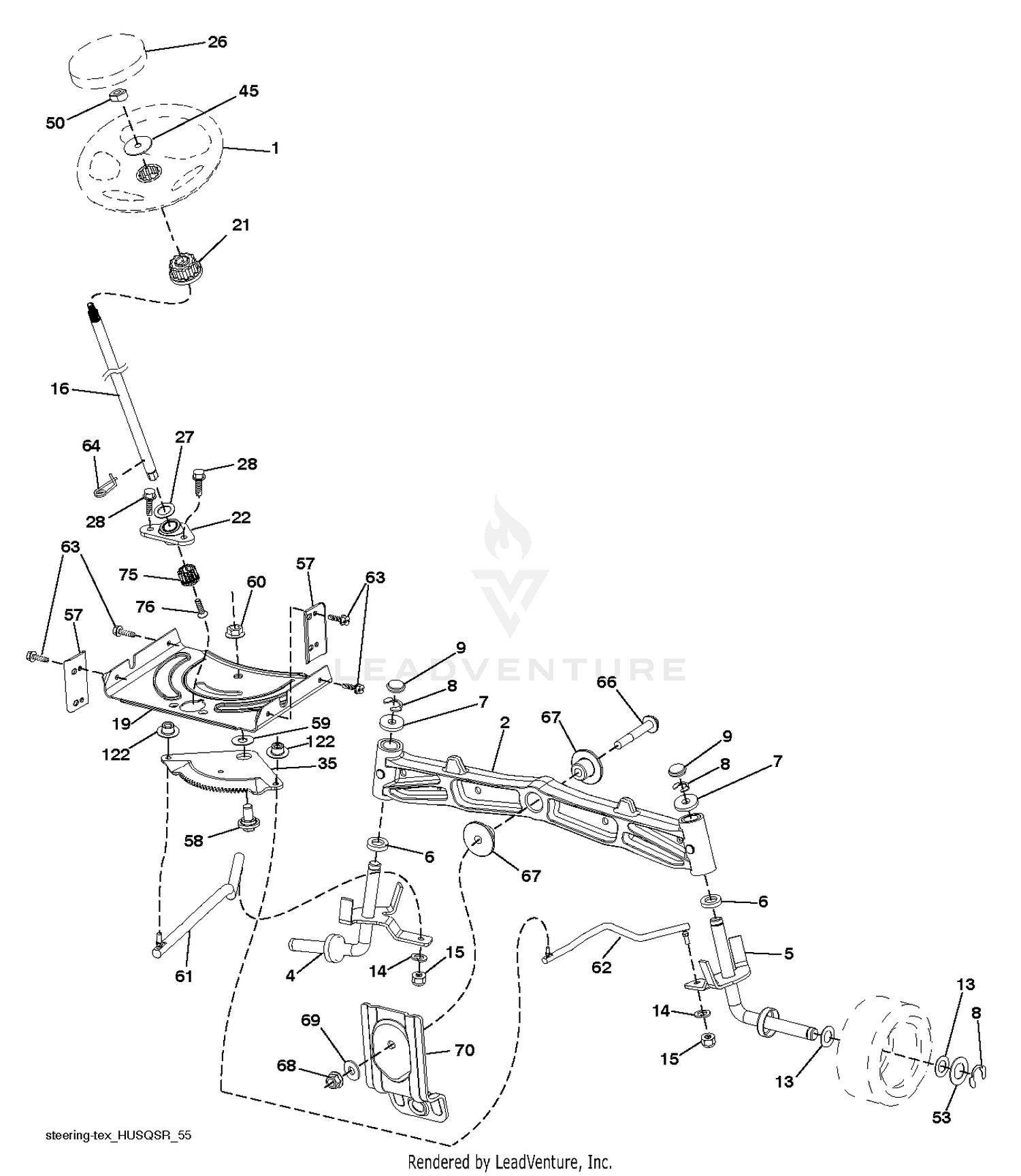

| Ref | Part Number | Description |
|---|
| 1 |
120-8056 |
TUBE ASM Price: $144.29 |
| 1 |
532439997 |
WHEEL.STEERING.HUSQ.PREM.HRDRM Price: $49.99 |
| 2 |
120-8055 |
TUBE ASM Price: $137.84 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
115-4412 |
TUBE ASM Price: $132.35 |
| 4 |
115-4408 |
TUBE ASM Price: $126.40 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
115-4406 |
TUBE ASM Price: $119.83 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
115-4409 |
TUBE ASM Price: $115.75 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
115-4405 |
TUBE ASM Price: $119.61 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
136-3414 |
HYDRAULIC TUBE ASM This part replaces 125-4581. Price: $81.81 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
92-7606-03 |
BRACKET-BULKHEAD Price: $13.64 |
| 10 |
125-4560 |
HOSE ASM Price: $96.58 |
| 11 |
92-7539 |
HOSE-HYD Price: $134.23 |
| 12 |
105-3873-03 |
BRACKET-MOUNT, CLAMP Price: $33.52 |
| 13 |
120-8057 |
TUBE ASM Price: $94.49 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
340-70 |
NUT-LOCK Price: $2.10 |
| 14 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 15 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
115-1794 |
SCREW-HHF Price: $1.73 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 17 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 19 |
105-3993-0P |
BRACKET-TUBE SUPPORT This part replaces 105-3993-03. Price: $40.13 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 21 |
2412-81 |
CLAMP-R Price: $3.39 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
119-4036 |
SCREW-HHF Price: $0.53 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
125-4570 |
TUBE ASM Price: $80.61 |
| 24 |
121-3064 |
TUBE ASM Price: $100.05 |
| 25 |
121-3063 |
TUBE ASM Price: $64.29 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 32 |
69-9761 |
PLATE-COVER Price: $6.26 |
| 33 |
94-8105 |
CLAMP-TUBE Price: $3.17 |
| 34 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 35 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 585338801. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
