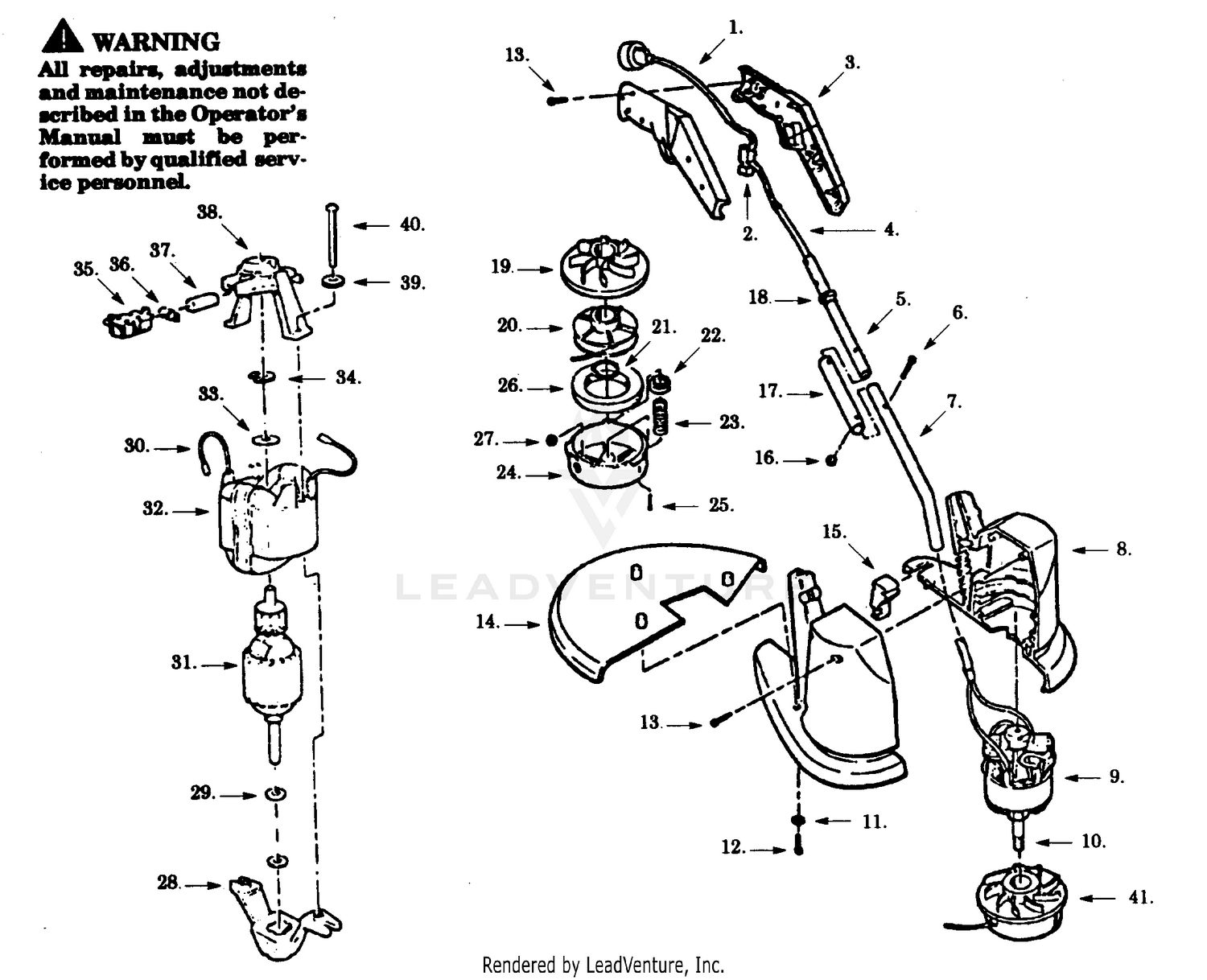

TRIMMER ASSEMBLY
Parts (85)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-3425 | GUIDE-HOSE Price: $213.75 |
| 1 | 534234500 | Power Cord Price: $3.33 |
| 1 | 632166A | SHAFT & LEV Price: $3.86 |
| 2 | 120-3409 | FITTING-TEE Price: $73.56 |
| 2 | 534193001 | Switch Price: $3.33 |
| 2 | 632169 | SPRING Price: $1.25 |
| 3 | 120-3445 | HOSE-MOLDED Price: $10.27 |
| 3 | 534356714 | R.H./L.H. Handle Price: $3.33 |
| 4 | 534162311 | Harness Price: $3.33 |
| 4 | 631184 | WASHER Price: $1.25 |
| 4 | 80-7330 | HOSE ASM Price: $128.60 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 5 | 534379800 | Upper Tube Price: $3.33 |
| 5 | 631183 | WASHER Price: $1.25 |
| 6 | 340-152 | CAP-HYD Price: $13.80 |
| 6 | 534393300 | Screw Price: $3.33 |
| 6 | 631616 | SHUTTER Price: $1.20 |
| 7 | 105-4170 | COUPLER-MALE Price: $33.49 |
| 7 | 534379700 | Lower Tube Price: $3.33 |
| 7 | 650506 | SCREW Price: $0.87 |
| 8 | 105-4169 | COUPLER-FEMALE Price: $109.93 |
| 8 | 534273514 | R.H./L.H. Housing Price: $11.99 |
| 9 | 340-4 | FITTING-STRAIGHT Price: $11.58 |
| 9 | 534638602 | Motor Price: $3.33 |
| 10 | 120-3410 | HYD HOSE ASM Price: $184.15 |
| 10 | 534167100 | Drive Adapter Price: $4.99 |
| 10 | 631300 | SHAFT & LEV Price: $5.16 |
| 11 | 117-9559 | HYD HOSE ASM Price: $180.80 |
| 11 | 534653000 | Washer Price: $0.99 |
| 12 | 534193700 | Screw Price: $1.99 |
| 13 | 2412-41 | CLAMP-R Price: $4.82 |
| 13 | 534193800 | Screw Price: $3.33 |
| 14 | 31837 | SHUTTER Price: $1.18 |
| 14 | 534271914 | Guard Price: $3.33 |
| 15 | 534292705 | Blade Retainer Price: $2.99 |
| 15 | 630735 | SPRING Price: $1.25 |
| 16 | 120-3427 | PLATE-MOUNT, HOSE Price: $17.26 |
| 16 | 534393500 | Nut Price: $0.99 |
| 16 | 632164 | FUEL FITTING Price: $5.95 |
| 17 | 534393200 | Outer Tube Price: $3.33 |
| 17 | 94-8105 | CLAMP-TUBE Price: $3.17 |
| 18 | 322-13 | SCREW-HH Price: $2.73 |
| 18 | 534356805 | Bushing Price: $1.99 |
| 19 | 120-3450 | DECAL-WARNING Price: $61.79 |
| 19 | 534167215 | Rear Plate Price: $8.99 |
| 20 | 340-131 | FITTING-HYD, 90 DEG Price: $99.83 |
| 20 | 534167805 | Spool & Line Price: $11.10 |
| 21 | 534316200 | O-Ring Price: $0.99 |
| 22 | 534166700 | Adapter Nut Price: $1.99 |
| 23 | 534819200 | Spring Price: $1.99 |
| 24 | 534167935 | Hub Ass'y. Price: $3.33 |
| 24 | 95-7896 | DECAL Price: $16.18 |
| 25 | 340-92 | FITTING-STRAIGHT Price: $12.29 |
| 25 | 534270300 | Cotter Pin Price: $3.33 |
| 25 | 631951 | FLOAT BOWL Price: $12.35 |
| 26 | 105-7962 | PLUG-DUST Price: $8.43 |
| 26 | 534167600 | Foam Pad Price: $1.99 |
| 26 | 632815 | SPRING This part replaces 632386. Price: $1.10 |
| 27 | 534167600 | Eyelet Price: $1.99 |
| 27 | 631024 | FLOAT SHAFT Price: $1.17 |
| 28 | 534872701 | Endbell Ass'y. (Drive) Price: $3.33 |
| 28 | 632019A | FLOAT This part replaces 632019. Price: $5.85 |
| 29 | 534520022 | Washer Price: $1.99 |
| 29 | 631028A | GASKET This part replaces 631028. Price: $1.95 |
| 30 | 534810031 | Leadwire Ass'y. Price: $3.33 |
| 30 | 631021B | INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 | 534010701 | Armature Ass'y. Price: $27.99 |
| 31 | 631022 | CLIP Price: $1.25 |
| 32 | 27136A | DRAIN ASSY Price: $5.96 |
| 32 | 534294703 | Field Ass'y. Price: $3.33 |
| 33 | 27554 | GASKET Price: $1.05 |
| 33 | 534520031 | Washer Price: $1.99 |
| 34 | 534246701 | Retainer Ring Price: $0.99 |
| 35 | 534260007 | Brush Holder Price: $2.99 |
| 36 | 534570009 | Brush Spring Price: $1.99 |
| 36 | 640080 | NOZZLE Price: $4.95 |
| 37 | 534200018 | Brush Price: $1.99 |
| 37 | 632547 | O RING Price: $1.49 |
| 38 | 534710641 | Endbell Ass'y. (Brush) Price: $4.99 |
| 39 | 534500020 | Lockwasher Price: Call Us |
| 40 | 534500026 | Screw Price: $3.33 |
| 40 | 640301 | NUT Price: $5.16 |
| 41 | 534167005 | Cutting Head Ass'y. Price: $3.33 |
| 44 | 27110A | GASKET Price: $1.45 |
| 48 | 631027 | WELCH PLUG Price: $1.17 |
