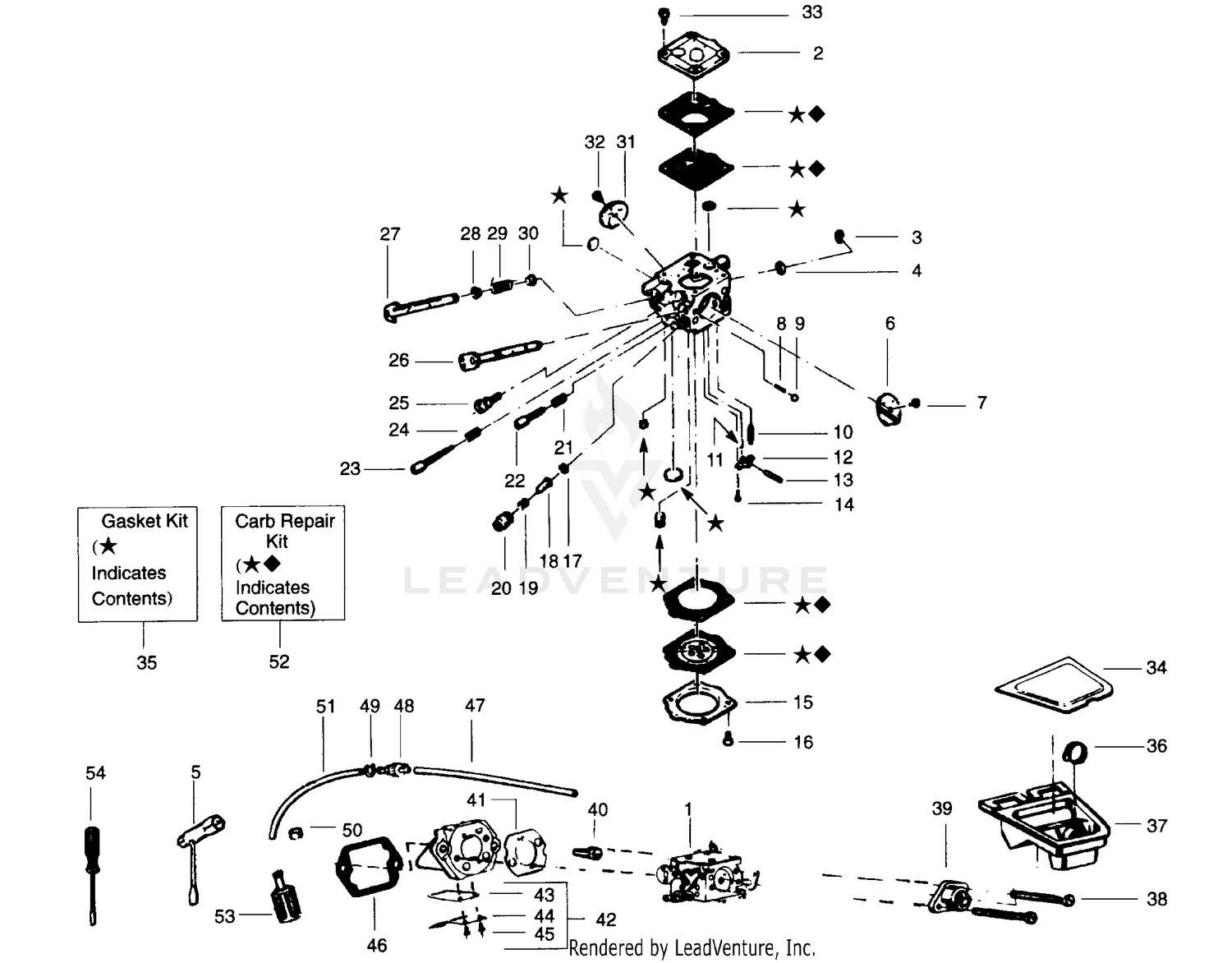

CARBURETOR ASSEMBLY - WJ-38
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-9083 | PLATE-SIDE, RH Price: $328.36 |
| 1 | 530035358 | Carburetor WJ-38 Price: $36.32 |
| 2 | 108-9082 | PLATE-SIDE, LH Price: $328.36 |
| 2 | 507433509 | Fuel Pump Cover Price: $12.99 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 507433771 | Clip Price: $2.99 |
| 4 | 506028301 | Washer Price: $1.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 5 | 545006011 | SCRENCH This part replaces 530031146. Price: $6.99 |
| 6 | 507430749 | Choke Shuffer Price: $2.99 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 507433517 | Screw Price: $1.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 503117701 | Spring Price: $3.99 |
| 9 | 110-4079 | SPRING-COMPRESSION Price: $13.57 |
| 9 | 503117101 | Ball Price: $5.99 |
| 10 | 503117001 | Valve Price: $7.99 |
| 11 | 503117601 | Spring Price: $5.54 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 505316734 | Lever Price: $1.99 |
| 13 | 115-2007 | ROD-SPRING Price: $34.97 |
| 13 | 507430757 | Metering Lever Pin Price: $3.33 |
| 14 | 507430764 | Meter Lever Screw Price: $3.33 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 505316702 | Cover Price: $6.99 |
| 16 | 530035021 | Screw Price: $1.99 |
| 17 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 17 | 507433524 | Washer Price: $0.48 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 18 | 507433516 | Diaphragm Price: $2.04 |
| 19 | 107-3258 | FRAME Price: $331.61 |
| 19 | 507433520 | Compression Spring Price: $3.99 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 507433515 | Plug Cover Price: $3.33 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 21 | 530035293 | Needle Spring-Low Speed This part replaces 504210050. Price: $1.99 |
| 22 | 507433522 | Hi Speed Needle Price: $6.99 |
| 22 | 67-9410 | WASHER Price: $2.04 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 23 | 507433521 | Idle Needle Price: $2.80 |
| 24 | 108-4284 | TUBE-SUPPORT Price: $60.29 |
| 24 | 530035293 | Spring Price: $1.99 |
| 25 | 107-7433 | CARRIER FRAME ASM Price: $484.72 |
| 25 | 507433518 | Idle Speed Screw Price: $6.99 |
| 26 | 507433512 | Choke Shaft Ass'y. Price: $11.99 |
| 27 | 507433510 | Shaft Throttle Assy. Price: $14.99 |
| 28 | 502103101 | Bushing Price: $1.99 |
| 29 | 507433519 | Spring Price: $1.99 |
| 30 | 502103101 | Bushing Price: $1.99 |
| 31 | 507433511 | Throttle Valve Price: $2.99 |
| 32 | 507433517 | Screw Price: $1.99 |
| 33 | 507430751 | Screw Price: $3.33 |
| 34 | 507475289 | Air Filter Price: Call Us |
| 35 | 507433526 | Gasket/Diaphragm Kit (Inc. 18) Price: $14.99 |
| 36 | 507432100 | Clamp Price: $2.99 |
| 37 | 507432734 | Air Box Boot Price: $12.99 |
| 38 | 507431657 | Screw Price: $0.24 |
| 39 | 507432911 | Blow Back Tube Price: $2.64 |
| 40 | 507431653 | Screw Price: $0.99 |
| 41 | 507432843 | Gasket Price: $3.99 |
| 42 | 507476213 | Reed Valve Ass'y. Price: $30.28 |
| 43 | 507433023 | Reed Valve Price: $5.99 |
| 44 | 507432192 | Reed Backing Plate Price: $3.99 |
| 45 | 507433162 | Screw Price: $1.46 |
| 46 | 507430859 | Gasket Price: $1.99 |
| 47 | 507431536 | Fuel Hose Price: $1.96 |
| 48 | 507431268 | Connector Price: $4.99 |
| 49 | 507431271 | Gasket Price: $1.99 |
| 50 | 501606801 | Speed Clip Price: $2.99 |
| 51 | 507100126 | Fuel Hose Price: $1.99 |
| 52 | 507433525 | Carb. Repair Kit (Inc. 10-14,18) Price: $22.99 |
| 53 | 530091878 | Fuel Filter Ass'y. Price: $5.99 |
