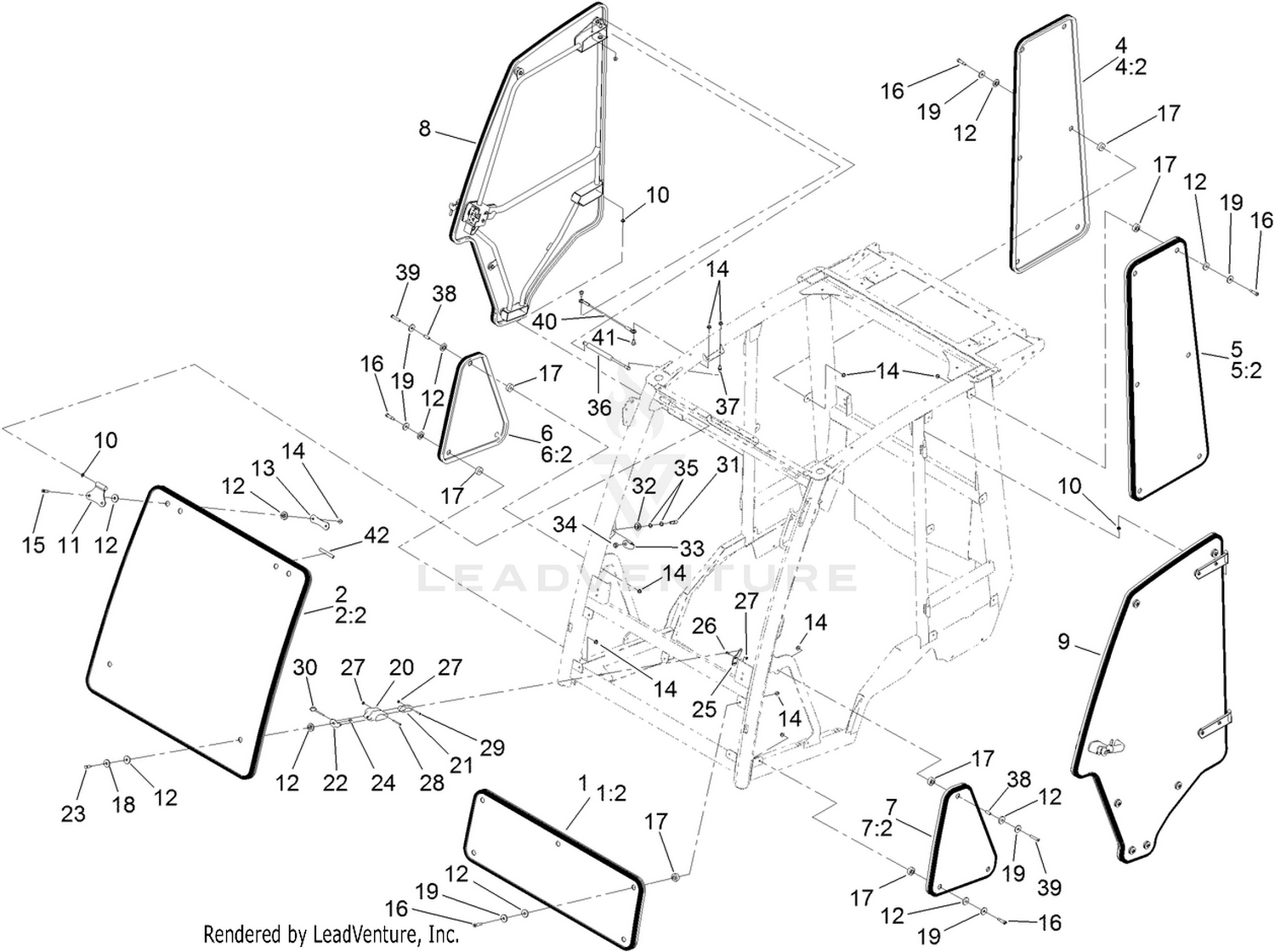

| Ref | Part Number | Description |
|---|
| 1 |
130-6193 |
FRONT-LOWER WINDOW ASM Price: $798.01 |
| 2 |
130-5680 |
UPPER FRONT WINDOW ASM Price: $1,261.17 |
| 4 |
130-5676 |
RH-SIDE WINDOW ASM Price: $599.97 |
| 5 |
130-5677 |
LH-SIDE WINDOW ASM Price: $599.97 |
| 6 |
130-6191 |
RH FORWARD WINDOW ASM Price: $445.35 |
| 7 |
130-6192 |
LH FORWARD WINDOW ASM Price: $445.35 |
| 10 |
121-8441 |
WASHER-SPACER Price: $2.17 |
| 11 |
121-8535-03 |
HINGE-WINDOW Price: $32.08 |
| 12 |
125-9982 |
BUSHING-FLANGE Price: $1.76 |
| 13 |
127-9933 |
PLATE-BACKER, WINDSHIELD Price: $4.49 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
125-9520 |
SCREW-SHOULDER, HSH Price: $1.83 |
| 16 |
125-9521 |
SCREW-SHOULDER, HSH Price: $3.53 |
| 17 |
125-9537 |
BUSHING-FLANGE Price: $2.58 |
| 18 |
125-9676 |
WASHER-BACKUP Price: $1.70 |
| 19 |
130-5815 |
WASHER-BACKUP Price: $3.60 |
| 20 |
125-9792 |
HANDLE-WINDOW Price: $13.41 |
| 21 |
125-9793 |
LINK-WINDOW Price: $6.27 |
| 22 |
144-3308 |
MOUNT-LATCH This part replaces 125-9987. Price: $6.49 |
| 23 |
119-9812 |
BOLT-SHOULDER Price: $1.59 |
| 24 |
104-7201 |
NUT-HF Price: $0.69 |
| 25 |
130-0590 |
MOUNT-TAB Price: $7.97 |
| 26 |
1-807513 |
BOLT-CARR Price: $1.14 |
| 27 |
120-9659 |
NUT-LOCK, NI This part replaces 120-9681. Price: $0.25 |
| 28 |
3274-59 |
SCREW-HSH Price: $1.15 |
| 29 |
3274-14 |
SCREW-HSH Price: $0.22 |
| 30 |
127-9850 |
PIN-RELEASE, QUICK Price: $11.40 |
| 31 |
125-9993 |
STRIKER-STUD Price: $27.48 |
| 32 |
125-9992 |
ADJUSTER-STUD Price: $40.51 |
| 33 |
121-8393 |
GUARD-STRIKER Price: $5.13 |
| 34 |
106-0327 |
NUT-HEX Price: $0.41 |
| 35 |
73-0040 |
WASHER-THRUST Price: $1.29 |
| 36 |
144-3516 |
SPRING-GAS, DOOR This part replaces 130-6083. Price: $76.58 |
| 37 |
98-3104 |
STUD-BALL Price: $4.61 |
| 38 |
130-5725 |
SPACER Price: $31.76 |
| 39 |
125-7977 |
SCREW-HSBH Price: $1.36 |
| 40 |
130-5726 |
LANYARD Price: $16.03 |
| 41 |
120-9471 |
BOLT-SHOULDER Price: $2.37 |
