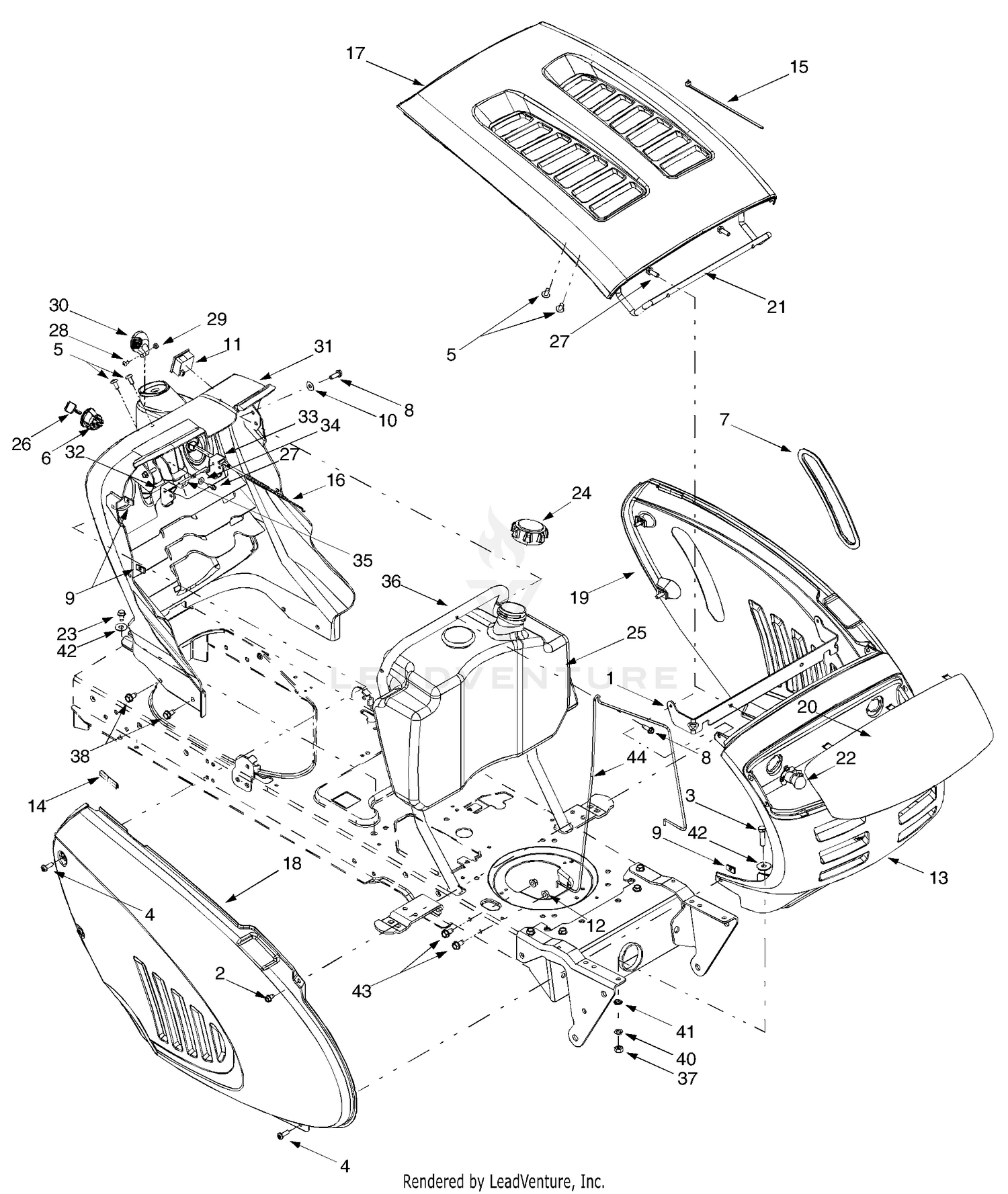

| Ref | Part Number | Description |
|---|
| 1 |
783-1346A-0637 |
GRILLE: SUPPORT BRACKET This part replaces 783-1346. Price: $28.12 |
| 2 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 3 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 4 |
710-0924 |
Phillips Pan Screw, 1/4-20 x .75 Price: $4.02 |
| 5 |
710-1017 |
Truss Phillips Screw, 1/4-20 x .625 Price: $7.26 |
| 6 |
925-1741 |
IGNITION SWITCH This part replaces 725-1741. Price: $41.91 |
| 7 |
935-04019 |
PANEL SEAL (LH) Not Available This part replaces 735-04019. Price: |
| 8 |
710-0642 |
Self-tapping Screw, 1/4-20 x .75 Price: $4.05 |
| 9 |
712-0292 |
U-type Speed Nut, 1/4-20 Price: $8.97 |
| 10 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 11 |
925-06170B |
HOUR METER/SERVICE MINDER This part replaces 725-04036. Price: $65.84 |
| 12 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 13 |
731P2119A |
GRILLE Not Available This part replaces 731-2119A. Price: |
| 14 |
731-0511 |
Trim Strip, 4 Price: $3.29 |
| 15 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 17 |
783-0783A |
HOOD:3 STYLE Not Available This part replaces 783-0783. Price: |
| 18 |
783-0784A |
Side Panel, RH This part replaces 783-0784. Price: $70.28 |
| 19 |
783-04200 |
SIDE PANEL (LH) Not Available Price: |
| 20 |
731-2637 |
LENS STYLE 9 Not Available Price: |
| 21 |
747-2138 |
HINGE ROD Not Available Price: |
| 22 |
925-0051 |
Headlight Assembly This part replaces 625-0051. Price: $14.90 |
| 23 |
710-0726 |
Self-tapping Screw, 5/16-12 x .75 Price: $3.82 |
| 24 |
751-0603B |
TANK CAP This part replaces 751-0603. Price: $20.42 |
| 25 |
751-10283B |
FUEL TANK (3 GAL) This part replaces 751-3213. Price: $153.84 |
| 26 |
925-1745A |
IGNITION KEYS This part replaces 725-1745. Price: $15.91 |
| 27 |
710-0895 |
Self-tapping Screw, 1/4-15 x .75 Price: $5.82 |
| 28 |
710-3217 |
Truss Phillips Screw, #8-32 x .375 Price: $5.94 |
| 29 |
712-0142 |
Hex Nut, #8-32 Price: $3.90 |
| 30 |
731-1857 |
Throttle Control Knob Price: $12.90 |
| 31 |
731-2122C |
DASH PANEL Not Available Price: |
| 32 |
931-04217 |
BRAKE LEVER Not Available This part replaces 731-04217. Price: |
| 33 |
931-04215 |
CRUISE LEVER Not Available This part replaces 731-04215. Price: |
| 34 |
736-0142 |
Flat Washer, 9/32 x 1/2 x 1/16 Price: $3.95 |
| 35 |
747-1196 |
Brake/Cruise Pivot Rod Price: $13.38 |
| 36 |
749-1087C |
DASH SUPPORT TUBE Not Available Price: |
| 37 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 38 |
710-1611B |
Self-tapping Screw, 5/16-18 x .75 Price: $5.94 |
| 40 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 41 |
726-0201 |
Speed Nut, .3125 Price: $6.01 |
| 42 |
736-3078 |
Flat Washer, .349 x 1.0 x .063 Price: $3.95 |
| 43 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 44 |
747-04132A |
SUPPORT ROD Not Available This part replaces 747-04132. Price: |
