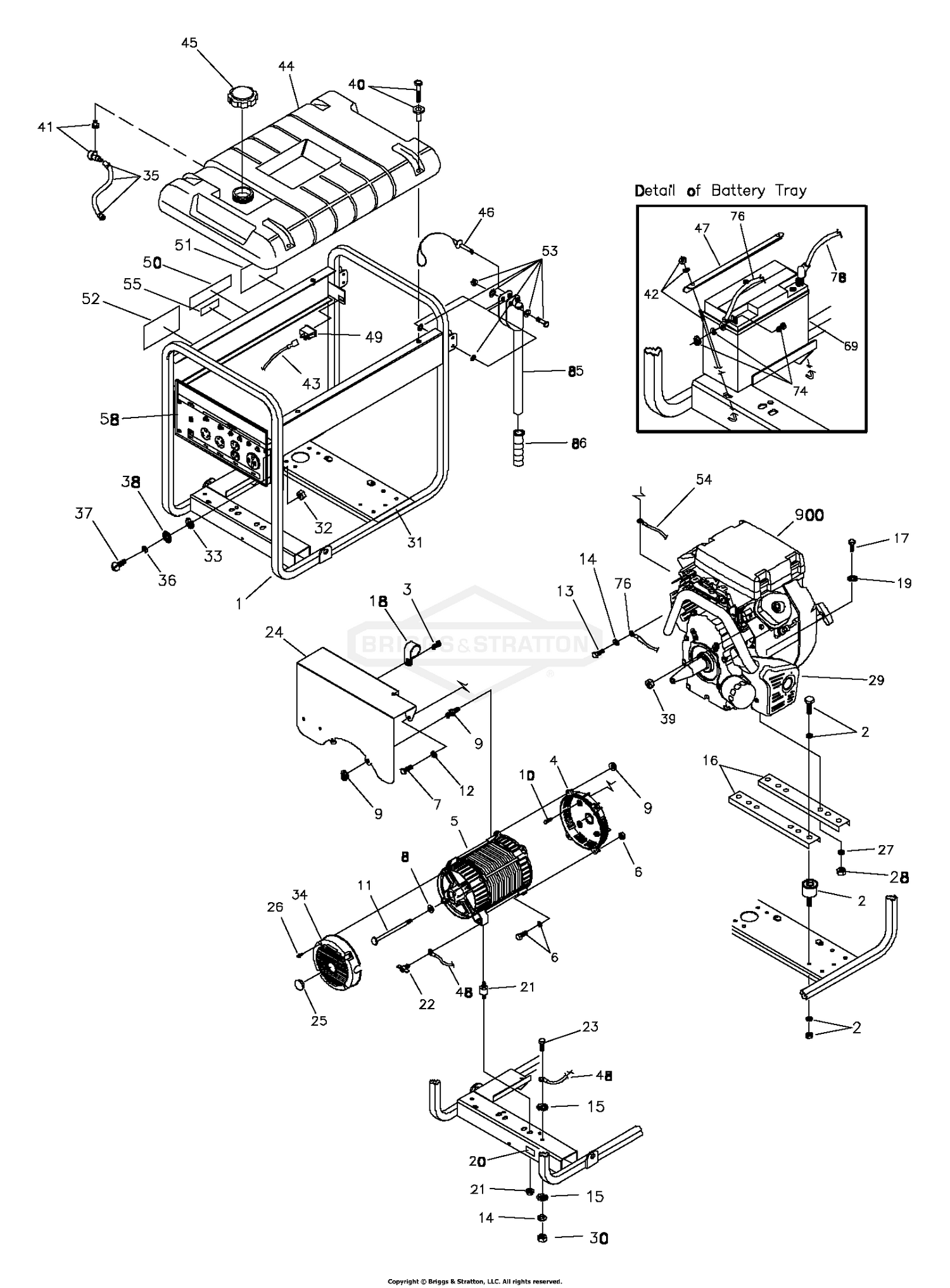

| Ref | Part Number | Description |
|---|
| 1 |
B196668GS |
CRADLE Price: $239.45 |
| 2 |
194209GS |
KIT, Engine Support Hardware Price: $7.59 |
| 3 |
56893GS |
CRIMPTITE, 10-24 x 1/2 Price: $1.95 |
| 4 |
190220GS |
ADAPTER, Engine Price: $40.82 |
| 6 |
194151GS |
KIT,Adapter Mounting Hardware Price: $20.98 |
| 8 |
96796GS |
WASHER Price: $2.79 |
| 9 |
194208GS |
KIT,Alt to Heat Shield Hardware Price: $16.59 |
| 10 |
190274DGS |
SBHC, 3/8-16 x 7/8" Price: $2.85 |
| 11 |
25254GS |
HHCS, 5/16 - 24 x 9-7/8 Price: $9.20 |
| 16 |
B77304GS |
SUPPORT, Engine Price: $22.49 |
| 18 |
55934TGS |
CLAMP, Hose Price: $3.79 |
| 20 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 21 |
196400GS |
KIT,Vibration Mount Price: $5.00 |
| 22 |
86494GS |
SCREW,Wing M6 - 1.0 x 16 Price: $2.51 |
| 24 |
196672GS |
ASSY, Heat Shield Price: $48.49 |
| 25 |
191190GS |
CAP Price: $3.09 |
| 26 |
74908GS |
TAPTITE, M5 - 0.8 x 10 Price: $2.69 |
| 29 |
186989GS |
KIT, Muffler Price: $429.99 |
| 31 |
196830GS |
DECAL, Caution Hot Muffler Price: $13.89 |
| 32 |
52856GS |
NUT, M5 - 0.8 Lock Price: $2.59 |
| 35 |
791745 |
LINE, Fuel This part replaces 194265GS. Price: $8.97 |
| 39 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 40 |
195076GS |
KIT, Fuel Tank Hardware Price: Call Us |
| 41 |
192980GS |
VALVE, Fuel Price: $16.43 |
| 42 |
193986GS |
KIT, Hardware J-Bolt Price: $13.29 |
| 43 |
197273GS |
HARNESS, Switch, Start/Run Price: $29.49 |
| 45 |
B4325GS |
CAP,Tank Fuel Price: $79.49 |
| 46 |
B4135GS |
PIN, Handle Release Price: $6.09 |
| 47 |
B96925GS |
BRACKET, Battery Hold Down Price: $11.85 |
| 48 |
186790EGS |
WIRE, Ground Price: $12.69 |
| 49 |
87799GS |
SWITCH, Set Exercise This part replaces 197509GS. Price: $4.89 |
| 50 |
188333GS |
DECAL, Instruction Fuel Level Price: $20.85 |
| 51 |
197445GS |
DECAL, Danger Price: $14.09 |
| 52 |
196698GS |
DECAL, Start Instructions Price: $14.09 |
| 53 |
194034GS |
KIT, Folddown Handle Hardware Price: $9.51 |
| 54 |
197274GS |
HARNESS, Battery Charge Price: $40.49 |
| 55 |
191435GS |
DECAL, Fuel Shutoff Price: $7.19 |
| 69 |
193043GS |
BATTERY Price: $127.58 |
| 74 |
193347GS |
KIT, Hardware Battery Price: $2.49 |
| 76 |
185939PGS |
ASSY,Wire, #55 Blk Price: $12.69 |
| 78 |
189302PGS |
ASSY,Wire, #13 Red Price: $18.49 |
| 86 |
198669GS |
GRIP This part replaces 189718GS. Price: $7.69 |
