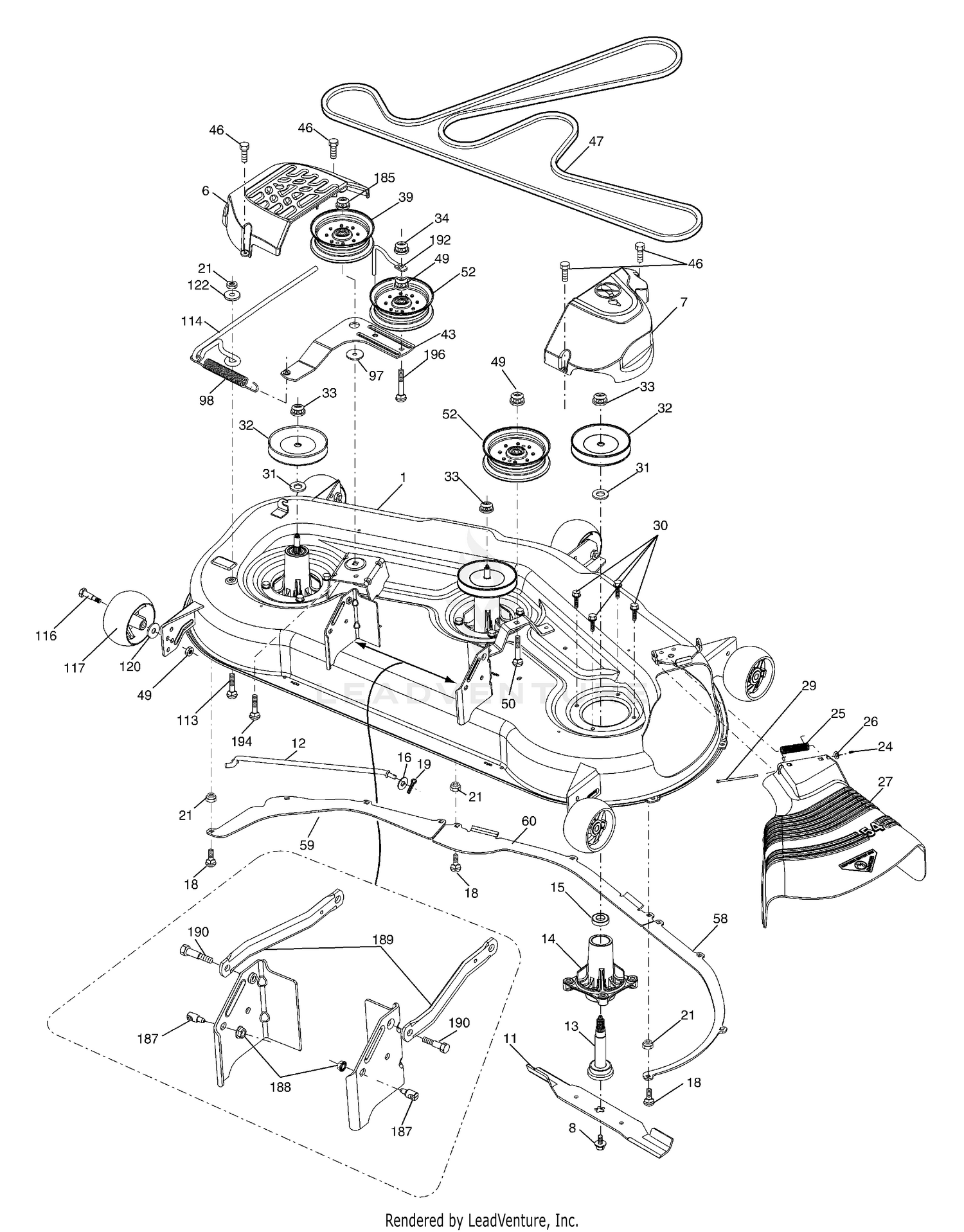

| Ref | Part Number | Description |
|---|
| 1 |
532199298 |
DECK.SVC.54".5GWB.GREY This part replaces 532403125. Price: $449.99 |
| 2 |
47_422_05 |
Gasket-Shim Price: Call Us |
| 3 |
47_041_09 |
Gasket-Bearing Plate Price: Call Us |
| 4 |
235376 |
Ball Bearing Price: Call Us |
| 5 |
47_146_11 |
Plate-Bearing Price: Call Us |
| 6 |
47_032_06 |
Seal-Front Oil Price: Call Us |
| 6 |
532196066 |
COVER.MANDREL.LH.54"20 Price: $22.99 |
| 7 |
532197181 |
COVER.MANDREL.RH.54.20 Price: $27.99 |
| 7 |
X-159-2 |
Screw Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 8 |
X-132-6 |
Screw Price: Call Us |
| 9 |
235026 |
Cover Price: Call Us |
| 10 |
235025 |
Gasket Price: Call Us |
| 11 |
235125-5 |
Shaft-Governor Gear Price: Call Us |
| 12 |
596274401 |
Rods This part replaces 532400337. Price: $9.99 |
| 12 |
X-230-11 |
Plug Price: Call Us |
| 13 |
234866 |
Bearing Price: Call Us |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 14 |
47_032_07 |
Seal-Rear Oil Price: Call Us |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
230265 |
Insert Price: Call Us |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
235007-5 |
Guide-Valve Price: Call Us |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 This part replaces 532196103. Price: $54.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 58 |
531168601 |
SERVICE KIT BAFFLE.RIGHT.54" This part replaces 532187342. Price: $12.99 |
| 59 |
531168701 |
SERVICE KIT BAFFLE.LEFT.54" BA This part replaces 532187344. Price: $19.99 |
| 60 |
531168801 |
SERVICE KIT BAFFLE BAFFLE CENT This part replaces 532187607. Price: $19.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 120 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 188 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X This part replaces 872140716. Price: $9.99 |
| 196 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
