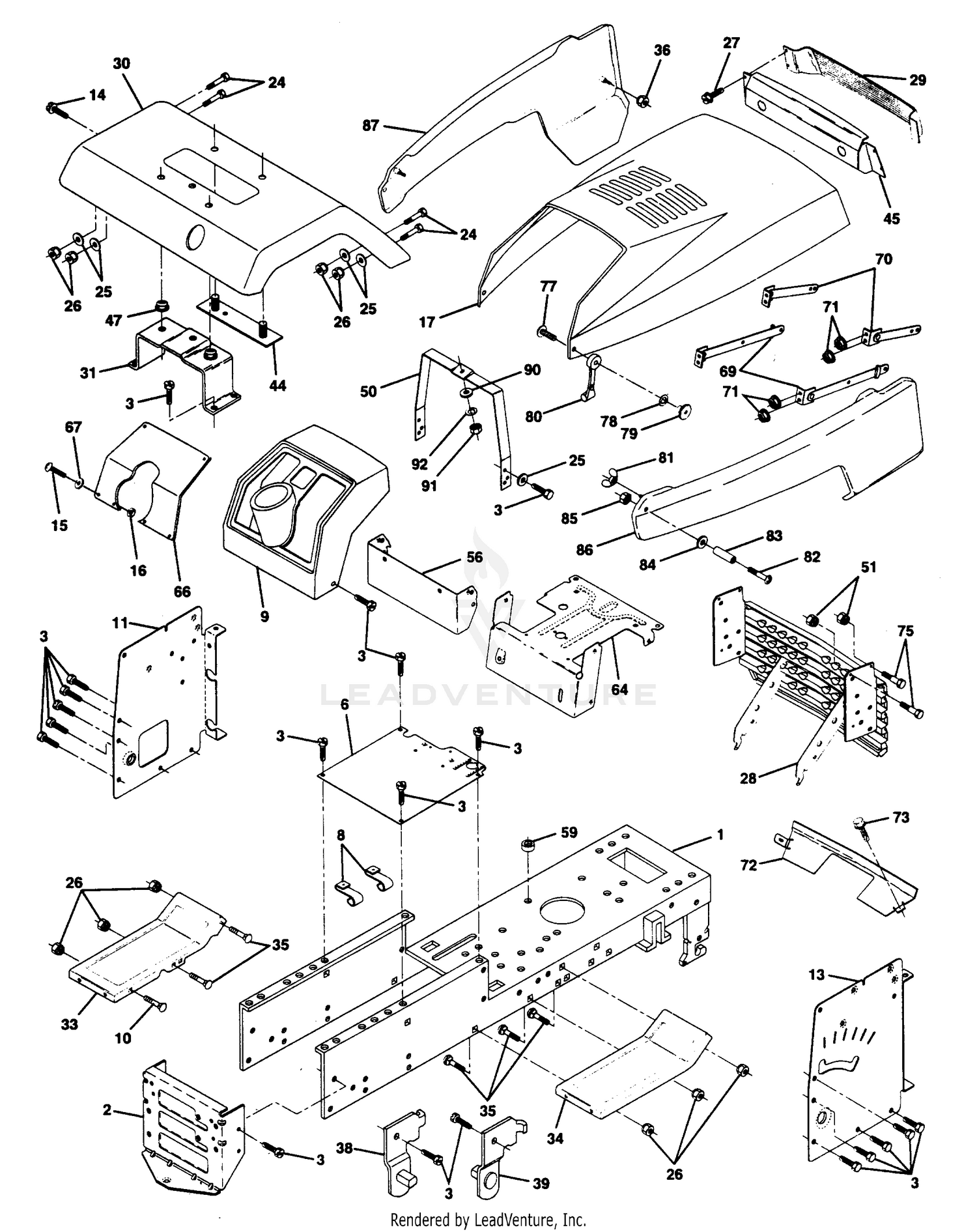

| Ref | Part Number | Description |
|---|
| 1 |
532145501 |
Chassis Weldment 11 Ga (AYP part number) Price: $130.75 |
| 1 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $37.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 5 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 6 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 6 |
532145206 |
Saddle (AYP part number) Price: $15.92 |
| 7 |
27-9530 |
DISCONTINUED This part replaces 21-2170. Price: Call Us |
| 8 |
33-4350 |
DISCONTINUED This part replaces 22-6380. Price: Call Us |
| 8 |
532126471 |
Clip Insulator (AYP part number) Price: $2.99 |
| 9 |
21-0200 |
DISCONTINUED Price: Call Us |
| 9 |
532140398 |
Dash Black Yard Pro (AYP part number) Price: $129.99 |
| 10 |
18-2140 |
DISCONTINUED Price: Call Us |
| 10 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 11 |
18-3170 |
DISCONTINUED Price: Call Us |
| 11 |
532145218 |
Panel Pnt Dash Lh (AYP part number) Price: $22.99 |
| 12 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 13 |
21-3360 |
DISCONTINUED Price: Call Us |
| 13 |
532145217 |
Panel Pnt Dash Rh (AYP part number) Price: $18.99 |
| 14 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 14 |
817490608 |
Screw Thdrol 3/8 - 16 x Ty-TT (AYP part number) Price: $3.99 |
| 15 |
21-2780 |
DISCONTINUED Price: Call Us |
| 15 |
874180512 |
Screw Mach Trhd 5/16 - 18 UNC x 3/4 (AYP part number) Price: $3.99 |
| 16 |
21-2700 |
DISCONTINUED Price: Call Us |
| 16 |
873510500 |
Nut Keps 5/16 - 18 UNC (AYP part number) Price: $5.99 |
| 17 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 17 |
532144524 |
Hood Pnt (AYP part number) Price: $3.33 |
| 18 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 19 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 20 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 21 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
3217-7 |
NUT-HEX Price: $0.28 |
| 24 |
874780616 |
Bolt Fin Hex 3/8 - 16 Unc x 1 (AYP part number) Price: $3.99 |
| 25 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
283-30 |
PIN-CLEVIS Price: $0.35 |
| 26 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 27 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030814. Price: $3.99 |
| 27 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 28 |
3220-5 |
NUT-JAM Price: $0.65 |
| 28 |
532131681 |
Grille Asm (AYP part number) Price: $3.33 |
| 29 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 29 |
532146459 |
Lens/Clip Asm Bar Clear (AYP part number) Price: Call Us |
| 30 |
21-2150 |
DISCONTINUED Price: Call Us |
| 30 |
532144523 |
Fender Pnt (AYP part number) Price: $329.99 |
| 31 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 31 |
532137113 |
Bracket Pnt Fender (AYP part number) Price: $5.99 |
| 32 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 33 |
21-3170 |
DISCONTINUED Price: Call Us |
| 33 |
532147947 |
Footrest Pnt Lh (AYP part number) Price: $6.99 |
| 34 |
321-2 |
SCREW-HH Price: $2.79 |
| 34 |
532147948 |
Footrest Pnt Th (AYP part number) Price: Call Us |
| 35 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 35 |
872110606 |
Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4 (AYP part number) Price: $2.99 |
| 36 |
21-2570 |
DISCONTINUED Price: Call Us |
| 36 |
532108067 |
Nut Pal (AYP part number) Price: $3.10 |
| 37 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 38 |
21-3320 |
DISCONTINUED Price: Call Us |
| 38 |
532139886 |
Bracket Asm Pivot Lh (AYP part number) Price: $5.99 |
| 39 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 40 |
21-3260 |
DISCONTINUED Price: Call Us |
| 41 |
21-3220 |
DISCONTINUED Price: Call Us |
| 44 |
532140675 |
Strap Asm. Fender (AYP part number) Price: $3.99 |
| 45 |
532124392 |
Bezel, Assembly (AYP part number) This part replaces 532124939. Price: $109.99 |
| 47 |
532105531 |
Nut Push Nylon (AYP part number) Price: $2.99 |
| 50 |
532145205 |
Support Pnt Dash (AYP part number) Price: $7.99 |
| 51 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 56 |
532145151 |
Dash Extension (AYP part number) Price: $4.99 |
| 59 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 64 |
532150272 |
DASH LOWER LT This part replaces 532145095. Price: $17.99 |
| 66 |
532142122 |
Plate Silkscreened Dash (AYP part number) Price: $64.99 |
| 67 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 69 |
532106784 |
Strap Asm Pnt Hinge Rear (blk) (AYP part number) Price: $82.19 |
| 70 |
532104618 |
Strap Asm Pnt Hinge Front (AYP part number) Price: $82.19 |
| 71 |
873640400 |
Nut Keps Hex 1/4 - 20 UNC (AYP part number) Price: $2.99 |
| 72 |
532147944 |
Strap Grille (AYP part number) Price: Call Us |
| 73 |
817580408 |
Screw Taptite 1/4-20 x 1/2 (AYP part number) Price: $5.99 |
| 75 |
532007605 |
BOLT This part replaces 532123481. Price: $3.99 |
| 77 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $3.99 |
| 78 |
810071000 |
Washer Lock #10 (AYP part number) Price: $2.99 |
| 79 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532125004. Price: $2.99 |
| 80 |
532109808 |
Latch Chute Blk (AYP part number) Price: $2.99 |
| 81 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 82 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $5.99 |
| 83 |
532007206 |
Spacer Split #10 x 3/4 Cad/Zin (AYP part number) Price: $3.99 |
| 84 |
819070816 |
Washer 7/32 x 1/2 x 16 Ga. (AYP part number) This part replaces 819070818. Price: $5.99 |
| 85 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 86 |
532144526 |
Panel Pnt Rh Side (AYP part number) Price: $3.33 |
| 87 |
532144525 |
Panel Pnt Lh Side (AYP part number) Price: $3.33 |
| 90 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 91 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 92 |
810040400 |
Washer Lock Hvy. Helical 1/4 (AYP part number) Price: $3.99 |
