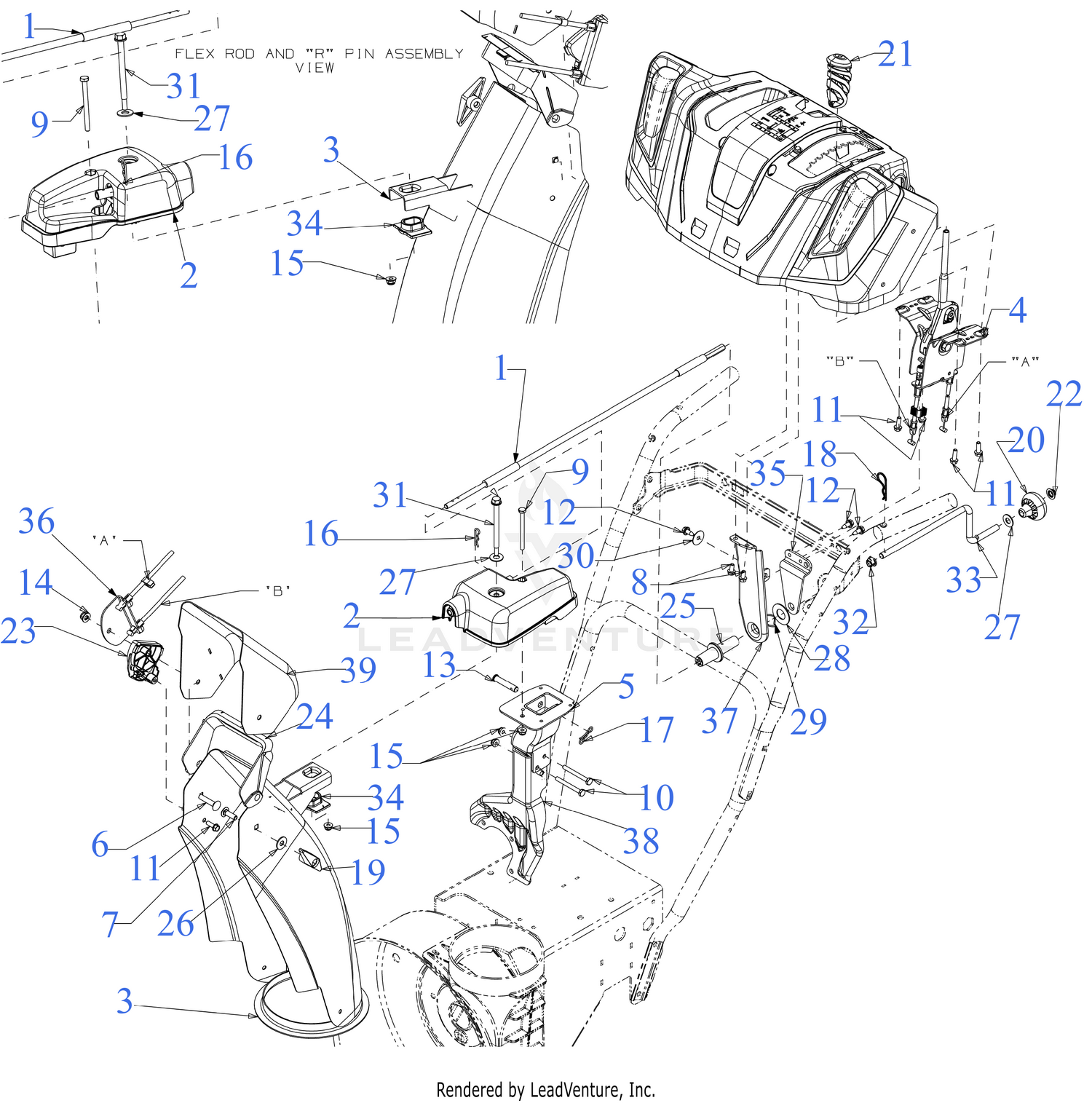

| Ref | Part Number | Description |
|---|
| 1 |
611-05868 |
CONTROL ASSEMBLY Price: $63.68 |
| 6 |
710-0262 |
CARRIAGE BOLT 5/16-18 x 1.50 Price: $3.66 |
| 7 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 8 |
710-04187A |
HEX SCREW 1/4-15 x .50 Price: $5.99 |
| 9 |
710-04370 |
SCREW 1/4-20 x 3.0 GR5 Price: $3.66 |
| 10 |
710-0641 |
SCREW 1/4-20 x 2.25 GR5 Price: $3.66 |
| 11 |
710-0895 |
SCREW 1/4-15 x .750 Price: $5.82 |
| 12 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 13 |
711-04469A |
CLEVIS PIN 3/8 x 1.87 Price: $5.15 |
| 14 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 15 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 16 |
714-0101 |
INTERNAL COTTER PIN Price: $4.13 |
| 17 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 18 |
714-3020 |
INTERNAL COTTER PIN Price: $3.90 |
| 19 |
712-0429 |
HEX NUT Price: $3.56 |
| 19 |
720-0284 |
Wing Nut This part replaces 920-0284. Price: $4.08 |
| 20 |
720-04102 |
SHIFT KNOB Price: $6.01 |
| 21 |
720-05086 |
PTO HANDLE GRIP .355 ID Price: $11.07 |
| 22 |
726-0100 |
PUSH NUT Price: $3.75 |
| 23 |
731-09535 |
CHUTE TILT GUIDE Price: $7.44 |
| 24 |
731-09539A |
UPPER CHUTE ADAPTER Price: $22.36 |
| 25 |
731-09643 |
CHUTE ROD COUPLER Price: $6.51 |
| 26 |
736-0159 |
FLAT WASHER Price: $3.71 |
| 27 |
736-0300 |
FLAT WASHER Price: $3.93 |
| 28 |
736-0445 |
FLAT WASHER Price: $3.95 |
| 29 |
736-0621 |
WAVE WASHER .785X1.00X.012 Price: $16.02 |
| 30 |
736-3092 |
FLAT WASHER Price: $3.68 |
| 31 |
738-04367 |
SHOULDER SCREW Price: $4.36 |
| 32 |
941-0475 |
BUSHING .380 ID Price: $3.74 |
| 33 |
747-06196-0637 |
CHUTE CRANK (POWDER BLACK) Price: $18.62 |
| 34 |
748-05057 |
HELICAL GEAR CHUTE ADAPTER Price: $10.13 |
| 35 |
790-00341-0637 |
ROD SUPPORT BRACKET Price: $14.25 |
