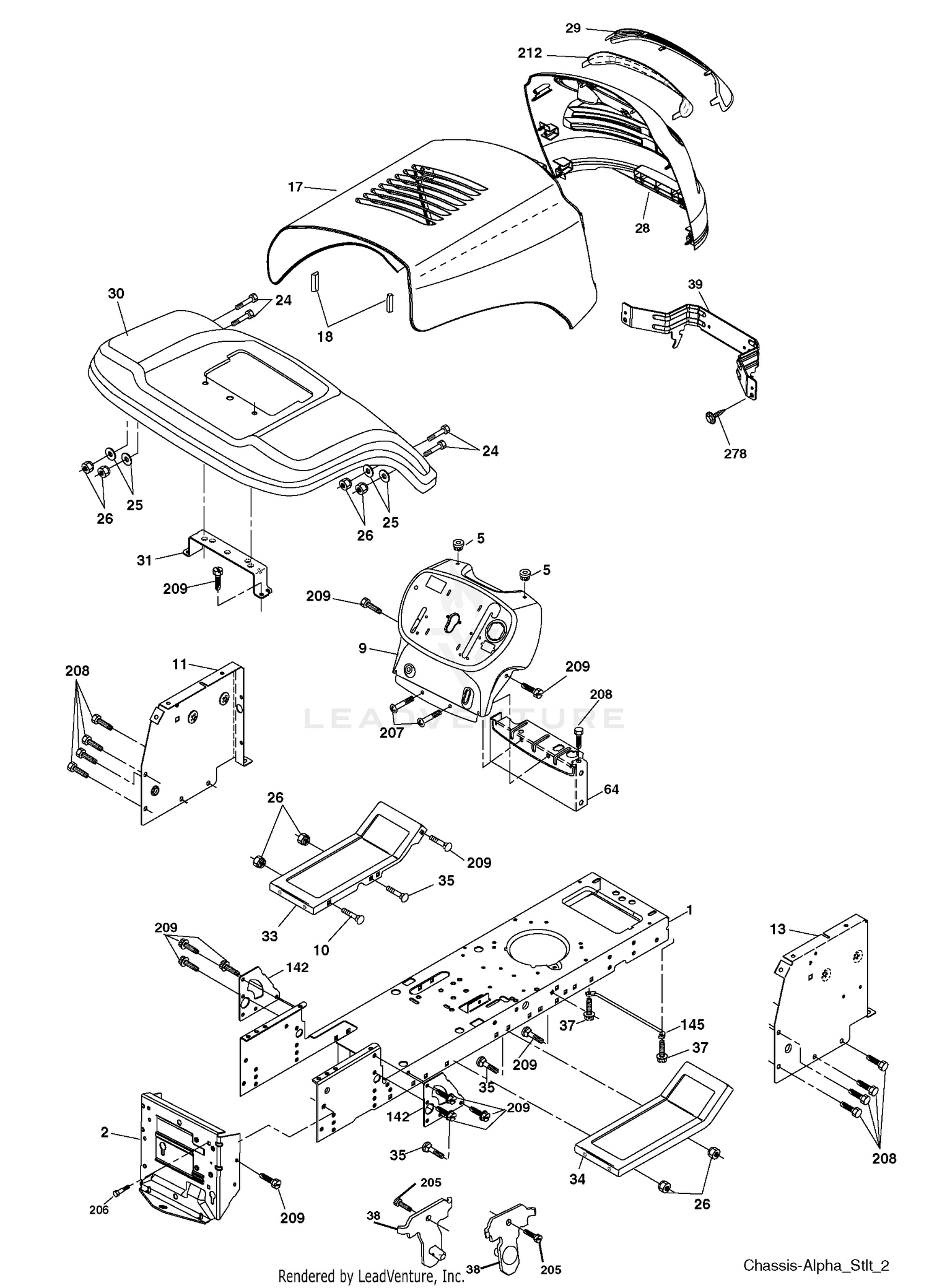

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
105-8122 |
SEAL-BOOT Price: $19.70 |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 4 |
105-8120 |
BEARING-CONE Price: $98.15 |
| 5 |
105-8119 |
BEARING-CUP Price: $130.48 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 7 |
105-8125 |
BOLT-HEAD, SOCKET Price: $6.53 |
| 8 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 9 |
193510X010 |
Dash Price: Call Us |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
105-8117 |
BEARING-CUP Price: $114.89 |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 12 |
105-8118 |
BEARING-CONE Price: $87.73 |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 16 |
105-8113 |
GEAR-RING Price: $633.38 |
| 17 |
105-8132 |
RING-RETAINING Price: $16.29 |
| 17 |
187559X428 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 18 |
353-990 |
PLUG ASM Price: $10.01 |
| 19 |
105-8138 |
CAP-END Price: $92.32 |
| 21 |
105-8133 |
PLUG-THRUST Price: $36.88 |
| 22 |
105-8123 |
WASHER-THRUST Price: $20.15 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 24 |
105-8114 |
GEAR-PRIMARY Price: $100.24 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
105-8115 |
SHAFT-DRIVE Price: $134.40 |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
105-8129 |
CARRIER-PRIMARY Price: $691.83 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 27 |
105-8139 |
GEAR-SECONDARY Price: $146.04 |
| 28 |
105-8130 |
CARRIER-SECONDARY Price: $726.53 |
| 29 |
105-8136 |
SHIM KIT Price: $177.70 |
| 29 |
187567X599 |
Lens Grille Basic Bar Price: Call Us |
| 30 |
192526X428 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
187569 |
Insert Lens Refl ect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 278 |
5479J |
Plug Button Blk 359 Dia Choke Price: Call Us |
