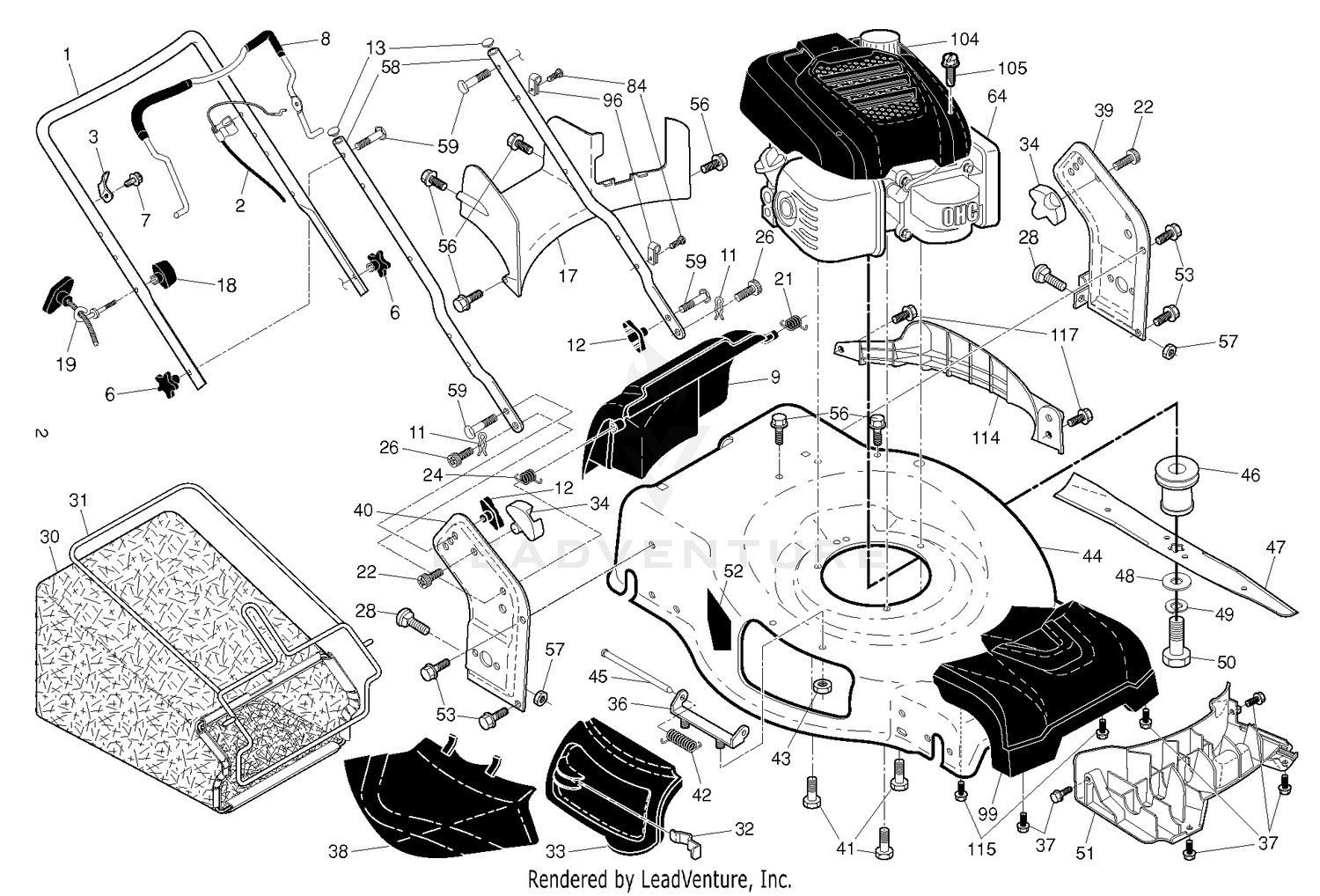

| Ref | Part Number | Description |
|---|
| 1 |
580638706 |
HANDLE.UPPER.3.POS.BS.AW2.GREY Price: $44.99 |
| 2 |
532427497 |
CABLE.MZR.50.SNAP-IN Price: $12.99 |
| 3 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 7 |
532178848 |
SCREW Price: $3.99 |
| 8 |
580849102 |
BAIL.OVER.MOLD.ERGO.MZR.ORANGE Price: $44.99 |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC Price: $32.99 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $2.99 |
| 30 |
580943401 |
RB GBAG.B55110010.GENERIC.SERV This part replaces 580943402. Price: $39.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK Price: $17.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $3.99 |
| 33 |
594942002 |
DOOR.MULCH.22+.BLK This part replaces 532419927. Price: $5.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $4.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 37 |
584299401 |
SCREW.HI-LO. 5/16 X 1.00 Price: $2.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $9.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 44 |
581708352 |
KIT.HSG.22+AW.MC.WO.PB.668.TRI This part replaces 581684901. Price: $129.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
581851501 |
ADAPTER.BLADE.25MM.3MPH Price: $14.99 |
| 47 |
580244002 |
BLADE 22 4-N-1 2PIN 5STAR BLK This part replaces 580244001. Price: $19.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
581238901 |
BAFFLE.FRONT.22+PLASTIC.(2 2) Price: $34.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
532441197 |
HANDLE.LOWER.22+BT.2PC.GRY Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 104 |
580290001 |
SHROUD.ASM.HONDA.HUSQVARNA Price: $27.99 |
| 105 |
580768701 |
SCREW.SHROUD.HONDA Price: $2.99 |
| 114 |
581253601 |
RP BUMPER.HUSQVARNA Price: $64.99 |
| 115 |
581330001 |
SCREW.SHOULDER.5/16X1.375 Price: $3.99 |
| 117 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
