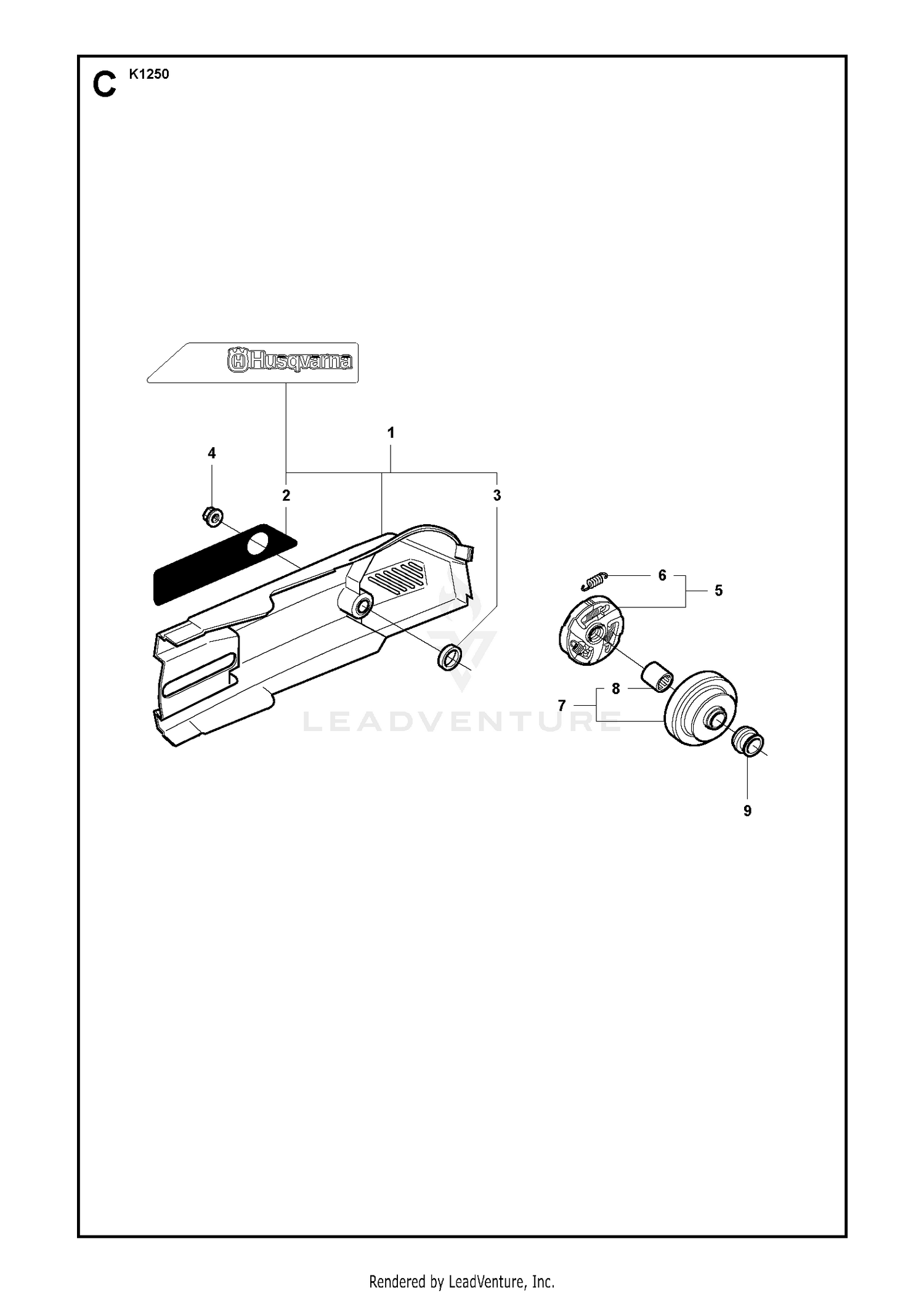

BELT GUARD & PULLEY 3
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 544873601 | LABEL Price: $5.99 |
| 3 | 506268401 | BUSHING Price: $4.99 |
| 4 | 503220001 | NUT M8 FLANGE Price: $2.99 |
| 5 | 503144903 | CLUTCHES This part replaces 503144901. Price: $99.99 |
| 7 | 506254902 | CLUTCH DRUM 16" Price: $139.99 |
| 7 | 540018403 | BELT POLY-V ASSY K1250 16"RAIL This part replaces 506254901. Price: $109.99 |
| 7 | 587890201 | Pulleys This part replaces 506254903. Price: $49.99 |
| 8 | 503253801 | SUPPORT BUSHING Price: $9.99 |
| 9 | 506285901 | SPACER SLEEVE Price: $14.99 |
