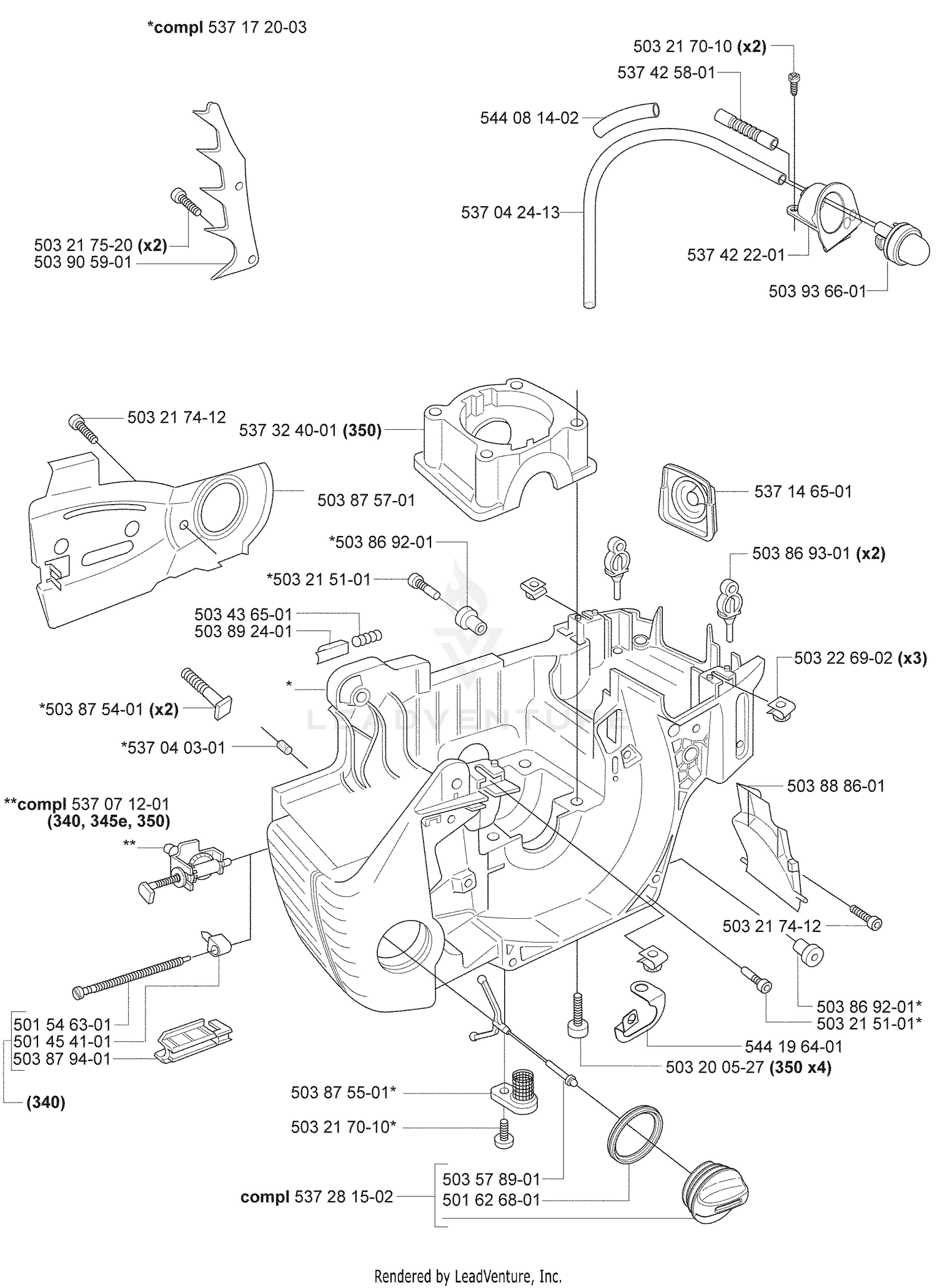

Crankcase
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 501454101 | 501454101 | PAWL Price: $5.99 |
| 501546301 | 501546301 | SCREW Price: $4.99 |
| 501626801 | 501626801 | OILCAP GASKET Price: $3.99 |
| 503200527 | 503200527 | SCREW Price: $3.99 |
| 503215101 | 503215101 | SCREW Price: $3.99 |
| 503217010 | 503217010 | SCREW Price: $3.99 |
| 503217412 | 503217412 | SCREW Price: $2.99 |
| 503217520 | 503217520 | SCREW Price: $3.99 |
| 503226902 | 503226902 | CLIP Price: $4.99 |
| 503436501 | 503436501 | LOCK SPRING Price: $3.99 |
| 503578901 | 503578901 | TANK LOCK Price: $4.99 |
| 503869201 | 503869201 | MOVEMENT LIMITER Price: $7.99 |
| 503869301 | 597909701 | DAMPNER This part replaces 503869301. Price: $5.99 |
| 503875401 | 503875401 | BOLT Price: $4.99 |
| 503875501 | 503875501 | SCREEN Price: $6.99 |
| 503875701 | 503875701 | PLATE Price: $9.99 |
| 503879401 | 503879401 | HOLDER Price: $6.99 |
| 503888601 | 503888601 | DEFLECTOR Price: $5.99 |
| 503892401 | 503892401 | CATCH Price: $5.99 |
| 503905901 | 503905901 | SPIKE Price: $7.99 |
| 503936601 | 503936601 | AIR PURGE BUBBLE Price: $9.99 |
| 537040301 | 537040301 | VALVE Price: $4.99 |
| 537042413 | 537042413 | HOSE Price: $6.99 |
| 537071201 | 537071201 | CHAIN TENSIONER Price: $17.99 |
| 537146501 | 537146501 | BELLOWS Price: $12.99 |
| 537172003 | 537172003 | CRANKCASE Price: $109.99 |
| 537281502 | 537281502 | OIL TANK CAP GREY Price: $8.99 |
| 537324001 | 537324001 | BEARING CUP Price: $27.99 |
| 537422201 | 537422201 | BRACKET Price: $6.99 |
| 537425801 | 581756140 | SUCTION HOSE This part replaces 537425801. Price: $4.99 |
| 544081402 | 544081402 | HOSE Price: $6.99 |
| 544196401 | 544196401 | EARTHING STRIP. Price: $3.99 |
