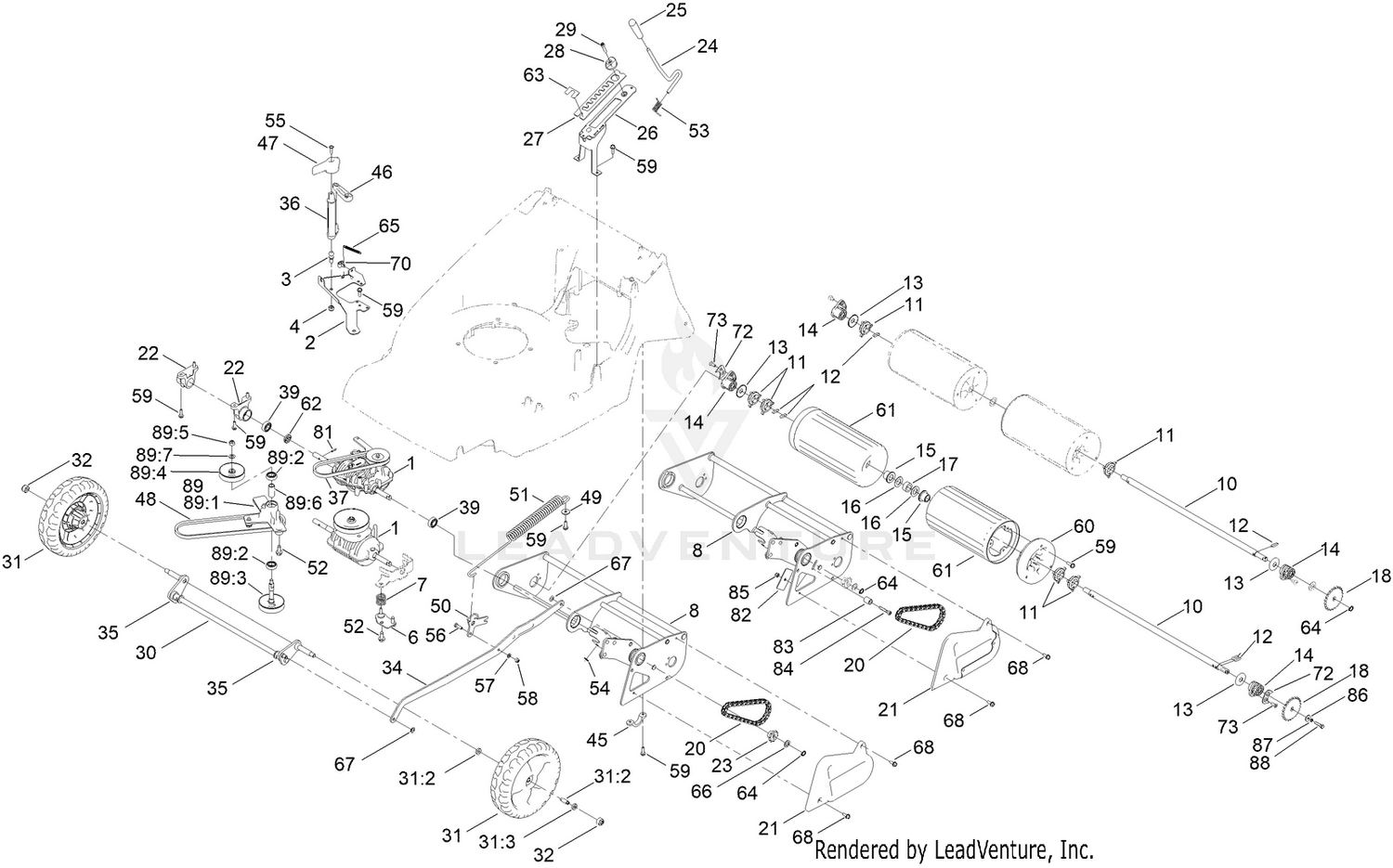

| Ref | Part Number | Description |
|---|
| 1 |
134-4648 |
MG510 3-SPEED GEARBOX Price: Call Us |
| 2 |
134-1737 |
GEARBOX MOUNTING PLATE Price: Call Us |
| 3 |
134-2223 |
STUD-BALL Price: Call Us |
| 4 |
09441 |
NUT-HEX, NI Price: Call Us |
| 6 |
134-2209 |
GEARBOX BRACKET ASSEMBLY Price: Call Us |
| 7 |
111-8587 |
SPRING-MOUNTING, GEARBOX Price: Call Us |
| 8 |
134-5276-03 |
REAR FRAME, 56 (PRO) Price: Call Us |
| 10 |
134-5253 |
SHAFT-ROLLER, PRO Price: Call Us |
| 11 |
134-2924 |
CAM-DRIVE Price: Call Us |
| 12 |
134-2034 |
KEY-DRIVE Price: Call Us |
| 13 |
111-8602 |
WASHER-THRUST Price: Call Us |
| 14 |
134-2635 |
BUSH, REAR ROLLER Price: Call Us |
| 15 |
340129 |
BUSHING-ROLLER, OILITE Price: Call Us |
| 16 |
480097 |
WASHER Price: Call Us |
| 17 |
134-0314 |
SPACER-ROLLER Price: Call Us |
| 18 |
134-3806 |
SPROCKET Price: Call Us |
| 20 |
134-5261 |
CHAIN(46 PITCHES 3/8") Price: Call Us |
| 21 |
134-4620 |
CHAIN COVER ASM Price: Call Us |
| 22 |
134-0393 |
MOUNT-BEARING, FRAME (REAR) Price: Call Us |
| 23 |
134-3805 |
SPROCKET, 10T Price: Call Us |
| 24 |
111-8705 |
LEVER-HOC Price: Call Us |
| 25 |
480134 |
KNOB-HOC Price: Call Us |
| 26 |
134-0358 |
HOC TOWER ASSEMBLY Price: Call Us |
| 27 |
134-0361 |
PLATE-HOC Price: Call Us |
| 28 |
134-0362 |
ADJUSTER-HOC Price: Call Us |
| 29 |
111-4586 |
SCREW-HSH Price: Call Us |
| 31 |
133-2639 |
WHEEL Price: $37.99 |
| 32 |
119-4042 |
NUT-HF, NI Price: $0.69 |
| 34 |
134-0365 |
CONNECTING ROD ASSEMBLY Price: Call Us |
| 35 |
410069 |
BEARING-AXLE, FRONT Price: Call Us |
| 36 |
134-0367 |
ROD-SELECTOR, 3 SPEED Price: Call Us |
| 37 |
134-0352 |
V-BELT Price: Call Us |
| 39 |
134-2889 |
BEARING, BALL 12MM Price: Call Us |
| 45 |
111-8670 |
AXLE- SUPPORT, REAR Price: Call Us |
| 46 |
134-2225 |
ARM-SELECTOR, 3 SPEED Price: Call Us |
| 47 |
134-2224 |
KNOB- SELECTOR, 3 SPEED Price: Call Us |
| 48 |
134-2295 |
V-BELT Price: Call Us |
| 49 |
09263 |
WASHER Price: Call Us |
| 50 |
134-2254 |
SPRING LOAD LEVER Price: Call Us |
| 51 |
134-2287 |
SPRING COUNTER BALANCE Price: Call Us |
| 52 |
134-2299 |
SCREW-HWH Price: Call Us |
| 53 |
480132 |
SPRING-TORSION, HOC Price: Call Us |
| 54 |
04020 |
GRIP-FIX Price: Call Us |
| 55 |
09687 |
SCREW Price: Call Us |
| 56 |
09363 |
SCREW-HH Price: Call Us |
| 57 |
09472 |
WASHER-PLAIN Price: Call Us |
| 58 |
09544 |
NUT-NYLOC Price: Call Us |
| 59 |
09575 |
SCREW-TAPTITE Price: Call Us |
| 60 |
134-8302 |
CAP-ROLLER, END This part replaces 134-2631. Price: Call Us |
| 61 |
134-0315-03 |
ROLLER SHELL ASSEMBLY Price: Call Us |
| 62 |
134-4513 |
RETAINING COLLAR, DRIVE SHAFT Price: Call Us |
| 63 |
134-2620 |
DECAL-HOC Price: Call Us |
| 64 |
134-0254 |
CIRCLIP-EXTERNAL, HD Price: Call Us |
| 65 |
134-3366 |
LEVER-SPRING, CLUTCH (RETURN) Price: Call Us |
| 66 |
111-8216 |
WASHER-THRUST Price: Call Us |
| 67 |
0201086 |
WASHER-STARLOCK Price: Call Us |
| 68 |
09365 |
SCREW-TAPTITE Price: Call Us |
| 70 |
111-8696 |
CLIP-CONDUIT, TWIN Price: Call Us |
| 72 |
134-1734 |
BEARING SUPPORT PLATE Price: Call Us |
| 73 |
09545 |
SCREW-TAPTITE Price: Call Us |
| 81 |
134-4514 |
PIN, ROLL, 3MM X 16MM Price: Call Us |
| 82 |
134-6225-03 |
BACK PLATE, TENSIONER Price: Call Us |
| 83 |
134-6226 |
PULLEY, TENSIONER Price: Call Us |
| 84 |
111-0118 |
See Supercession: ZCS1F035U Price: Call Us |
| 85 |
09438 |
NUT-NYLOC Price: Call Us |
| 86 |
111-7679 |
WASHER-PLAIN Price: Call Us |
| 87 |
09474 |
WASHER-SPRING Price: Call Us |
| 88 |
ZBH1F025U |
BOLT-HH Price: Call Us |
| 89 |
134-2226 |
JACK SHAFT ASSEMBLY Price: Call Us |
