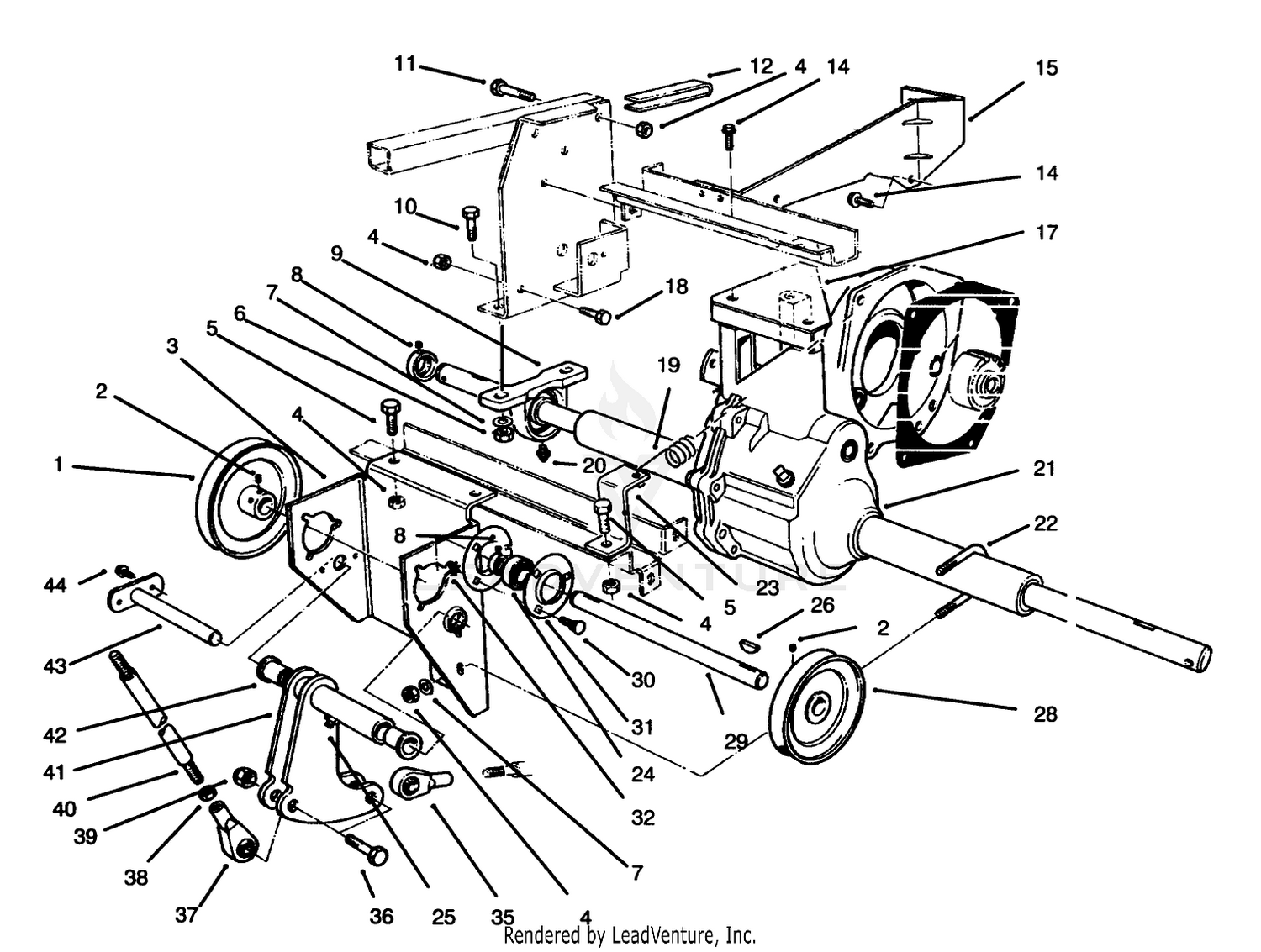

| Ref | Part Number | Description |
|---|
| 1 |
54-2390 |
JACKSHAFT OUTPUT PULLEY Price: $56.42 |
| 2 |
3241-1 |
SCREW-SET, SQH Price: $22.99 |
| 3 |
60-9130 |
Bracket-Jackshaft Price: Call Us |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
322-4 |
SCREW-HH Price: $0.35 |
| 6 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 7 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 8 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 9 |
72-4060 |
BEARING - PILLOW BLOCK Price: Call Us |
| 10 |
323-8 |
SCREW-HH Price: $1.20 |
| 11 |
322-10 |
SCREW-HH Price: $0.70 |
| 12 |
80-3750 |
TUBE SPACER Price: $12.20 |
| 14 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 15 |
59-1620-03 |
TRANSAXLE BRKT This part replaces 59-1620. Price: $52.33 |
| 17 |
60-8990 |
TRANSAXLE PLATE Price: $18.31 |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 19 |
76-9430-03 |
SPRING-EXTENTION This part replaces 76-9430. Price: $28.14 |
| 20 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 21 |
98-2850 |
ASM-TRANSAXLE/DIFF. This part replaces 13-5969. Price: $1,840.29 |
| 22 |
54-8970 |
U-BOLT Price: $11.66 |
| 23 |
92-6273-03 |
SPRING ANCHOR BRKT This part replaces 92-6273. Price: $36.81 |
| 24 |
251-288 |
BEARING-BALL Price: $85.99 |
| 25 |
302-49 |
GREASE FITTING Price: $3.29 |
| 26 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 28 |
54-2380 |
JACKSHAFT INPUT PULLEY Price: $63.75 |
| 29 |
54-1600 |
JACKSHAFT Price: $124.41 |
| 30 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 31 |
251-341 |
FLANGE Price: $10.73 |
| 32 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 35 |
251-304 |
BALL JOINT LH Price: $51.06 |
| 36 |
324-7 |
SCREW-HH Price: $1.79 |
| 37 |
251-305 |
BALL JOINT RH Price: $76.99 |
| 38 |
3220-4 |
NUT-JAM Price: $2.49 |
| 39 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 40 |
54-1490-03 |
DISCONTINUED This part replaces 54-1490. Price: Call Us |
| 41 |
54-2060 |
Bellcrank (Incl. Ref. #68 69) Price: Call Us |
| 42 |
46-6680 |
BUSHING PM Price: $15.97 |
| 43 |
59-1470-03 |
BELLCRANK SHFT ASM This part replaces 59-1470. Price: $34.07 |
