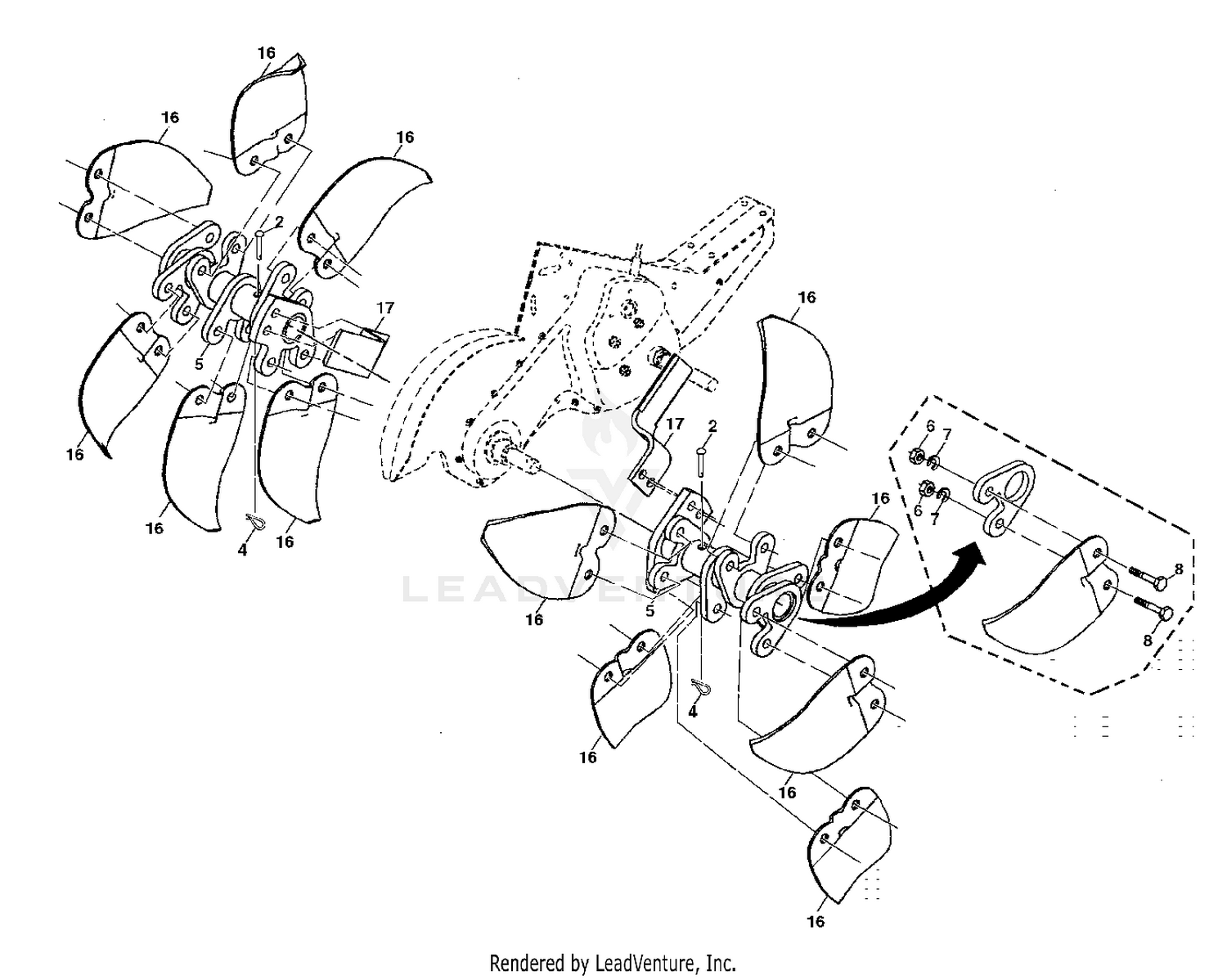

TINE ASSEMBLY
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 98-9486 | PLATE-END, REAR Price: $176.46 |
| 2 | 532132673 | PIN RETAINING SCREW Price: $3.99 |
| 2 | 98-9392 | BOLT Price: $2.38 |
| 3 | 98-9537 | BOLT-FLYWHEEL Price: $7.04 |
| 4 | 532003146 | SPRING RETAINER Price: $2.99 |
| 4 | 98-9691 | FLYWHEEL ASM Price: $759.10 |
| 5 | 532188845 | HUB.ASM.DRT17.2004 (CMPL KIT) Price: $99.99 |
| 6 | 873610600 | NUT Price: $2.99 |
| 7 | 596238701 | Washers This part replaces 810040600. Price: $3.99 |
| 8 | 874610616 | BOLT.HEX.001X20.37-24X1.ZINC Price: $4.99 |
| 16 | 532163499 | TINE.SPADE Price: $11.99 |
