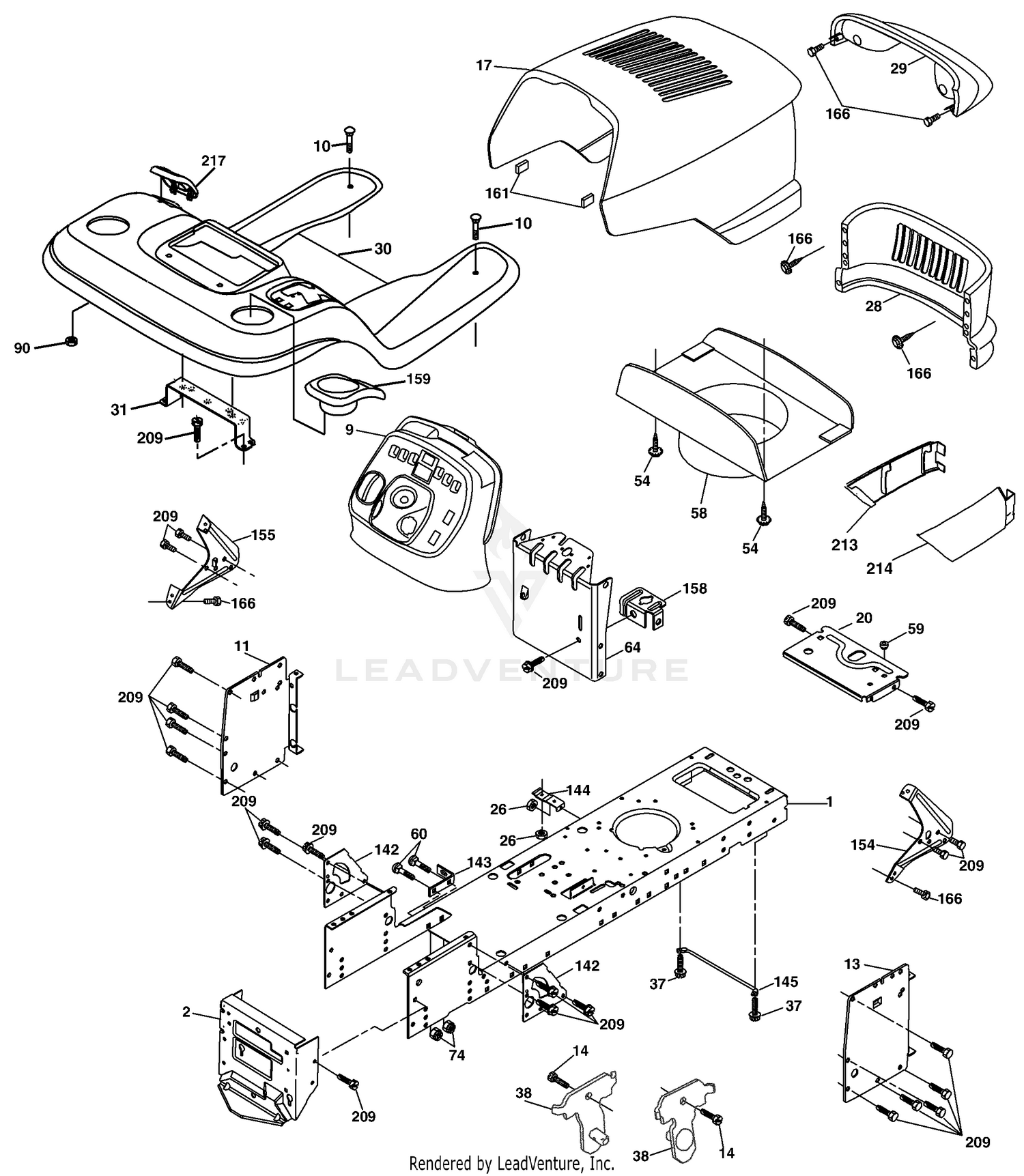

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
69-7210-03 |
TUBE LATCH ASM Price: $386.73 |
| 3 |
69-8480-03 |
SPRING-COMPRESSION Price: $172.33 |
| 4 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 5 |
71-2550 |
WASHER-SHAFT, LATCH Price: $39.70 |
| 6 |
69-9680 |
DISCONTINUED Price: Call Us |
| 7 |
111-1290 |
ENGINE - KUBOTA V1505-E2B-HAYTER-1 This part replaces 92-4806. Price: $3,715.61 |
| 8 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 9 |
187934X428 |
Dash Price: Call Us |
| 9 |
92-4804 |
BLOCK-LATCH, PIVOT Price: $236.12 |
| 10 |
32121-49 |
PIN-ROLL Price: $2.37 |
| 10 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 11 |
92-4805 |
CAM-TRIP, SPRING Price: $283.27 |
| 12 |
86-8100-01 |
BALL JOINT ASM Price: $137.53 |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 13 |
21-3000-01 |
NUT-JAM, PUSH ARM Price: $37.02 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
92-4094 |
ROLLER-LATCH Price: $14.45 |
| 15 |
256-172 |
BUSHING Price: $4.57 |
| 16 |
69-1630-03 |
ARM-PIVOT Price: $110.89 |
| 17 |
175260X428 |
Hood Price: Call Us |
| 17 |
69-9100 |
WASHER-LATCH Price: $104.98 |
| 18 |
3220-22 |
NUT-JAM Price: $61.63 |
| 19 |
21-3001 |
NUT-JAM This part replaces 21-3001-03. Price: $10.04 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 20 |
86-8101-01 |
JOINT-BALL, LH This part replaces 86-8101-03. Price: $64.64 |
| 21 |
106-0310 |
SPACER-PLASTIC Price: $9.24 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 28 |
175289X428 |
Grille Price: Call Us |
| 29 |
179761 |
Light Asm. Bar Price: Call Us |
| 30 |
188572X428 |
Fender Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 59 |
187495 |
Bushing Snap Price: Call Us |
| 60 |
72140606 |
Bolt Rd Hd Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wsh-Hd 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Extrusion Bumper Price: Call Us |
| 166 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 214 |
169847X428 |
Skirt Grille RH Price: Call Us |
