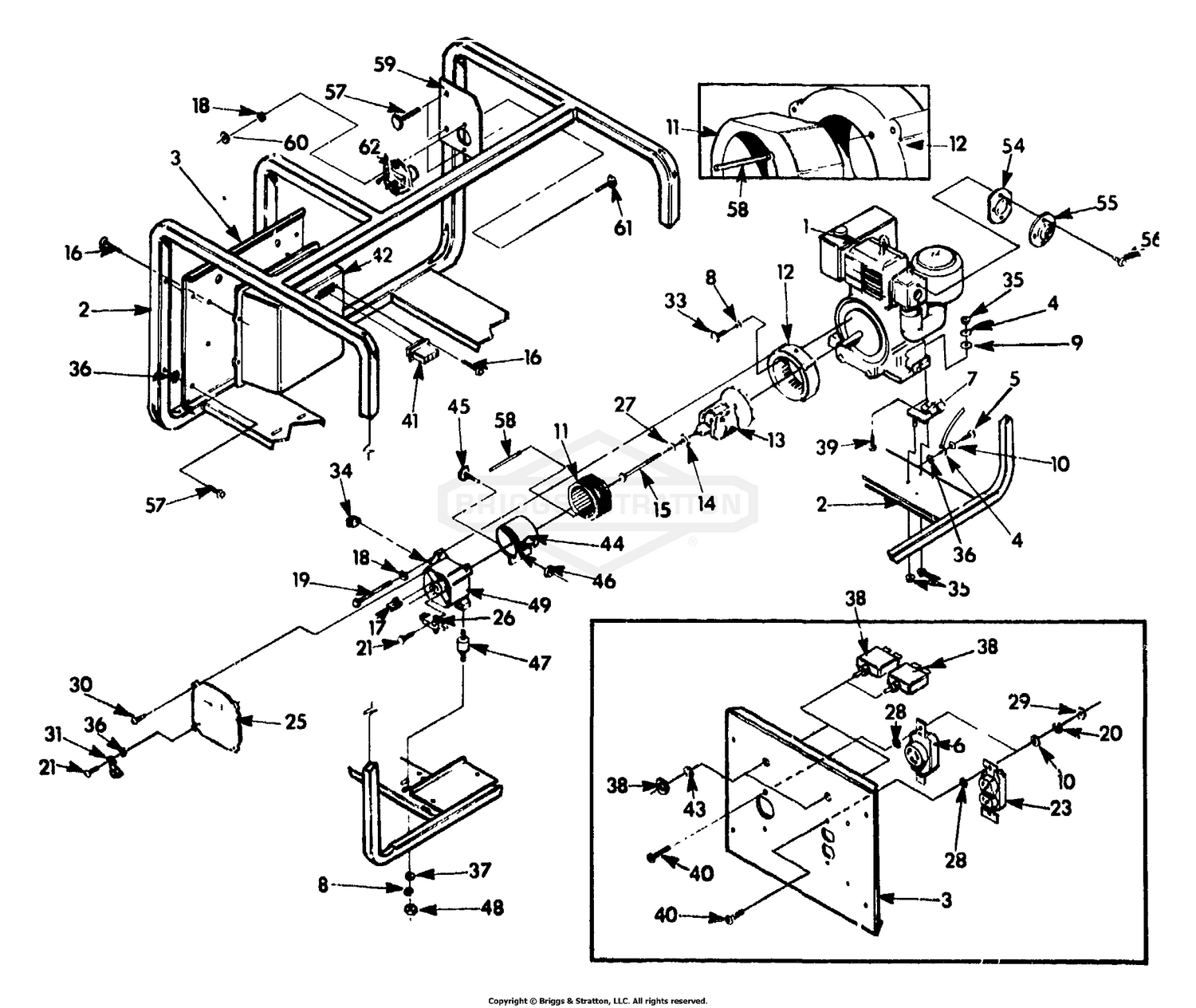

| Ref | Part Number | Description |
|---|
| 1 |
83998 |
Briggs & Stratton engine (electric start) Price: Call Us |
| 2 |
83857A |
Cradle assembly Price: Call Us |
| 3 |
84297 |
Side control panel Price: Call Us |
| 4 |
10953621 |
Ground wire Price: Call Us |
| 5 |
24911GS |
TRILOBLAR, 8-32 x 3/8 This part replaces 24911. Price: $2.64 |
| 6 |
68867GS |
OUTLET, 120/240V Locking, 20A This part replaces 68867. Price: $43.09 |
| 7 |
70642GS |
MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27 |
| 8 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 9 |
27482GS |
WASHER, 5/16" Ext. Shakeproof This part replaces 27482. Price: $2.19 |
| 10 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 11 |
84272GS |
ASSY, STATOR, 4000DPE90, 10A-BC This part replaces 84272. Price: $685.15 |
| 12 |
66365GGS |
HOUSING, Engine Adapter This part replaces 66365G. Price: Call Us |
| 13 |
74715 |
Rotor assembly Price: Call Us |
| 14 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 15 |
24823GS |
HHCS, 5/16" - 24 x 7-7/8" This part replaces 24823. Price: $16.09 |
| 16 |
82308GS |
SCREW, Self Tapping, STC 3 x 18 This part replaces 82308. Price: $2.59 |
| 17 |
66850GS |
ASSY, RECTIFIER, BRIDGE This part replaces 66850. Price: Call Us |
| 18 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 19 |
66449E |
M6-1.0 x 115mm Stator bolt Price: Call Us |
| 20 |
22264 |
No. 8 Lock washer Price: $8.99 |
| 21 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 23 |
68759GS |
OUTLET, 20A,120V This part replaces 68759. Price: $23.24 |
| 25 |
67025 |
Bearing carrier cover Price: Call Us |
| 26 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 27 |
67451 |
Flat washer (special) Price: Call Us |
| 28 |
5023365YP |
TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73 |
| 29 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 30 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 31 |
25433 |
Grounding lug Price: Call Us |
| 34 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 35 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 36 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 38 |
209872GS |
BREAKER-CIRCUIT 20A This part replaces 75207. Price: $9.29 |
| 39 |
76222GS |
PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15 |
| 40 |
75475 |
M4-0.7 10mm Screw Price: $24.95 |
| 41 |
22694GS |
HOUSING, Receptacle This part replaces 22694. Price: $5.44 |
| 42 |
81919GS |
PANEL, Control, Back, Plastic This part replaces 81919. Price: $109.99 |
| 43 |
82881GS |
WASHER, 7/16" Int Lock This part replaces 82881. Price: Call Us |
| 44 |
81887B |
Alternator wrap Price: Call Us |
| 45 |
52618GS |
SCREW, M5 x 0.8 x 12 This part replaces 52618. Price: $2.64 |
| 46 |
52856GS |
NUT, LOCKING-M5 This part replaces 52856. Price: $2.59 |
| 47 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 48 |
25244GS |
NUT, 5/16-18 HEX This part replaces 25244. Price: $2.59 |
| 49 |
66825A |
Rear bearing carrier Price: Call Us |
| 54 |
77601GS |
SCREEN, ARRSTR, SPARK, B&S This part replaces 77601. Price: $26.10 |
| 55 |
77836GS |
ARRSTR, DEFLT, BRNG, 8 HP This part replaces 77836. Price: $6.49 |
| 56 |
77836AGS |
SCREW, DEFLECTOR This part replaces 77836A. Price: Call Us |
| 57 |
75494 |
No. 10-24 Capscrew Price: $30.20 |
| 58 |
81917GS |
PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79 |
| 59 |
78289GS |
BRACKET, STARTER SWITCH This part replaces 78289. Price: Call Us |
| 61 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 22287. Price: $3.29 |
