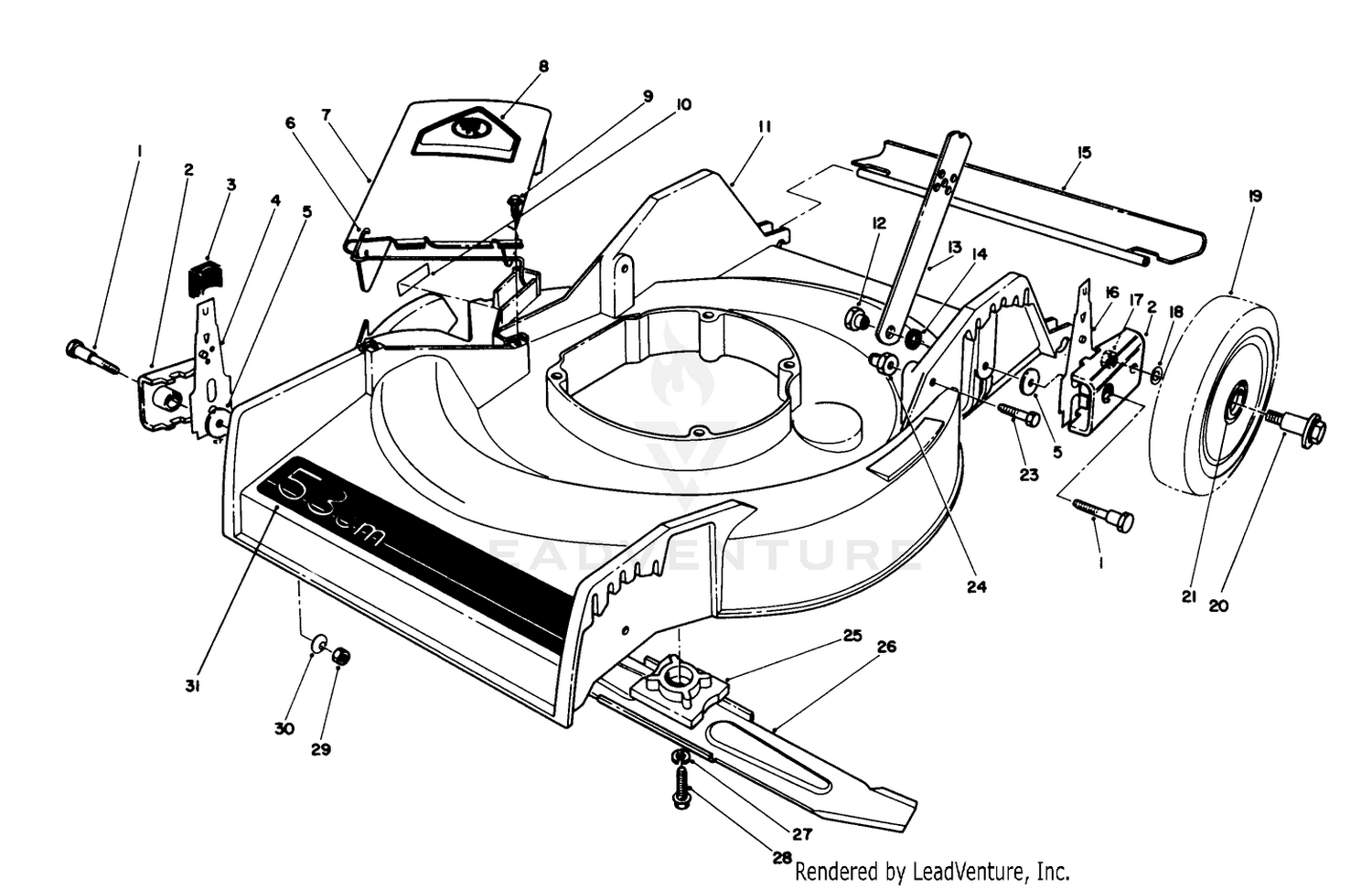

| Ref | Part Number | Description |
|---|
| 1 |
44-5271 |
PIVOT SCREW Price: $6.22 |
| 2 |
47-2940 |
HP PIVOT ARM ASM Price: $34.07 |
| 3 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 4 |
66-9270 |
SPRING ARM ASSEMBLY Price: Call Us |
| 5 |
33-0390 |
PIVOT WASHER Price: $3.09 |
| 6 |
20-2640 |
SPRING HINGE Price: Call Us |
| 7 |
13-3429 |
DISCONTINUED Price: Call Us |
| 8 |
56-6270 |
DECAL-DANGER Price: $5.35 |
| 9 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 10 |
62-4200 |
DISCONTINUED Price: Call Us |
| 11 |
13-2439 |
Housing (Incl. Ref. #37) Price: Call Us |
| 12 |
27-6520 |
HANDLE PIVOT NUT Price: $5.81 |
| 13 |
27-7080 |
HANDLE LATCH Price: $14.79 |
| 14 |
3-3287 |
SPACER Price: $3.69 |
| 15 |
66-5990 |
SHIELD - TRAILING Price: Call Us |
| 16 |
66-9260 |
SPRING ARM ASSEMBLY Price: Call Us |
| 17 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 18 |
40-1940 |
WASHER Price: $1.59 |
| 19 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $21.88 |
| 20 |
27-6230 |
BOLT-WHEEL Price: $5.35 |
| 21 |
27-6250 |
BUSHING Price: $2.17 |
| 23 |
322-6 |
SCREW-HH Price: $0.45 |
| 24 |
12-2080 |
HANDLE PIVOT NUT Price: $14.79 |
| 25 |
49-7900 |
BLADE RETAINER Price: $42.05 |
| 26 |
20-2720-03 |
BLADE-21" This part replaces 20-2720. Price: $24.05 |
| 27 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 28 |
26-0671 |
SCREW-HH Price: $7.99 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
3290-456 |
WASHER-BELLEVILLE Price: $2.59 |
