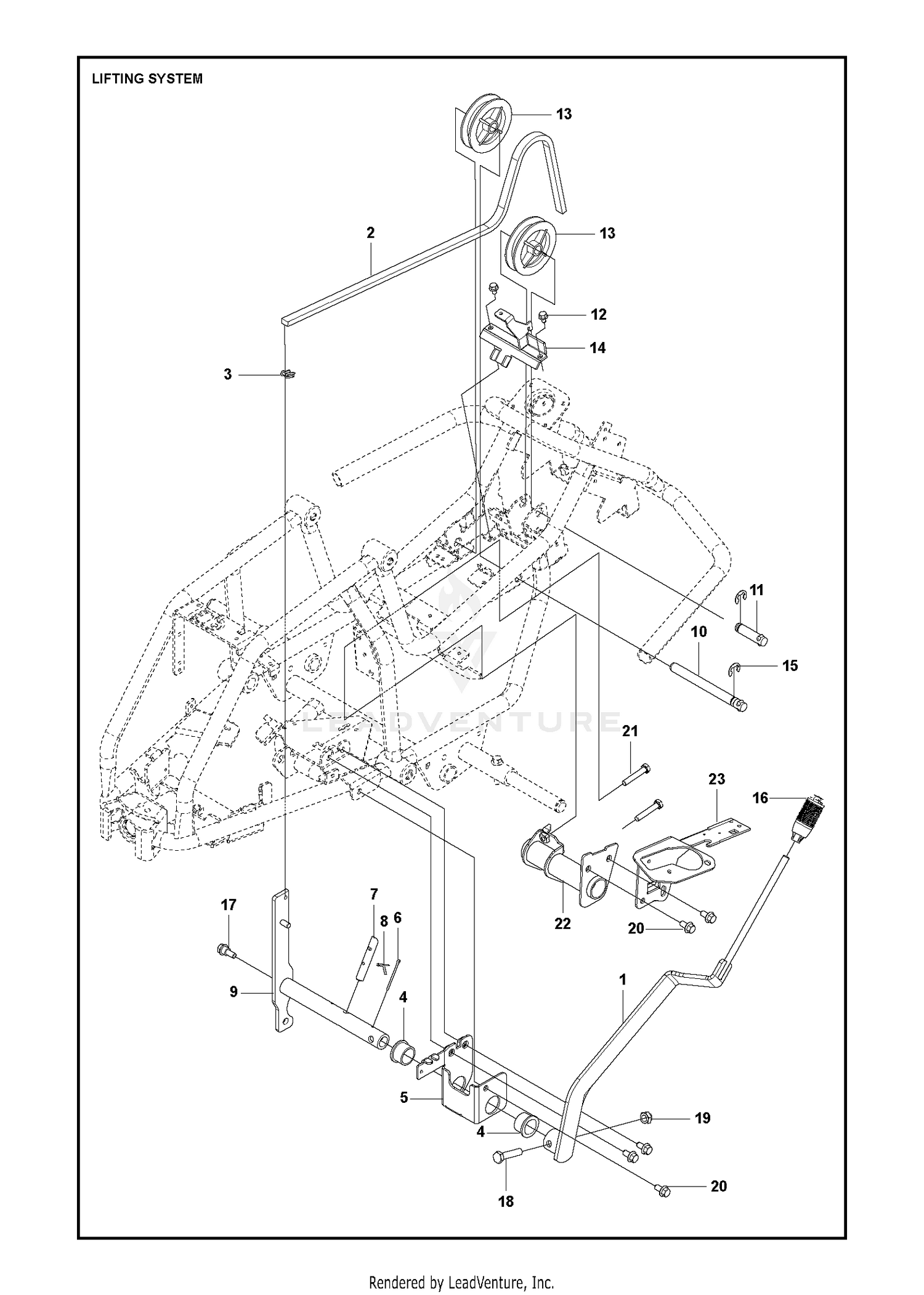

MOWER LIFT / DECK LIFT
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 580389001 | LEVER ASSY Price: $44.99 |
| 2 | 506554611 | CHAIN Price: $24.99 |
| 3 | 506554701 | LINK Price: $4.99 |
| 4 | 584871301 | BEARING FLANGE Price: $4.99 |
| 5 | 525404701 | BRACKET ASSY Price: $22.99 |
| 6 | 721618701 | COTTER PIN Price: $3.99 |
| 7 | 525406601 | PIN Price: $7.99 |
| 8 | 721618301 | Split Pin Price: $1.99 |
| 9 | 522560202 | NEEDS DESCRIPTION Price: Call Us |
| 10 | 525404401 | SHAFT Price: $8.99 |
| 11 | 525404501 | SHAFT Price: $4.99 |
| 12 | 725236461 | SCREW Price: $2.99 |
| 14 | 574315801 | BRACKET Price: $7.99 |
| 15 | 735311820 | Lock Ring Price: $1.99 |
| 16 | 588164101 | Handles Price: $11.99 |
| 17 | 506597401 | BOLT Price: $5.99 |
| 18 | 725250071 | SCREW This part replaces 725250051. Price: $2.99 |
| 19 | 732212001 | NUT Price: $3.99 |
| 20 | 506570103 | BOLT Price: $3.99 |
| 21 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 22 | 574369702 | NEEDS DESCRIPTION Price: Call Us |
| 23 | 595967901 | NEEDS DESCRIPTION Price: Call Us |
